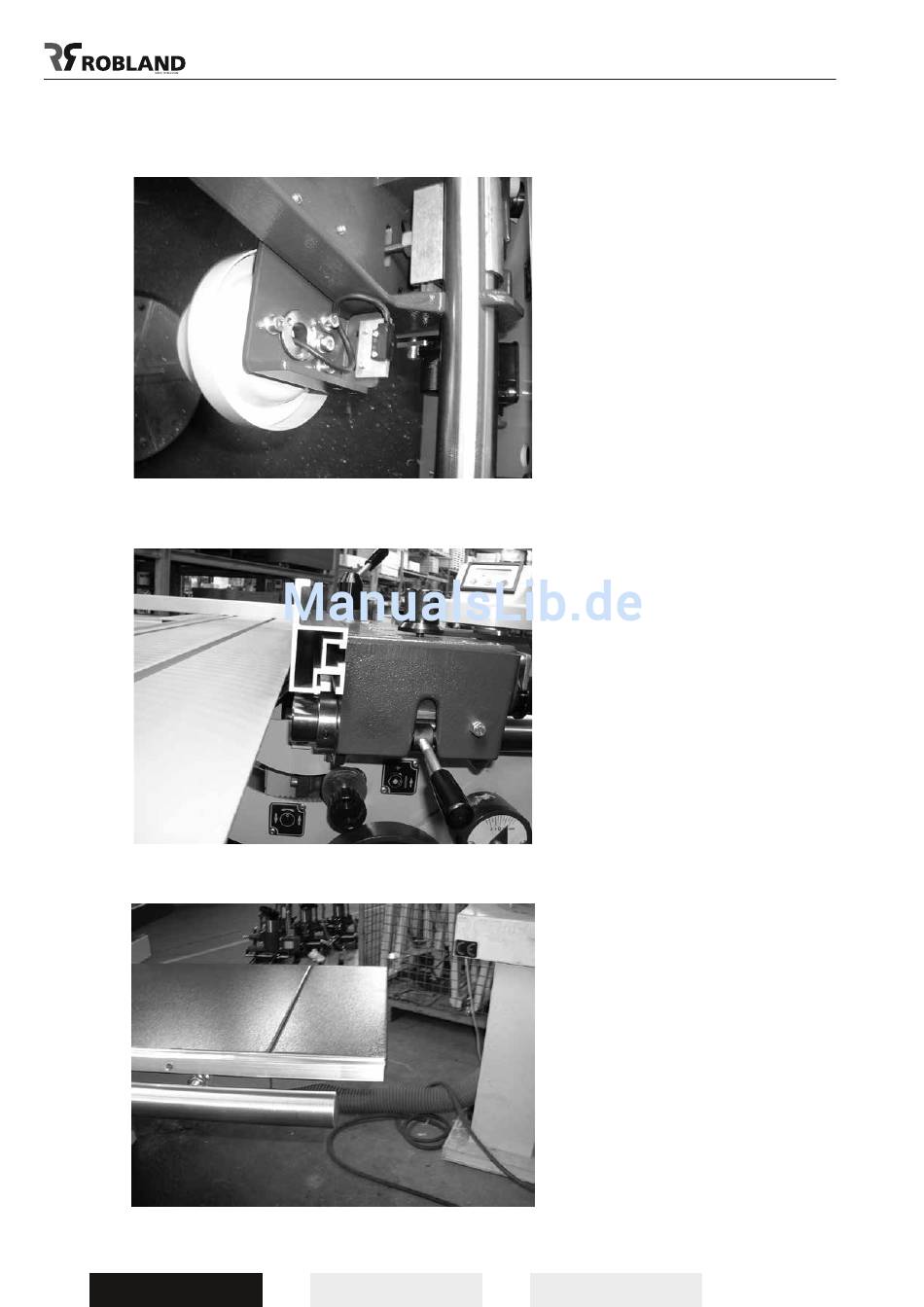

Put the digital read-out onto the parallel fence support block using the 2 holes already
drilled. On older machines these 2 holes need to be drilled.
Now put the alu profile holding the magnetic strip onto the saw table at 1 mm below the table's front
edge.
Make sure the sensor is put in the middle of the magnetic strip, and the distance between strip and
sensor is set at 0,5 mm maximum.
Make sure the sensor stays at 0,5 mm over the entire lenght of the magnetic strip.
The little table extension as supplied, makes it possible as before to cut upto 1380 mm.
It will also act as a protection for the magnetic tape.
