Height setting of main sawblade
and scorer sawblade

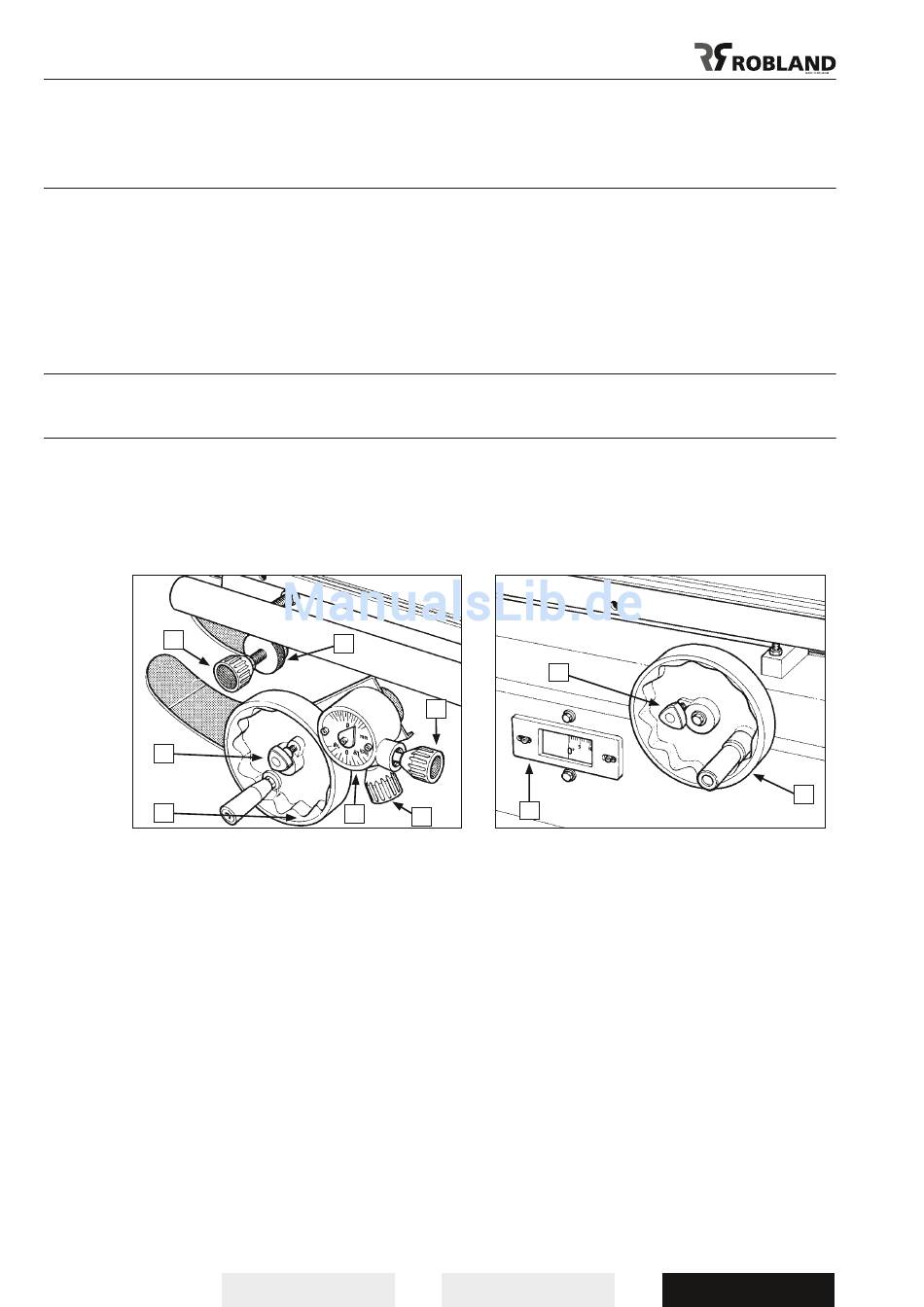

Main sawblade height setting is done by turning the handwheel (1). After the sawblade is set at the
desired cutting depth the handwheel has to be locked with the locking knob (2).
One turn of this handwheel equals 5 mm of height setting.
The height setting of the scorer sawblade is done by turning the knob (4), and locked by
turning the wheelnut (3). One turn of this height setting knob equals 3 mm.
The maximum cutting depth using a main sawblade diameter of 400 mm is 125 mm and for the scorer
4,5 mm using a sawblade diameter of 100 mm.

Tilting of the sawunit

By turning the handwheel (2) the whole sawunit can be tilted and set at any angle between 90° and
45°. After setting, lock the sawunit in this position using the locking knob (1).
The angle can be read at the large scale (3).
Both 45° and 90° positive stops are factory set and need no adjustment. After setting the
sawunit at the desired cutting angle the cutting depth of the scorer must be set again.
4
2
1
Fig.11
Z3200 10-V0713
(Fig.11)
(Fig.12)
3
5
7
6
Fig.12
