III.4 INSTALLATION ON BASES DEEP UP TO 810mm

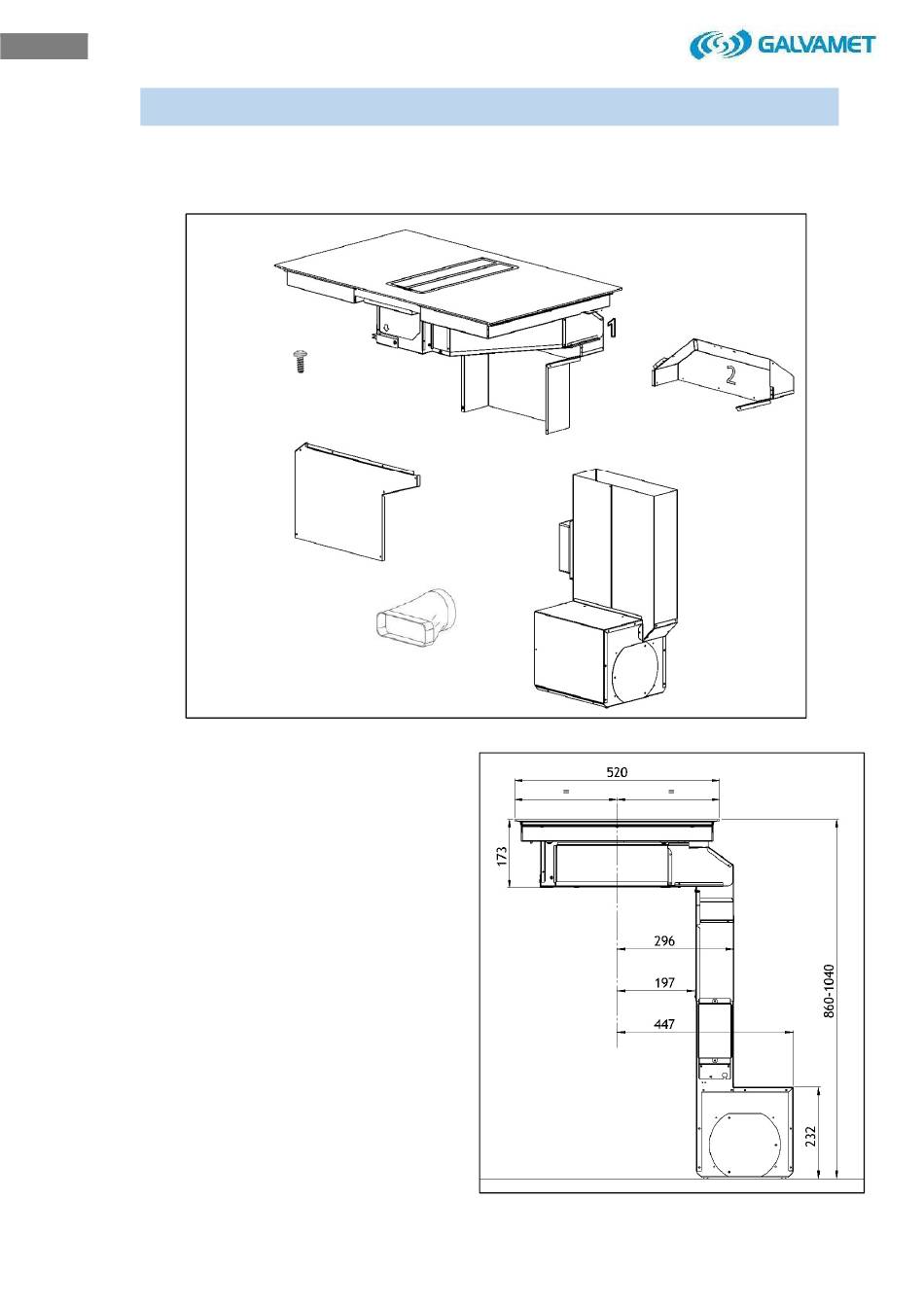

In the box the technician will find the elements shown on Fig. 3.6.
Elements must be mounted carefully following the procedure described in this guide.
The replacement fitting identified with "2" by
a marking on the back is not useful in this
installation.
The device dimensions after installation are
shown at Fig. 3.7
The dimensions refer to the axis of the
induction hob
configuration of the piece of furniture, of the
drawers that may be present and of their own
dimensions.
7x
and involve a specific
Fig. 3.7
Fig. 3.6
