III.3.c ASPIRATION UNIT ASSEMBLY

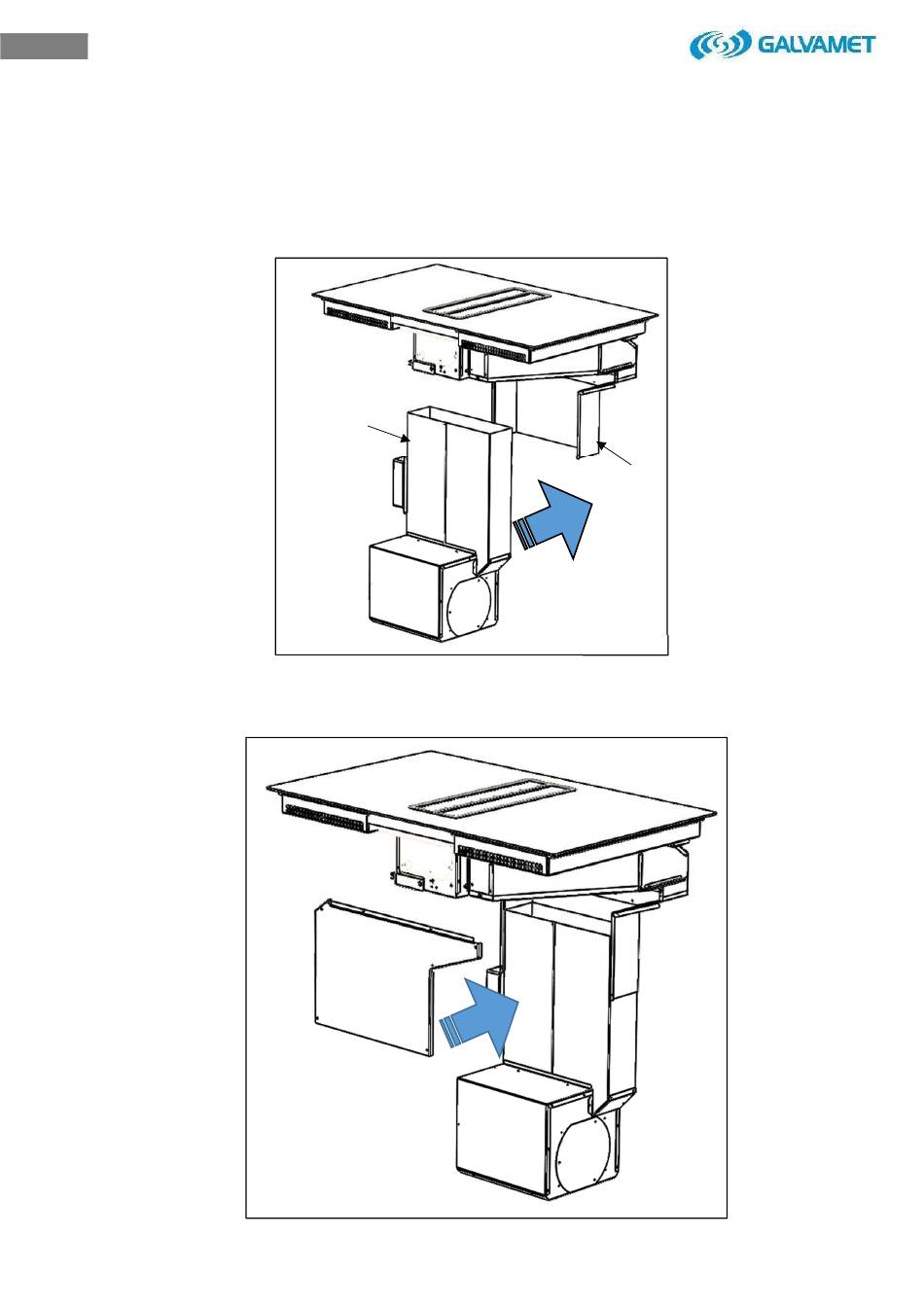

After having determined the aspiration box position, proceed by positioning it inside the
hole of the kitchen base previously cut (Fig. 3.29), making sure to recess the superior part
(Fig. 3.17-X) to the fix joint (Fig. 3.17-Y).
Proceed by fixing the cover to the vertical duct (Fig.3.17-b ), use the special screws
included.
X
Fig.3.17-b
Y
Fig. 3.17
