EN

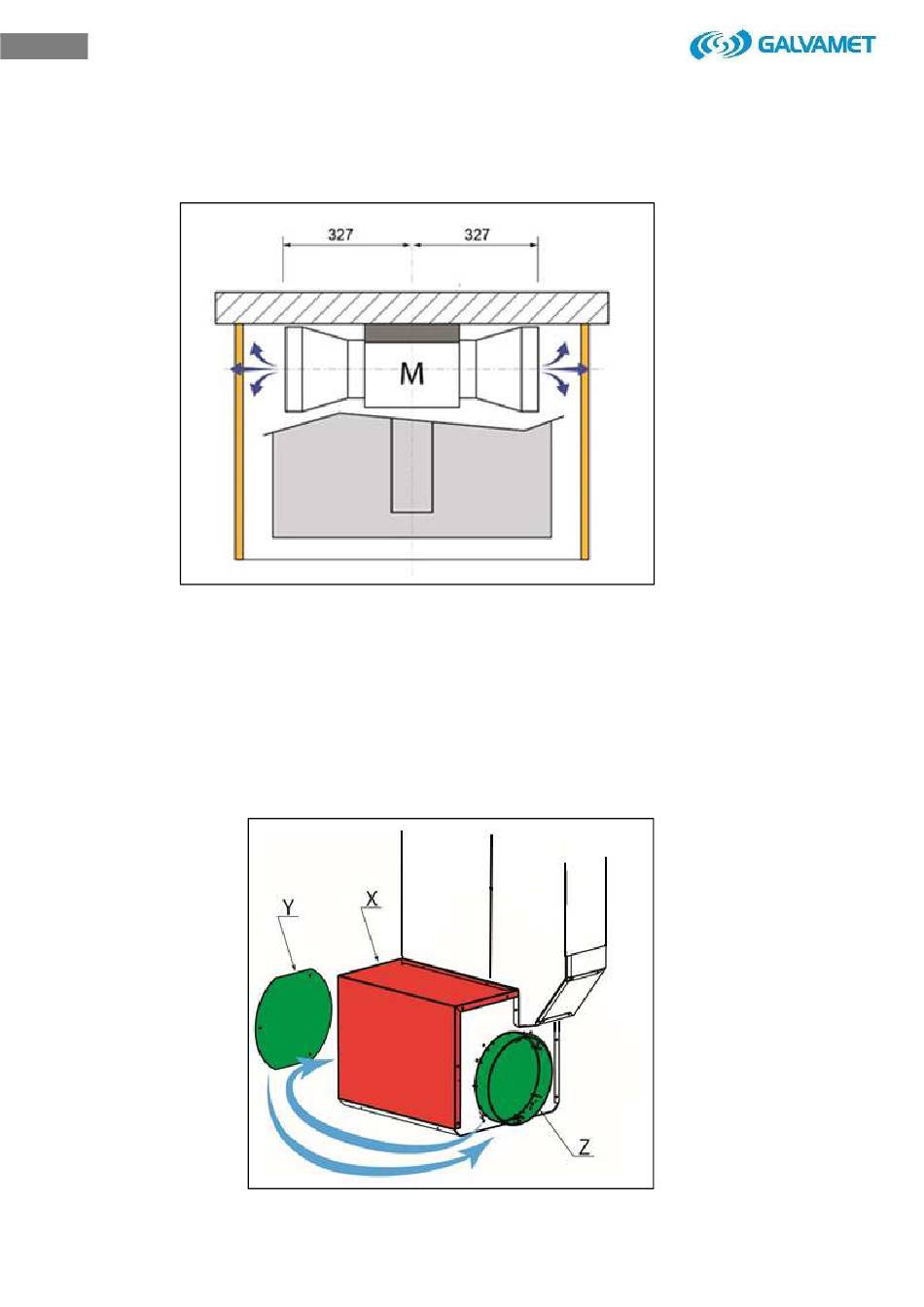

The next step is to determine the exit of the fumes according with the installation needs
(Fig. 3.15).
Fig. 3.15
The air exit can be on the left or on the right of the kitchen base. To carry this
operation out it is necessary to remove the covers (Fig. 3.16-X), (Fig. 3.16-Y), invert
the motor exit. Then proceed with the same operations backwords, fix the cover
(Fig. 3.16-Y) on the opposite side and install the covering. (Fig. 3.16-X).
The air exit can be rear or front by connecting a bend pipe not included.
Fig. 3.16
