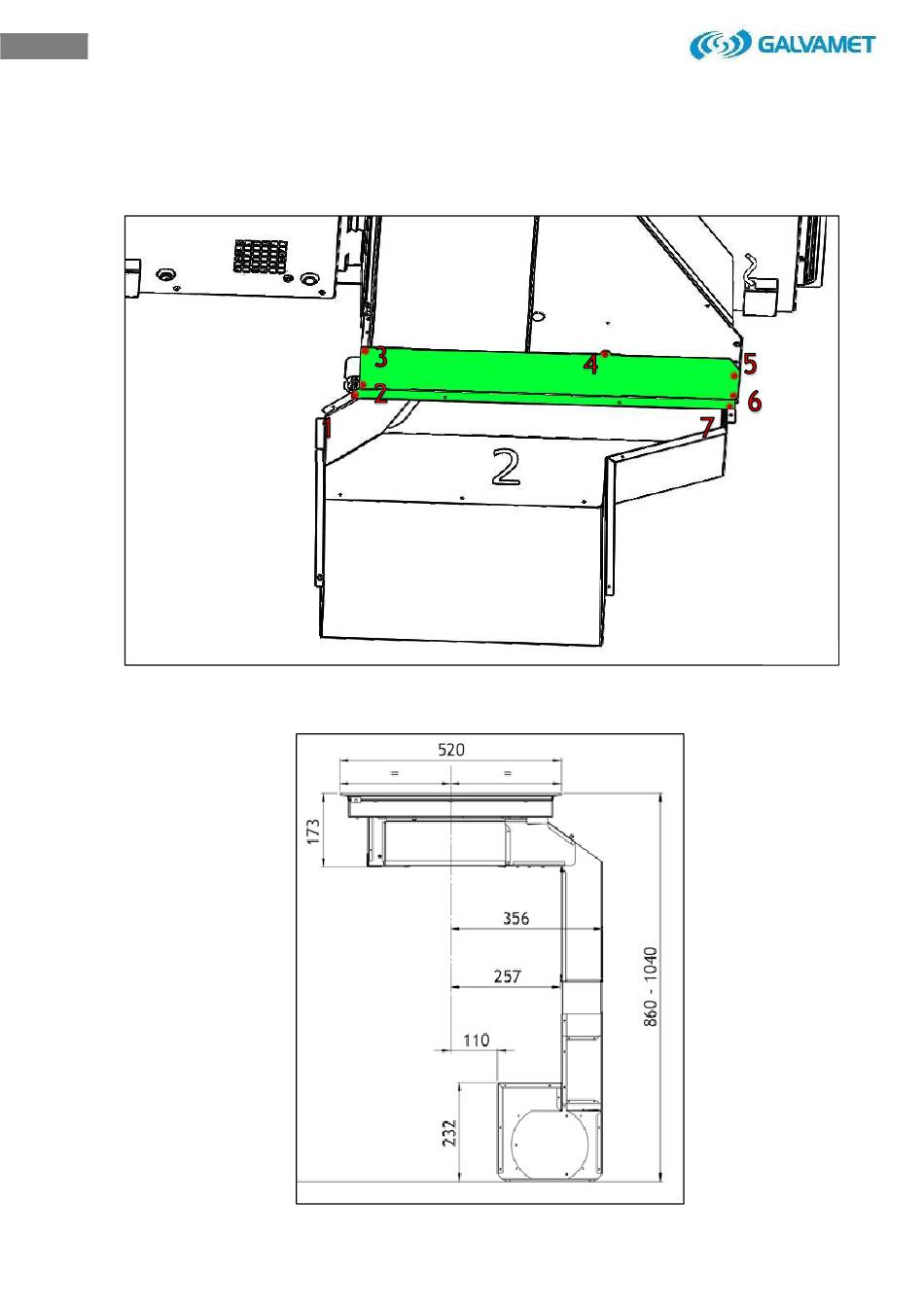

At this point reassemble the angular cover in the rearmost position so as to cover
the gap left by the new connection and screw the seven screws indicated in Fig.
3.27.
Once the new joint is mounted the dimensions after complete installation will be the
ones shown at Fig. 3.28
Fig. 3.28
Fig. 3.27
