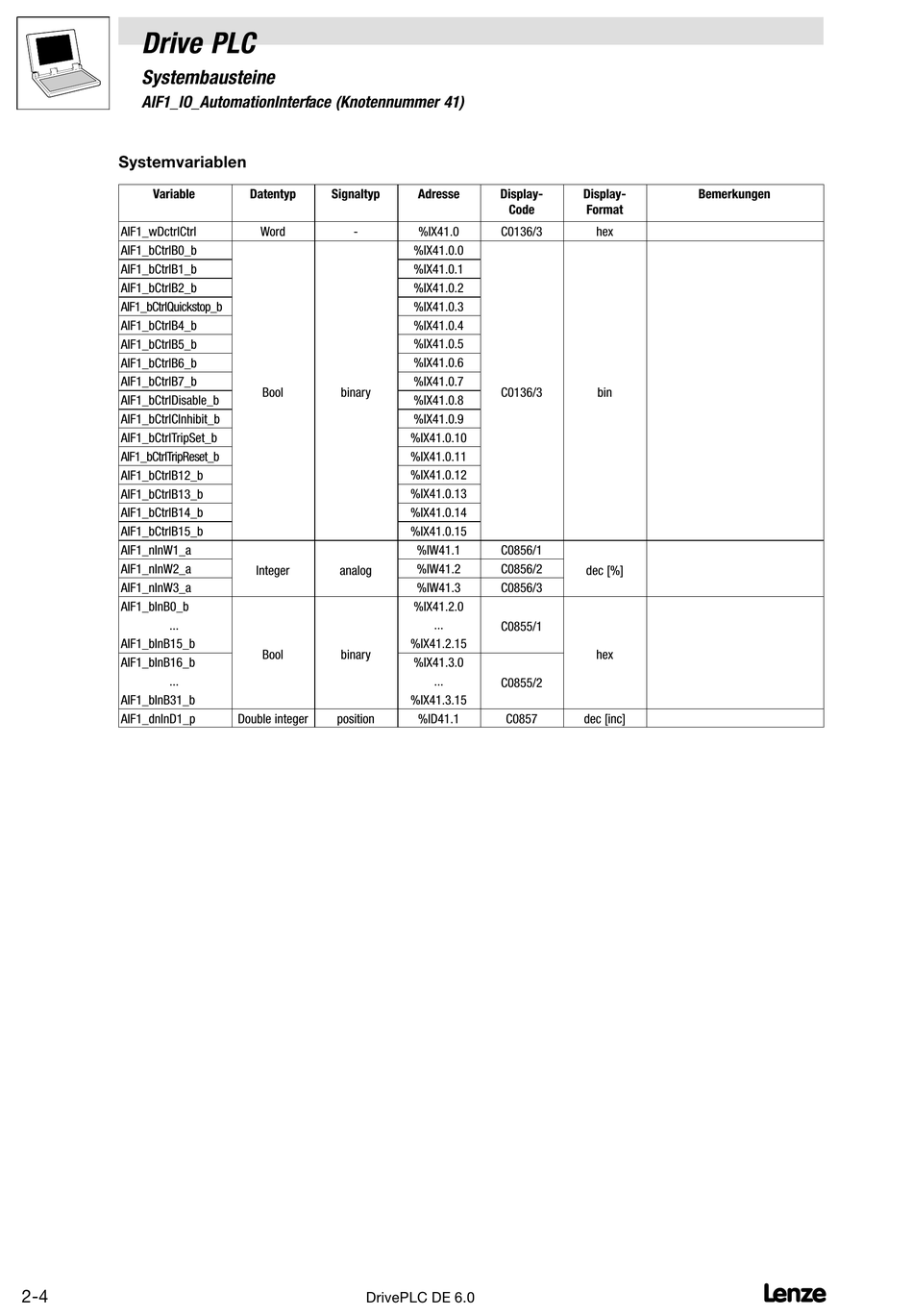

Drive PLC
Systembausteine
2.2
AIF1_IO_AutomationInterface (Knotennummer 41)
Systemvariablen
Variable
AIF1_wDctrlCtrl
AIF1_bCtrlB0_b
AIF1_bCtrlB1_b
AIF1_bCtrlB2_b
AIF1_bCtrlQuickstop_b
AIF1_bCtrlB4_b
AIF1_bCtrlB5_b
AIF1_bCtrlB6_b
AIF1_bCtrlB7_b
AIF1_bCtrlDisable_b
AIF1_bCtrlCInhibit_b
AIF1_bCtrlTripSet_b
AIF1_bCtrlTripReset_b
AIF1_bCtrlB12_b
AIF1_bCtrlB13_b
AIF1_bCtrlB14_b
AIF1_bCtrlB15_b
AIF1_nInW1_a
AIF1_nInW2_a
AIF1_nInW3_a
AIF1_bInB0_b
...
AIF1_bInB15_b
AIF1_bInB16_b
...
AIF1_bInB31_b
AIF1_dnInD1_p
2−4
Datentyp
Signaltyp
Word
−
Bool
binary
Integer
analog
Bool
binary
Double integer
position
DrivePLC DE 6.0
Adresse
Display−
Code
%IX41.0
C0136/3
%IX41.0.0
%IX41.0.1
%IX41.0.2
%IX41.0.3
%IX41.0.4
%IX41.0.5
%IX41.0.6
%IX41.0.7
C0136/3
%IX41.0.8
%IX41.0.9
%IX41.0.10
%IX41.0.11
%IX41.0.12
%IX41.0.13
%IX41.0.14
%IX41.0.15
%IW41.1
C0856/1
%IW41.2
C0856/2
%IW41.3
C0856/3
%IX41.2.0
...
C0855/1
%IX41.2.15
%IX41.3.0
...
C0855/2
%IX41.3.15
%ID41.1
C0857
Display−
Bemerkungen
Format
hex
bin
dec [%]
hex
dec [inc]
L
