Operating Manual
1
·
⑴

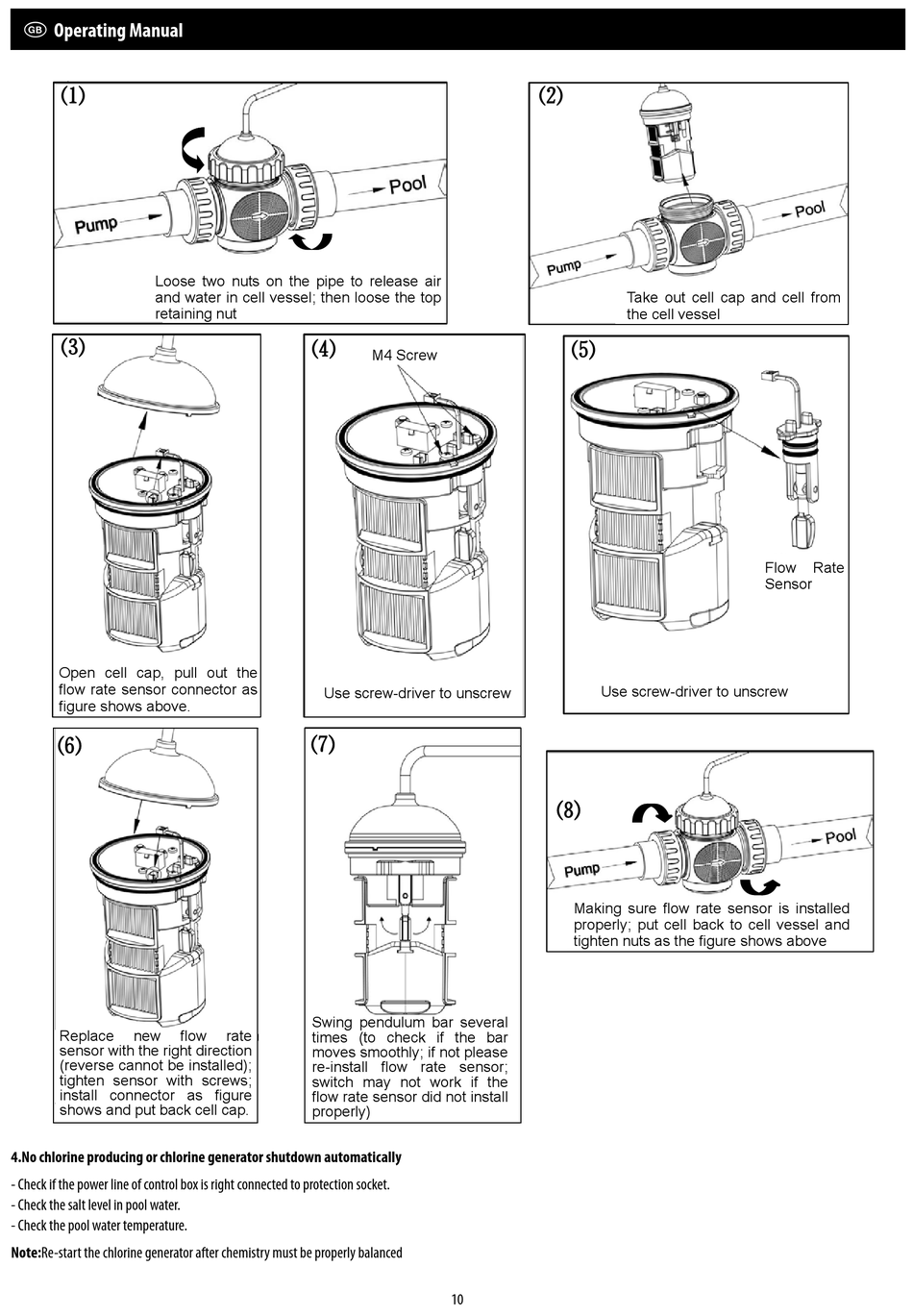

Loose two nuts on the pipe to release air
and water in cell vessel; then loose the top
retaining nut
⑶
Open cell cap, pull out the
flow rate sensor connector as
figure shows above.
⑹
Replace
new
flow
sensor with the right direction
(reverse cannot be installed);
tighten sensor with screws;
install connector as figure
shows and put back cell cap.
4.No chlorine producing or chlorine generator shutdown automatically
4.No chlorine producing or chlorine generator shutdown automatically
- Check if the power line of control box is right connected to protection socket.
-Check if the power line of control box is right connected to protection socket.
- Check the salt level in pool water.
-Check the salt level in pool water.
- Check the pool water temperature.
-Check the pool water temperature.
Note:Re-start the chlorine generator after chemistry must be properly balanced
Note:
Re-start the chlorine generator after chemistry must be properly balanced
⑷
M4 Screw
Use screw-driver to unscrew
⑺
Swing pendulum bar several
rate
times (to check if the bar
moves smoothly; if not please
re-install flow rate sensor;
switch may not work if the
flow rate sensor did not install
properly)
⑵
⑸
Use screw-driver to unscrew
⑻
Making sure flow rate sensor is installed
properly; put cell back to cell vessel and
tighten nuts as the figure shows above
10
16
Take out cell cap and cell from
the cell vessel
Flow
Sensor
Rate
