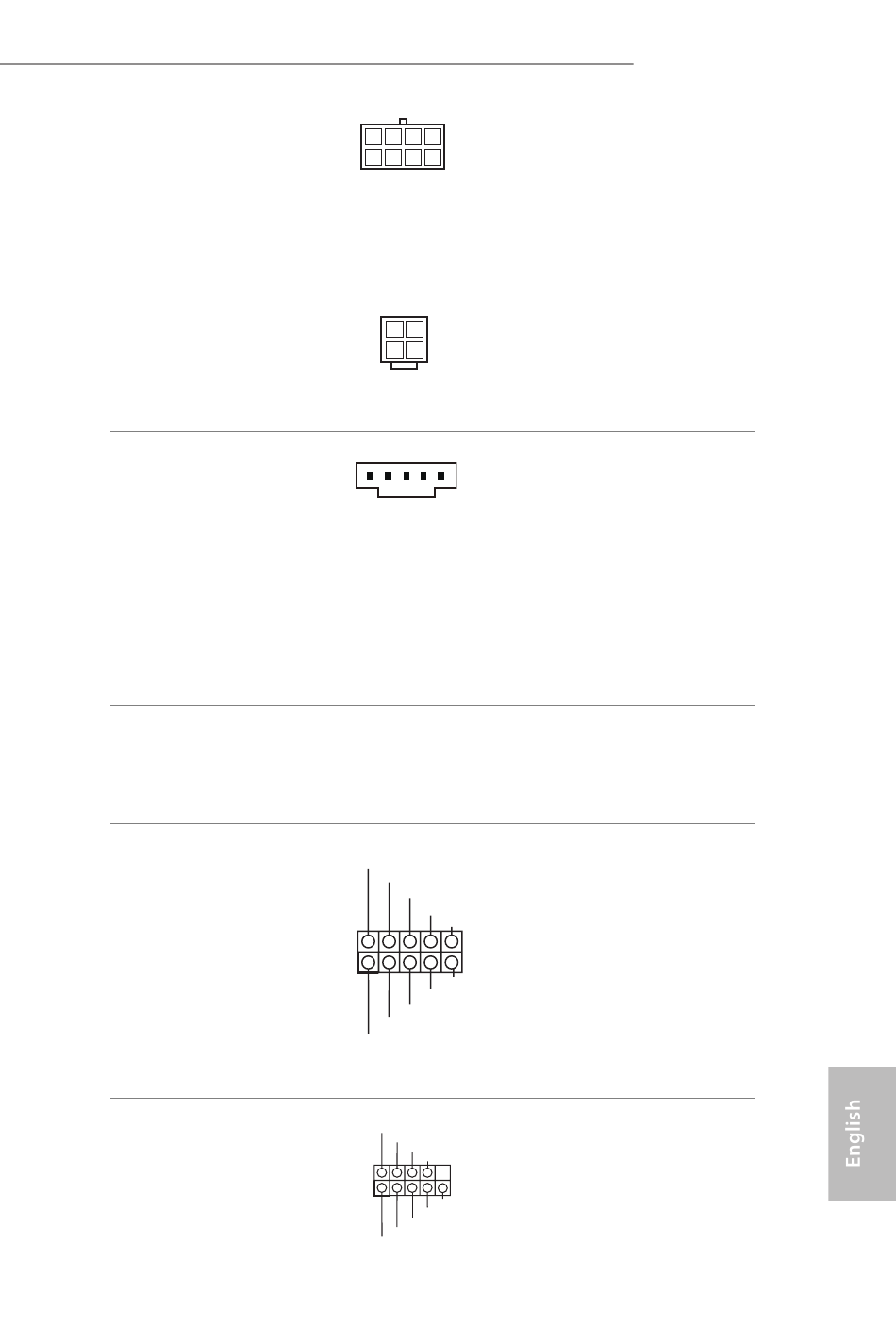

ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.1, No. 2)
(4-pin ATX12V2)
(see p.1, No. 1)
Thunderbolt AIC
Connector
(5-pin TBT1)
(see p.1, No. 46)
*The type of Thunderbolt AIC connector depends on the Thunderbolt AIC cable. If your
Thunderbolt AIC cable supports 5-pin, please install it to 5-pin TBT1 connector. If your
Thunderbolt AIC cable supports 10-pin, please install it to 10-pin TBT2 connector.
Thunderbolt AIC
Connector
(10-pin TBT2)
(see p.1, No. 45)
Serial Port Header
(9-pin COM1)
(see p.1, No. 40)
This motherboard
8 5
provides an 8-pin ATX
12V power connector and
1
4
a 4-pin ATX 12V power
connector. To use a 4-pin
ATX power supply, please
plug it along Pin 1 and Pin
5.
*The 4-pin ATX 12V
power connector is used
to supply additional power
to the motherboard.
Please connect a Thunderbolt™
add-in card (AIC) to this
connector via the GPIO cable.
*Please install the Thunderbolt™
AIC card to PCIE2 (default
slot).
*Only one Thunderbolt AIC
Card is supported on this
motherboard.
Please connect a Thunderbolt™
DUMMY
I2C_DATA
add-in card (AIC) to this
I2C_CLOCK
connector via the GPIO cable.
IRQ
GND
*Please install the Thunderbolt™
AIC card to PCIE2 (default
1
slot).
GND
SLP_S4#
*Only one Thunderbolt AIC
SLP_S3#
PLUG_EVENT
Card is supported on this
FRC_PWR
motherboard.
This COM1 header
RRXD1
DDTR#1
DDSR#1
supports a serial port
CCTS#1
module.
1
RRI#1
RRTS#1
GND
TTXD1
DDCD#1
Z170 OC Formula
25
