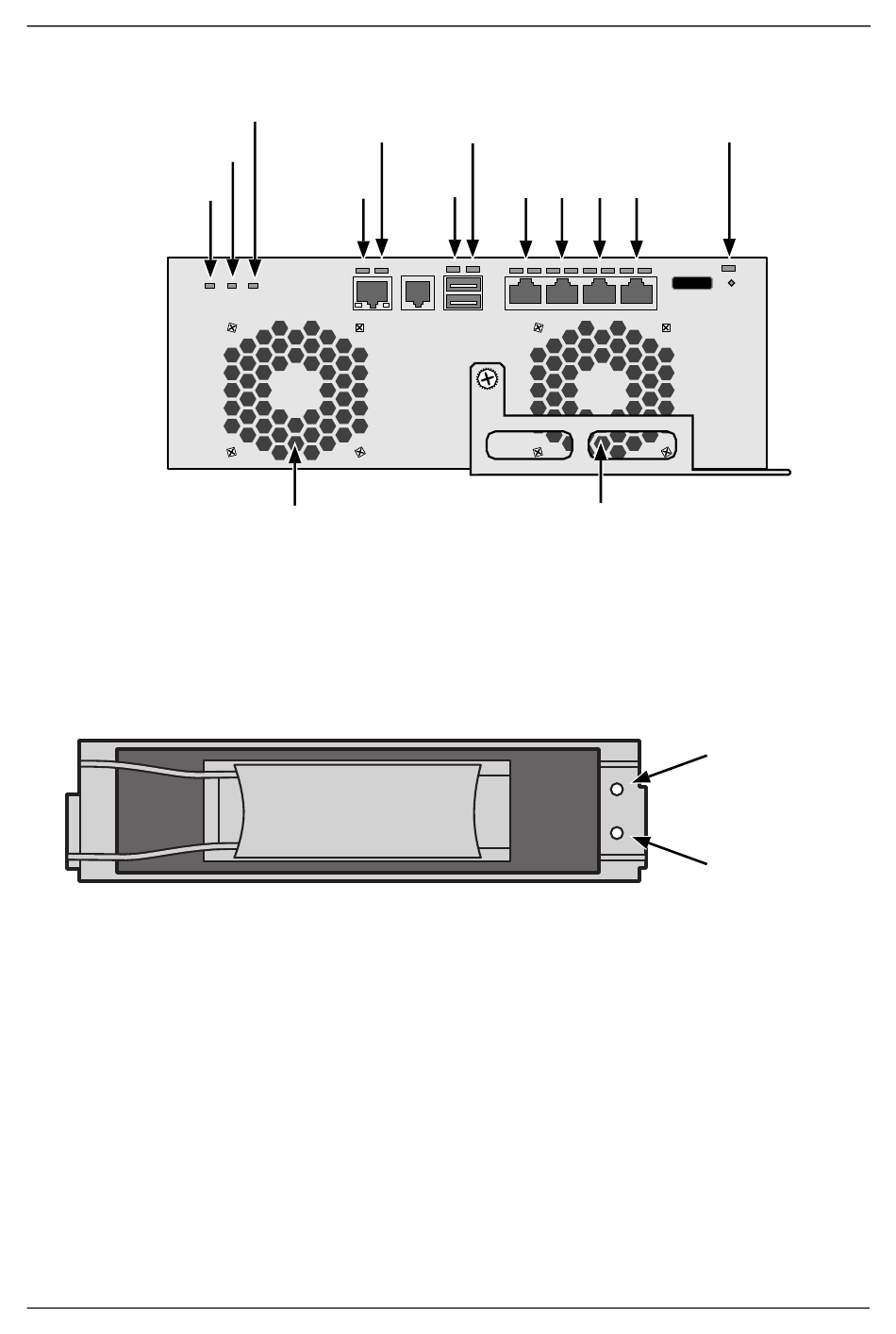

Figure 17.VessRAID Controller LEDs
Fan 1
Battery

Disk Drive LEDs

There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive's current condition.
Figure 18.VessRAID disk drive carrier LEDs
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark. The Power/Activity LED flashes during
drive activity.
The Disk Status LED displays Green when a drive is configured.
LCD Panel
The LCD panel activates approximately 35 seconds after you switch on the
VessRAID's power supply.
At first, the LCD screen displays
Fan 2 Dirty
Cache
Controller
Status
Fan 1
USB 2
iSCSI Ports
USB 1
1 2
System is Initializing
