VessRAID 1000f, 1000i, 1000s Series Quick Start Guide

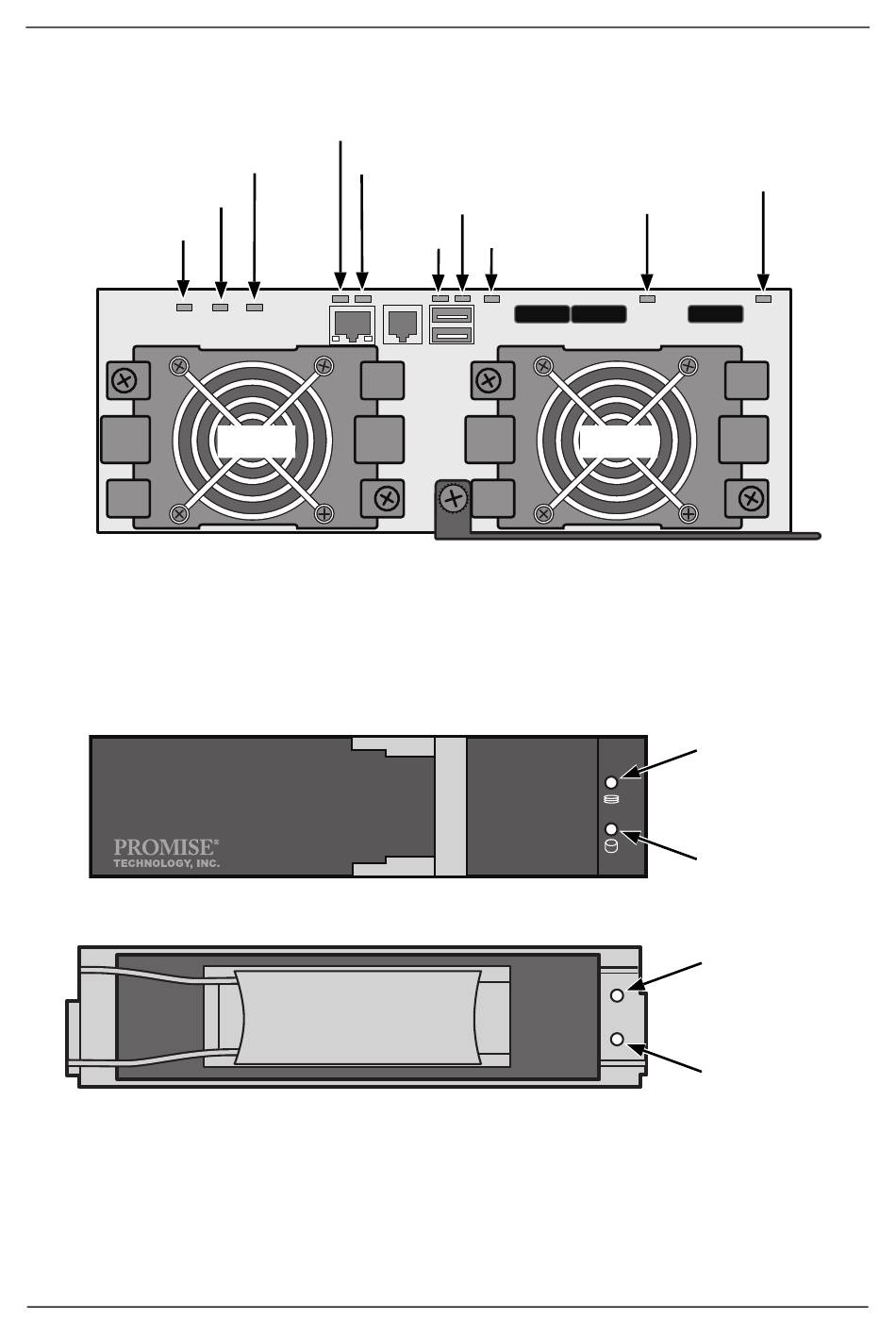

Figure 30.VessRAID SAS Controller LEDs
Controller Status
Fan 1
Battery

Disk Drive LEDs

There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive's current condition.
Figure 31.VessRAID drive carrier LEDs
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark. The Power/Activity LED flashes during
drive activity.
The Disk Status LED displays Green when a drive is configured.
Fan 2
Dirty Cache
Fan 1
Plus carrier
Original carrier
USB 2 SAS IN Port 2
USB 1
SAS IN Port 1
32
JBOD Expansion
16- and 12-bay
subsystems
Fan 2
Disk Status
Power/Activity
Disk Status
Power/Activity
