VessRAID 1000i Series Quick Start Guide
6. Place the VessRAID subsystem onto the rails.
7. Secure the VessRAID subsystem to the rack through each handle, using the
attaching screws from your rack system.

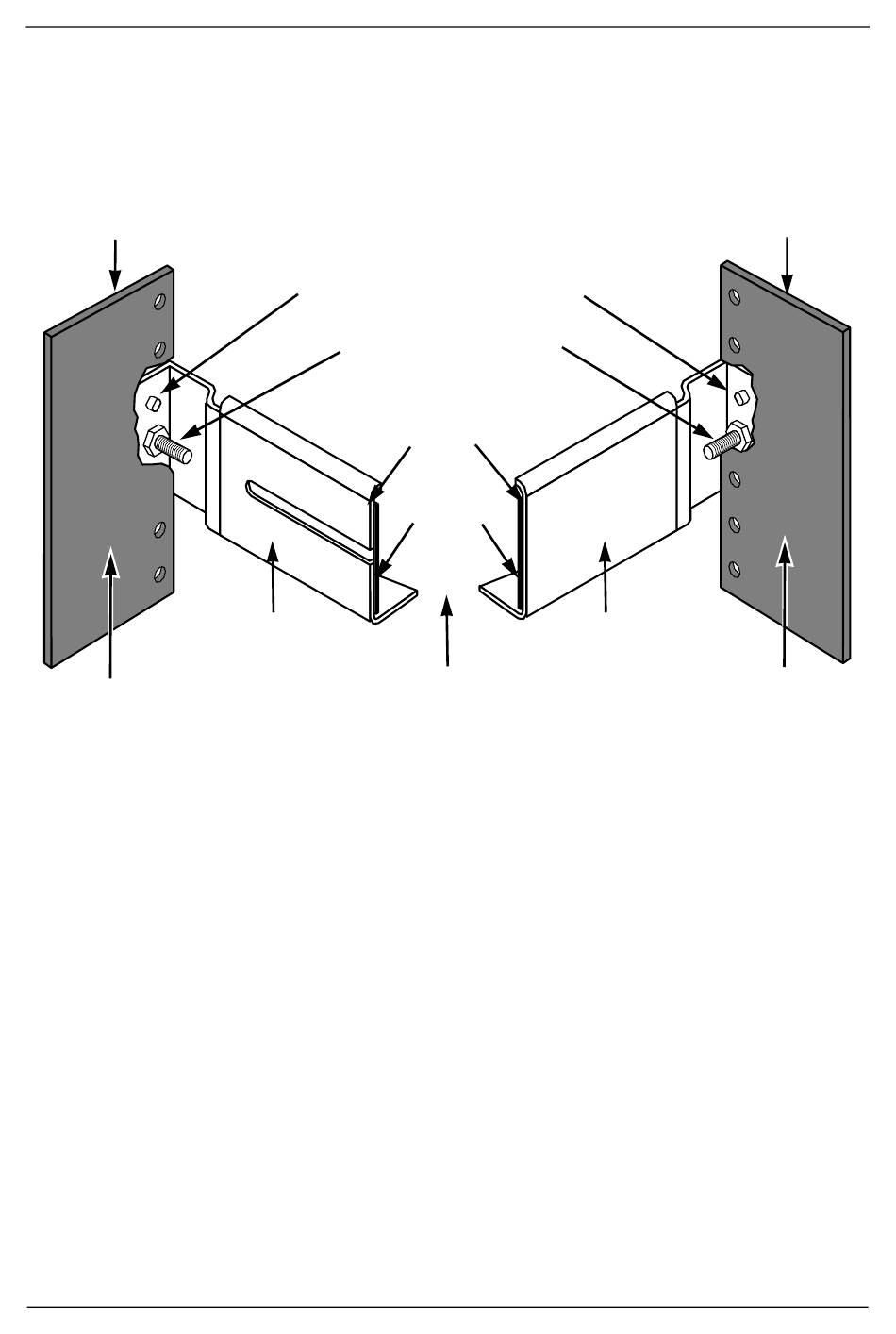

Figure 7. Rack mount assembly diagram
Rack front post
Inside of post
This completes rack mounting. Go to "Task 4: Installing Disk Drives" on page 9.
Locating pins (2 on each end)
Rail attaching screws
(not included)
Front rail
Rail adjustment screw
(center, outside of rail)
Flange
Support
Rear rail
8
Rack back post
Inside of post
