5 Technical Information
Oil and Filter Cartridge Replacement
Procedures

Oil and Filter Cartridge Replacement Procedures

Oil Change Procedure

1.

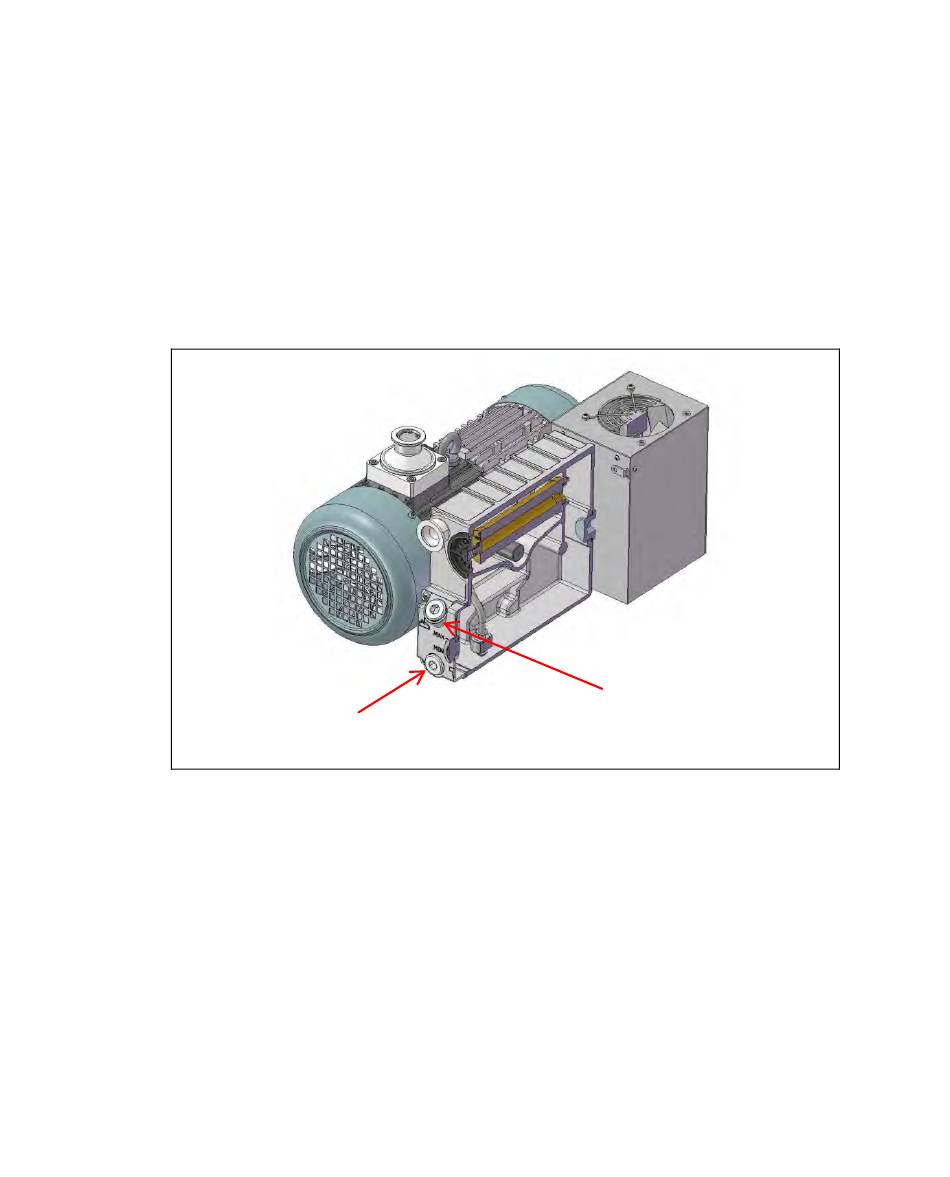

Figure 6
2.
3.
4.
66/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01
Place a tank for waste oil under the oil drain plug.
Oil drain Cap
Unscrew slowly the oil drain cap rotating it anti-clock wise using
a 10mm hex key. Let the oil flow out. In the meantime clean the
inside of the drain plug.
After closing the drainage hole with its plug make the pump
perform a number of turns, giving it a brief current pulse, so as to
let residual oil in the pump chambers flow out. Then drain off the
residual oil again.
After the oil has been drained, close the drain plug tight; take the
tank of waste oil away and clean thoroughly, using rags of cotton
or other suitable material to dry.
Fill oil cap
(E)
