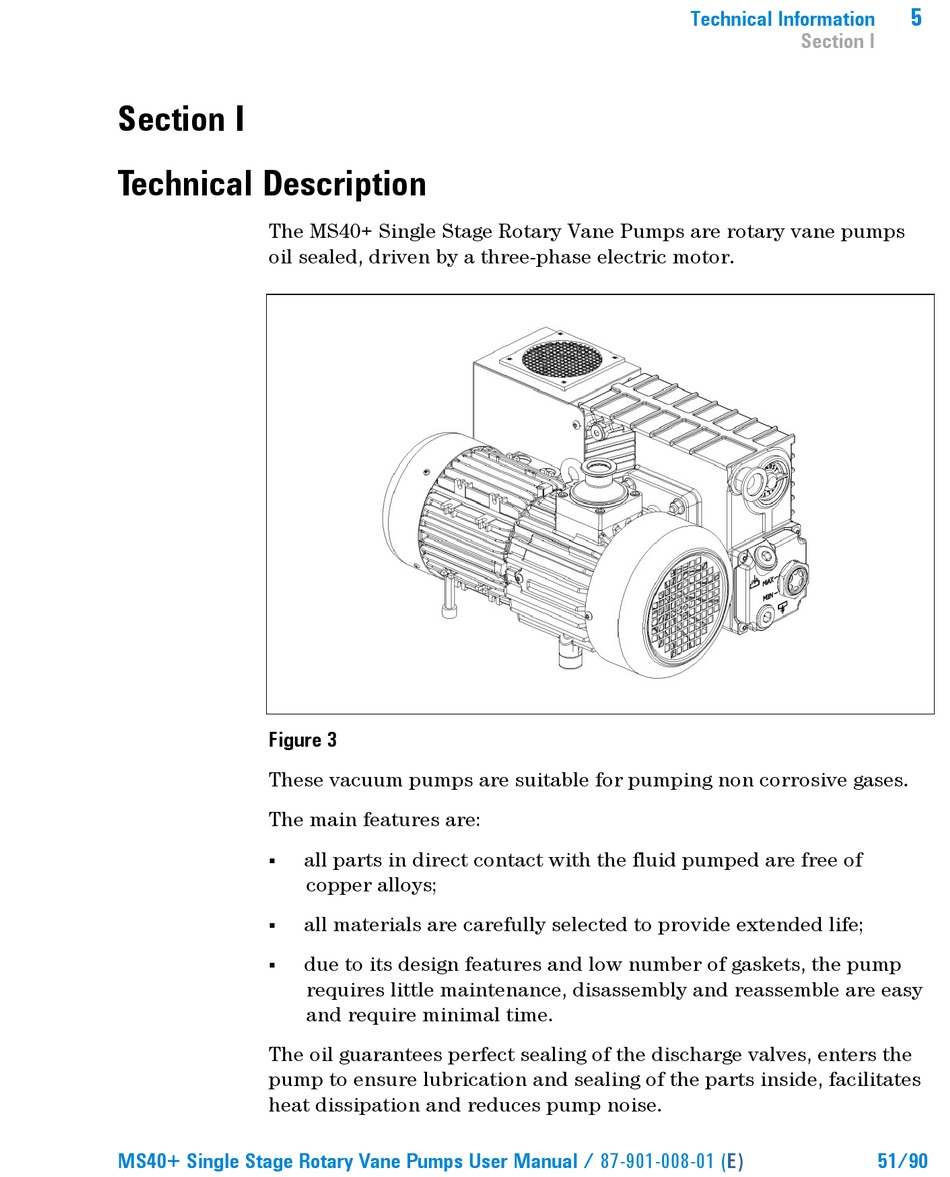

Section I

Technical Description

The MS40+ Single Stage Rotary Vane Pumps are rotary vane pumps
oil sealed, driven by a three-phase electric motor.
Figure 3
These vacuum pumps are suitable for pumping non corrosive gases.
The main features are:



The oil guarantees perfect sealing of the discharge valves, enters the
pump to ensure lubrication and sealing of the parts inside, facilitates
heat dissipation and reduces pump noise.
MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01
all parts in direct contact with the fluid pumped are free of
copper alloys;
all materials are carefully selected to provide extended life;
due to its design features and low number of gaskets, the pump
requires little maintenance, disassembly and reassemble are easy
and require minimal time.
