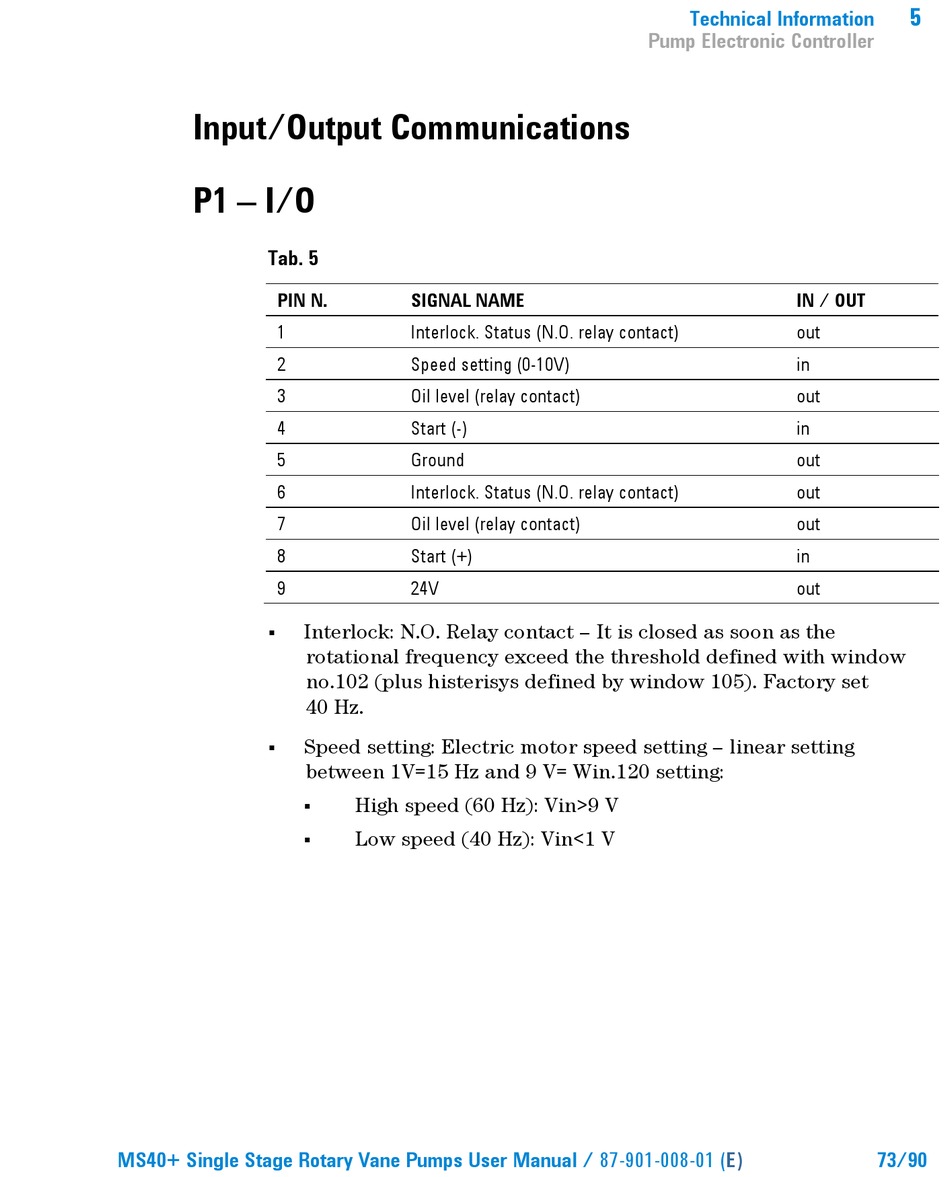

Input/Output Communications

P1 – I/O
Tab. 5
PIN N.
1
2
3
4
5
6
7
8
9


MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01
SIGNAL NAME
Interlock. Status (N.O. relay contact)
Speed setting (0-10V)
Oil level (relay contact)
Start (-)
Ground
Interlock. Status (N.O. relay contact)
Oil level (relay contact)
Start (+)
24V
Interlock: N.O. Relay contact – It is closed as soon as the
rotational frequency exceed the threshold defined with window
no.102 (plus histerisys defined by window 105). Factory set
40 Hz.
Speed setting: Electric motor speed setting – linear setting
between 1V=15 Hz and 9 V= Win.120 setting:
High speed (60 Hz): Vin>9 V

Low speed (40 Hz): Vin<1 V

