Mount the elevator (1) and the rudder (2) using the same procedure as described
in Chapter 8. a) "Mounting the Aileron".
f) Assembling the Tank
Place a fuel hose onto each of the three connections.
Important:
Both of the two upper hose connections must be opened with a
drill hole before assembling the hoses.
Hose (1) is the overflow and will subsequently have to be connected to the
pressure connection of the muffler.
Hose (2) is used to fuel the model plane. We recommend you connect a return
valve.
Hose (3) is connected to the tank oscillator and will subsequently have to be
connected to the carburettor.
Push the tank through the wing cutout and into the fuselage nose with the
hoses facing forward until it comes into contact with the motor mounting plate.
Please note that the overflow hose (1) must be right at the top in
normal flying position.

g) Assembling the Motor Carrier

Attach the motor carrier (1) to the motor mounting plate with the supplied screws
(2). Use a suitable screw resin lacquer to fix the screws in place.
Fill in the open hole to the tank (3) with silicone.

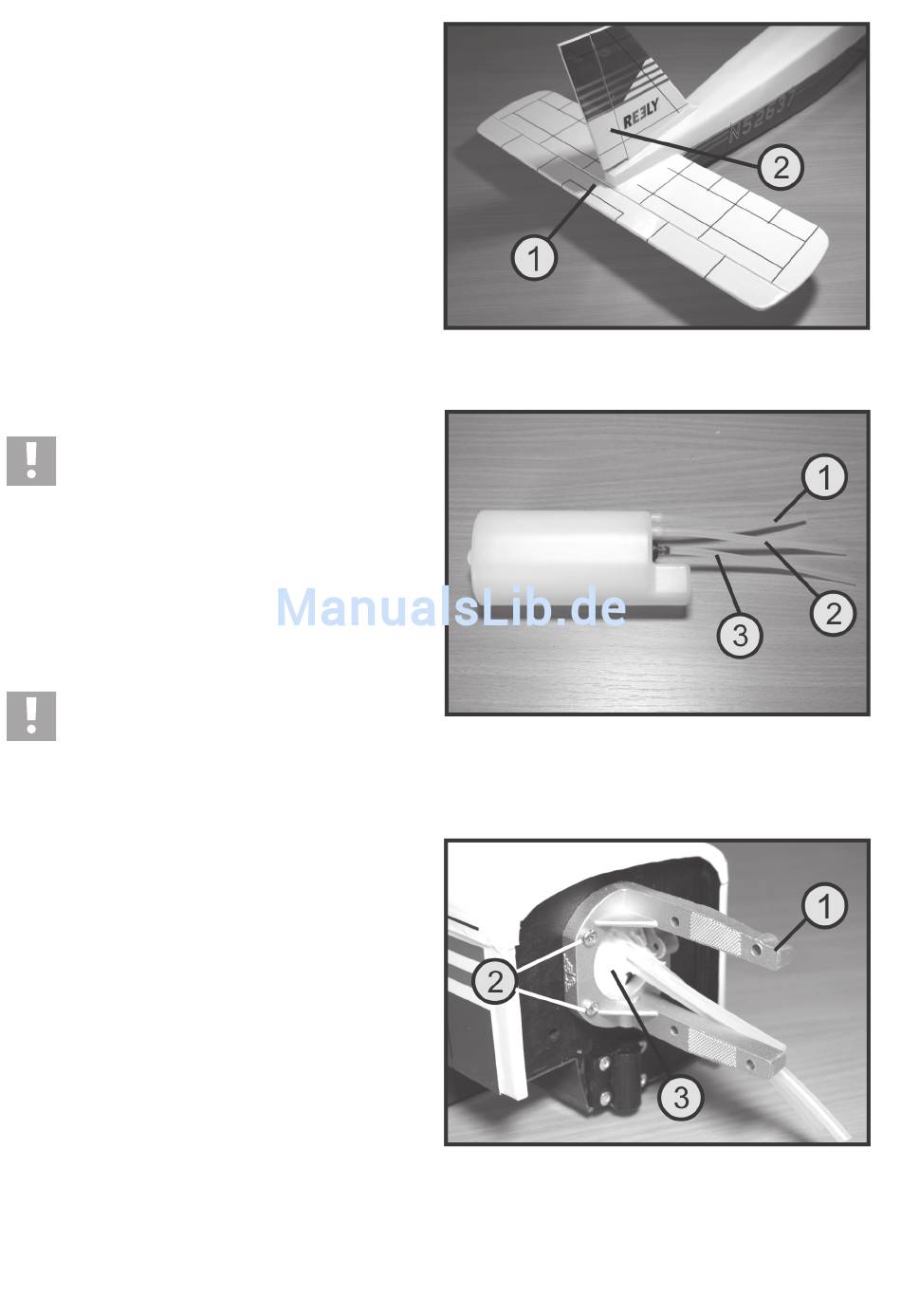

Figure 18
Figure 19
Figure 20
