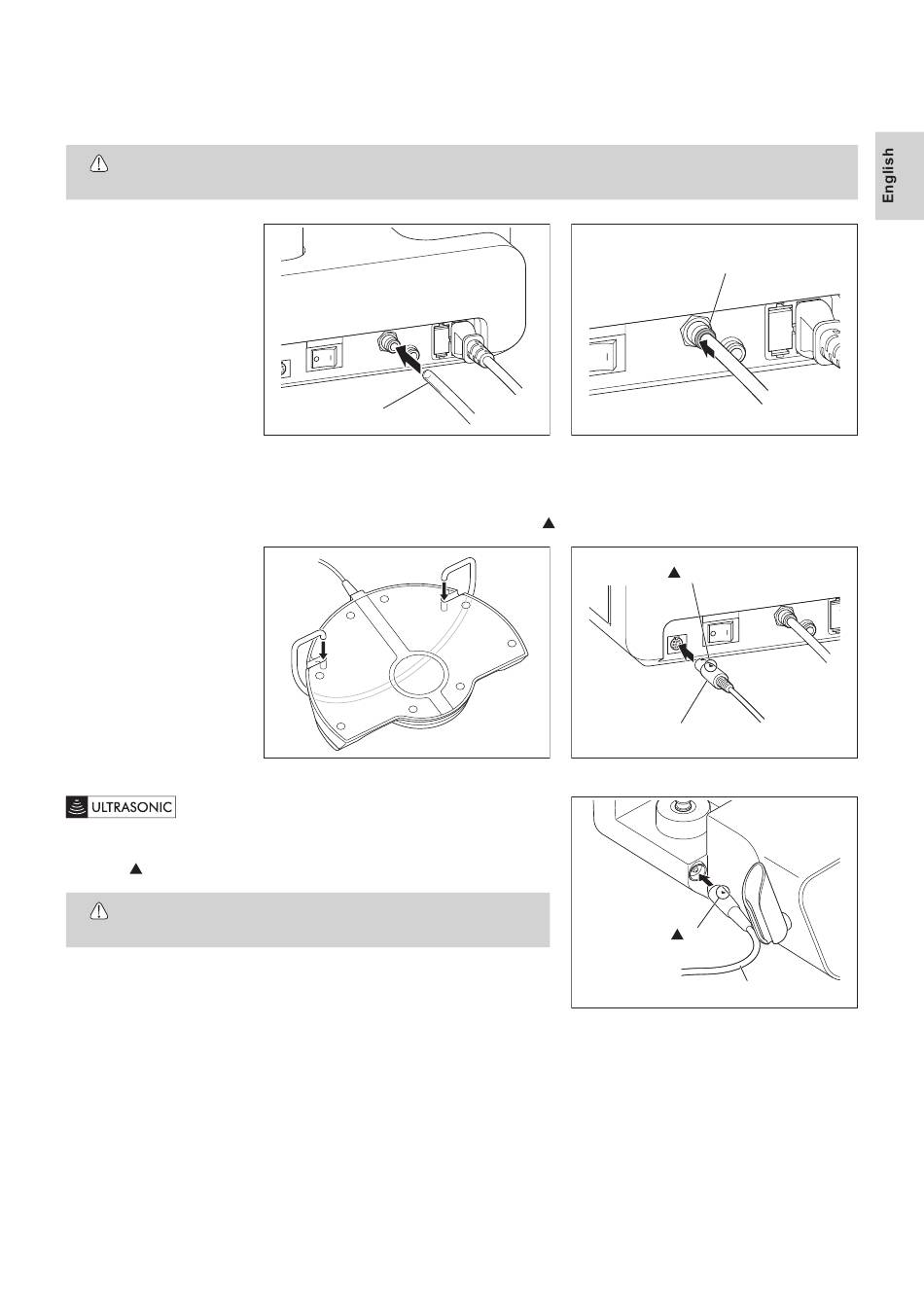

5-2 Connecting the Air Hose

1) Insert one end of the Air Hose deep into the Air Hose Connector (Fig. 2).
2) Pull the Air Hose gently and check that the Hose does not come out.
3) To remove the Air Hose, pull the Air Hose out while pushing the blue ring toward the Control Unit (Fig. 3).
• Use clean dry air. Powder may clog if the air contains moisture or oil.
CAUTION
5-3 Connecting the Foot Control
1) Insert the Foot Control Hanger so that it fits correctly into the holes at the rear of the Foot Control (Fig. 4).
2) Insert the Foot Control Plug into the Foot Control Cord Connector Socket with the
5-4 Connecting the Handpiece Cord (Ultrasonic Handpiece)
Connect the Handpiece Cord Connector to the Handpiece Cord Connector Socket
with the mark facing upwards (Fig. 6). Push it in all the way.
• Check that the Handpiece Cord Plug is clean and dry before connection.
CAUTION
Air Hose
Fig. 2
Fig. 4
9
Push the blue ring
mark facing upwards (Fig. 5).
mark
Foot Control Cord Plug
mark
Handpiece Cord
Fig. 3
Fig. 5
Fig. 6
