Requirements
Prior to connecting the machine, an electrician must ensure that the preconditions for electrical installation are fulfilled.
- The existing mains circuit must be sufficiently dimensioned to support the machine.
- Refer to the Technical Specifications for max. prefusing.
- The connection may only be effected at a special feed point.
- All phases and the PE ground connection must exist.
Lay the electrical extension cable.
The extension cable must be laid clearly and protected against damage taking local conditions into consideration.
There is a danger of an electric shock, possibly with fatal consequences:
-if you touch electric wires
-if you touch machines with electric drives and the electrical connection has not been performed correctly, or
if power cables are damaged.
Connecting to the mains network
On construction sites, the machine may only be connected to special feed points with earth leakage circuit breaker. The
following power sources are permissible as special feed points:
- building site main distributor
- building site mini distributor
- safety distributor
- mobile safety device
The machine is ready for operation after inserting the plug into one of the specified power sources.
1
3
NOTE: During each commissioning phase and prior to processing any coating material, the mortar hose is to
be filled with approx. 0.5 l of wallpaper paste before being connected to the pump outlet.

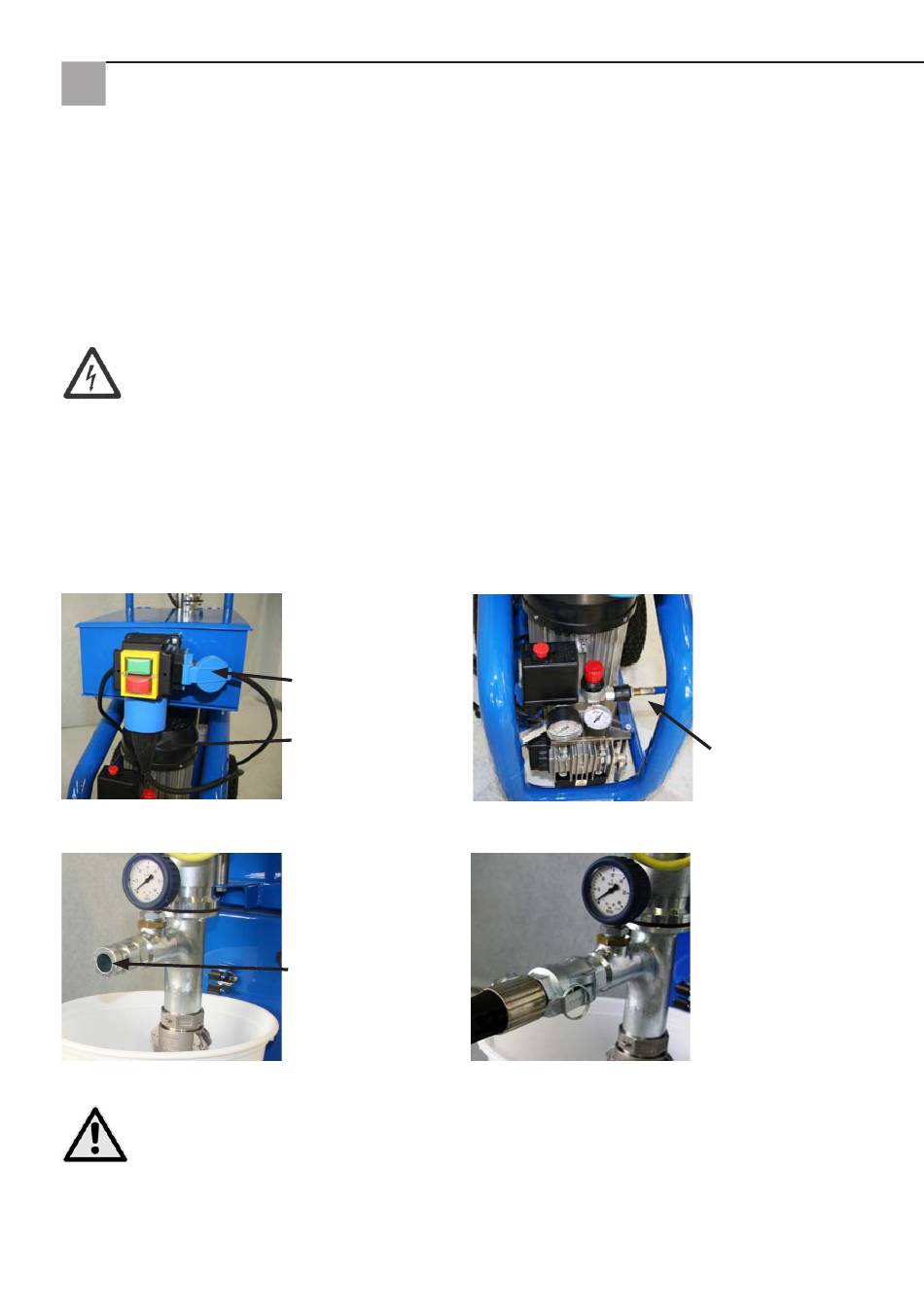

Plug the supply
cable (1) into the
main socket as
shown. Plug the
connecting cable
2
for the drive motor
(2) into the safety
socket on the con-
trol unit.
1
2
Before processing
any material check
the function of the
pump first with
water. (For the
switch-on procedu-
re see point 6.3).
1
If water escapes
from the pump
outlet (1), switch
off the device.
116
4
Connect the air
hose (3) to the
compressor.
3
Connect the mor-
tar hose to the
pump outlet on the
machine and the
other end to the
spraying lance.
