Thermostat
Water Inlet from Heater
Engine Lube Oil Inlet Filter
Engine Lube Oil Pump
Cooling Fresh Water Pump
Safety Valve
Engine Lube Oil Cooler
(Fresh Water Cooling)
Relief Valves
Water Outlet to Heater
Water Temp. Switch
Water Temp. Sender (Optional)
Fuel Oil Filter
Fuel Oil Inlet
(from Fuel Tank)
Fuel Oil Cooler
Fuel Return Pipe
(to Fuel Tank)
Fresh Water Cooler
Fuel Injection Pump
Engine Lube Oil Filter
Sea Water Inlet
(from King-stone Cock)
Cooling Sea Water Pump
Mixing Elbow
Exhaust Manifold
6LPA-STP
*
Engine Lube Oil Cooler (Sea Water Cooling)
is not attached on the Model 6LPA-DTP
Inter Cooler
MARKS

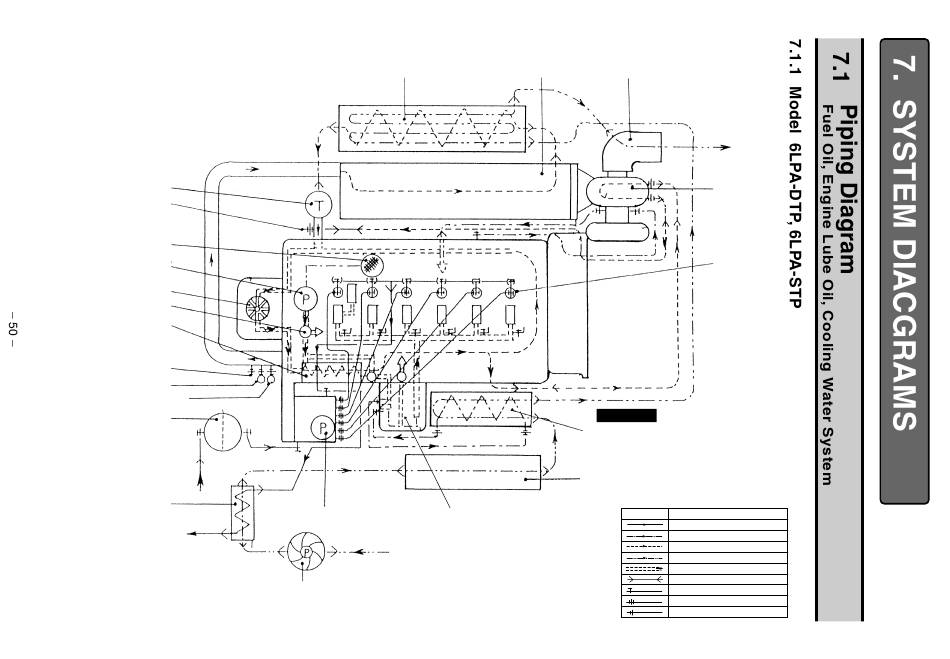

Fuel Oil Piping
Engine Oil Piping
Cooling Fresh Water Piping
Cooling Sea Water Piping
Drilled Flow Line (Hole)
Inserted Pipe Coupling
Eye type Pipe Coupling
Screwed type Pipe Coupling
Flanged type Pipe Coupling
Sea Water
Outlet
Turbo
Charger
Fuel Injection
Valves
NAME Of PARTS
