(4) Adjusting the Governor Remote Control Cable
The governor remote control handle and the engine speed levers are connected by an accelera-
tor cable. Over time the cable becomes stretched and the connections loose causing deviation in
the position which makes operation unsafe. Inspect the cable periodically and adjust if necessary.

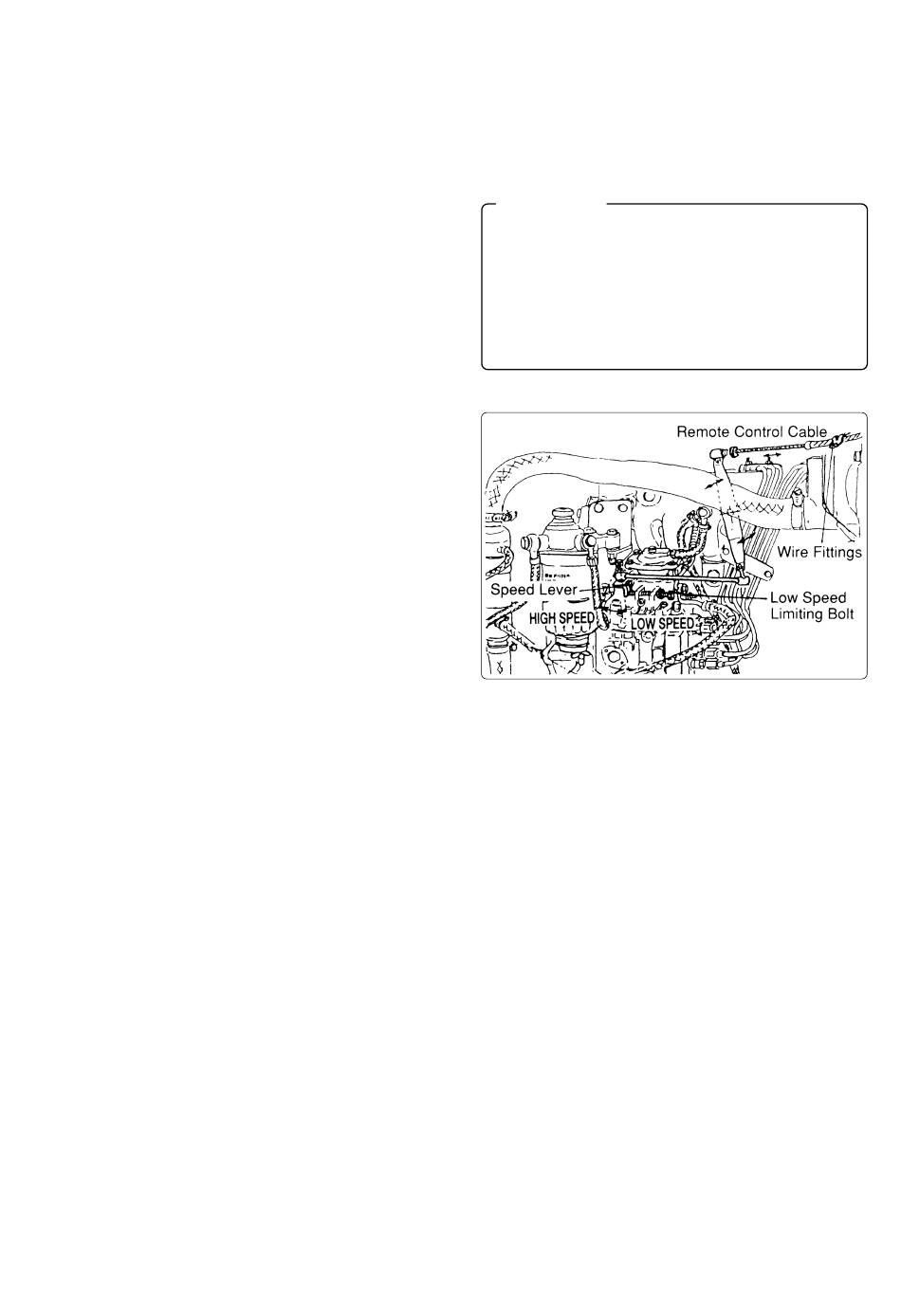

① Check to see that the speed lever on the
engine side is touching the high speed limit-
ing bolt when the governor handle is put in H
(High Speed).
High speed limiting bolt locates in back of
the fuel injection pump.
② Check to see that the speed lever on the
engine side is touching the low speed limit-
ing bolt when the governor handle is put in L
(Low Speed).
③ If the speed lever does not touch the limiting
bolt for either the high or low speed when
you check them, loosen the setting bolts on
the fittings for the accelerator cable and
adjust the position of the cable.
After adjusting the cable, retighten the set-
ting bolts.
(5) Adjusting the Clutch Remote Control Cable for the Marine Drive
① Check to see that the clutch lever on the marine gear side is in the neutral position when the
remote control handle is in NEUTRAL.
② If the position of the clutch lever is incorrect, Ioosen the setting screw of the cable bracket and
adjust the position of the cable.
③ Check the clutch lever in
▲FWD (Forward) (Ahead )
▼REV (Reverse) (Astern)
making sure it is correctly aligned.
④ Make any necessary adjustments using NEUTRAL as the central point.
⑤ Make sure the control cable is securely fastened to the clutch lever.
For other models, refer to the marine gear operation manual.
For other models, check and adjust the marine drive and remote control handle in accordance with
their accompanying operation manuals making sure the clutch positions are correct.
【NOTICE】
Never remove the limiting bolt for the
fuel injection pump or the restraint bolt
on the amount of fuel injected. Doing
so will impair safe operation and lower
the efficiency of the engine and shorten
its life.
