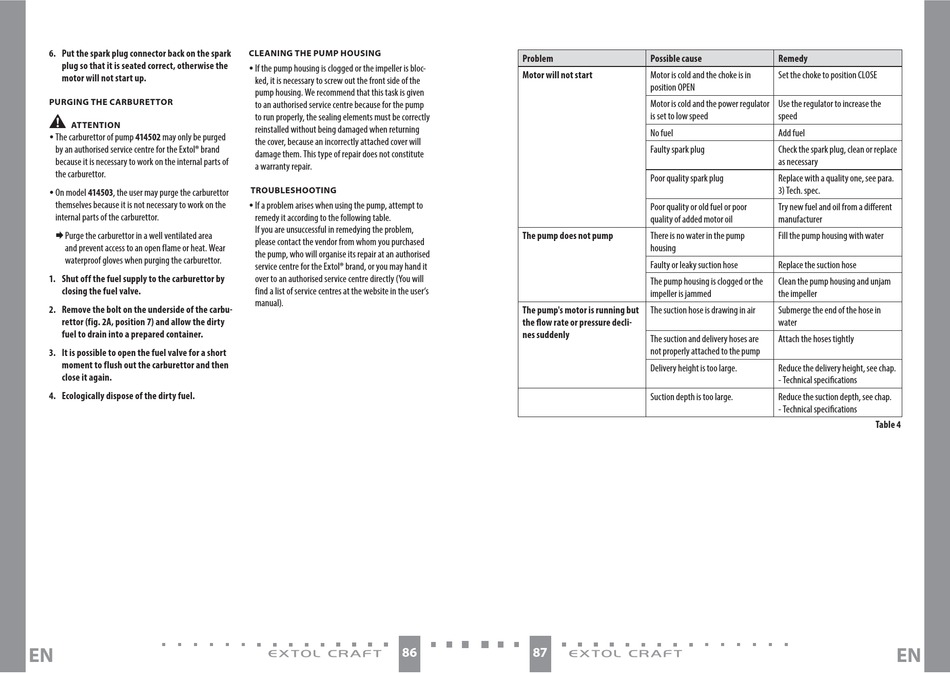

6. Put the spark plug connector back on the spark
plug so that it is seated correct, otherwise the
motor will not start up.
PURGING THE CARBURETTOR
•
ATTENTION
y The carburettor of pump 414502 may only be purged
by an authorised service centre for the Extol® brand
because it is necessary to work on the internal parts of
the carburettor.
y On model 414503, the user may purge the carburettor
themselves because it is not necessary to work on the
internal parts of the carburettor.
 P urge the carburettor in a well ventilated area
and prevent access to an open flame or heat. Wear
waterproof gloves when purging the carburettor.
1. Shut off the fuel supply to the carburettor by
closing the fuel valve.
2. Remove the bolt on the underside of the carbu-
rettor (fig. 2A, position 7) and allow the dirty
fuel to drain into a prepared container.
3. It is possible to open the fuel valve for a short
moment to flush out the carburettor and then
close it again.
4. Ecologically dispose of the dirty fuel.
EN

CLEANING THE PUMP HOUSING

y If the pump housing is clogged or the impeller is bloc-
ked, it is necessary to screw out the front side of the
pump housing. We recommend that this task is given
to an authorised service centre because for the pump
to run properly, the sealing elements must be correctly
reinstalled without being damaged when returning
the cover, because an incorrectly attached cover will
damage them. This type of repair does not constitute
a warranty repair.
TROUBLESHOOTING
y If a problem arises when using the pump, attempt to
remedy it according to the following table.
If you are unsuccessful in remedying the problem,
please contact the vendor from whom you purchased
the pump, who will organise its repair at an authorised
service centre for the Extol® brand, or you may hand it
over to an authorised service centre directly (You will
find a list of service centres at the website in the user's
manual).
86
Problem Possible cause
Motor will not start Motor is cold and the choke is in
position OPEN
Motor is cold and the power regulator
is set to low speed
No fuel
Faulty spark plug
Poor quality spark plug
Poor quality or old fuel or poor
quality of added motor oil
The pump does not pump There is no water in the pump
housing
Faulty or leaky suction hose
The pump housing is clogged or the
impeller is jammed
The pump's motor is running but The suction hose is drawing in air
the low rate or pressure decli-
nes suddenly
The suction and delivery hoses are
not properly attached to the pump
Delivery height is too large.
Suction depth is too large.
87
Remedy
Set the choke to position CLOSE
Use the regulator to increase the
speed
Add fuel
Check the spark plug, clean or replace
as necessary
Replace with a quality one, see para.
3) Tech. spec.
Try new fuel and oil from a diferent
manufacturer
Fill the pump housing with water
Replace the suction hose
Clean the pump housing and unjam
the impeller
Submerge the end of the hose in
water
Attach the hoses tightly
Reduce the delivery height, see chap.
- Technical speciications
Reduce the suction depth, see chap.
- Technical speciications
Table 4
