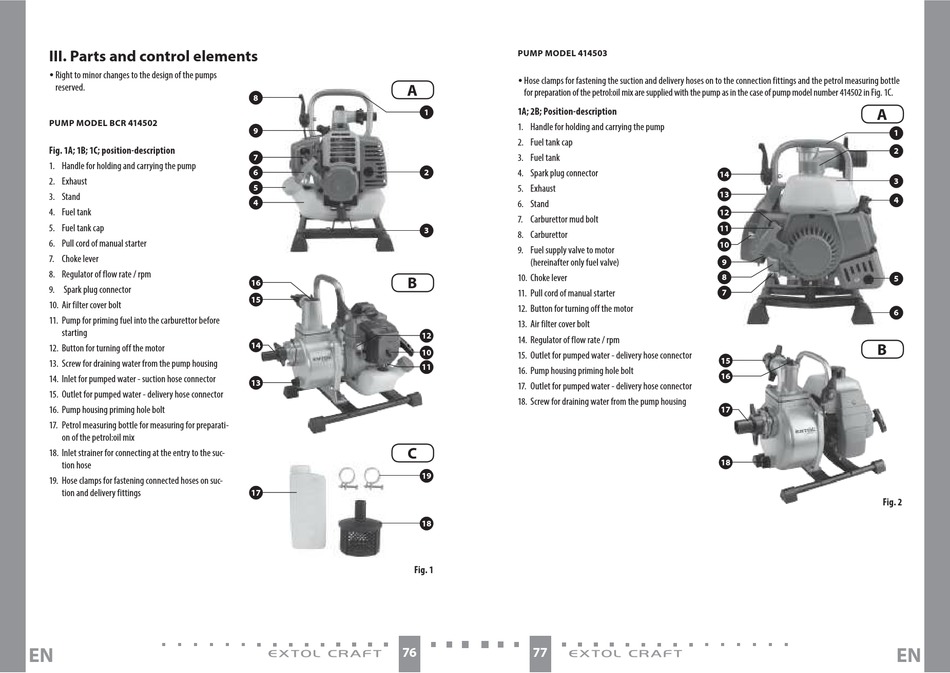

III. Parts and control elements
y Right to minor changes to the design of the pumps
reserved.
PUMP MODEL BCR 414502
Fig. 1A; 1B; 1C; position-description
1. Handle for holding and carrying the pump
2. Exhaust
3. Stand
4. Fuel tank
5. Fuel tank cap
6. Pull cord of manual starter
7. Choke lever
8. Regulator of flow rate / rpm
9. Spark plug connector
10. Air filter cover bolt
11. Pump for priming fuel into the carburettor before
starting
12. Button for turning off the motor
13. Screw for draining water from the pump housing
14. Inlet for pumped water - suction hose connector
15. Outlet for pumped water - delivery hose connector
16. Pump housing priming hole bolt
17. Petrol measuring bottle for measuring for preparati-
on of the petrol:oil mix
18. Inlet strainer for connecting at the entry to the suc-
tion hose
19. Hose clamps for fastening connected hoses on suc-
tion and delivery fittings
EN
A
8
1
9
7
6
2
5
4
3
B
16
15
12
14
10
11
13
C
19
17
18
Fig. 1
76
PUMP MODEL 414503
y Hose clamps for fastening the suction and delivery hoses on to the connection fittings and the petrol measuring bottle
for preparation of the petrol:oil mix are supplied with the pump as in the case of pump model number 414502 in Fig. 1C.
1A; 2B; Position-description
1. Handle for holding and carrying the pump
2. Fuel tank cap
3. Fuel tank
4. Spark plug connector
5. Exhaust
6. Stand
7. Carburettor mud bolt
8. Carburettor
9. Fuel supply valve to motor
(hereinafter only fuel valve)
10. Choke lever
11. Pull cord of manual starter
12. Button for turning off the motor
13. Air filter cover bolt
14. Regulator of flow rate / rpm
15. Outlet for pumped water - delivery hose connector
16. Pump housing priming hole bolt
17. Outlet for pumped water - delivery hose connector
18. Screw for draining water from the pump housing
77
A
1
2
14
3
13
4
12
11
10
9
8
5
7
6
B
15
16
17
18
Fig. 2
EN
