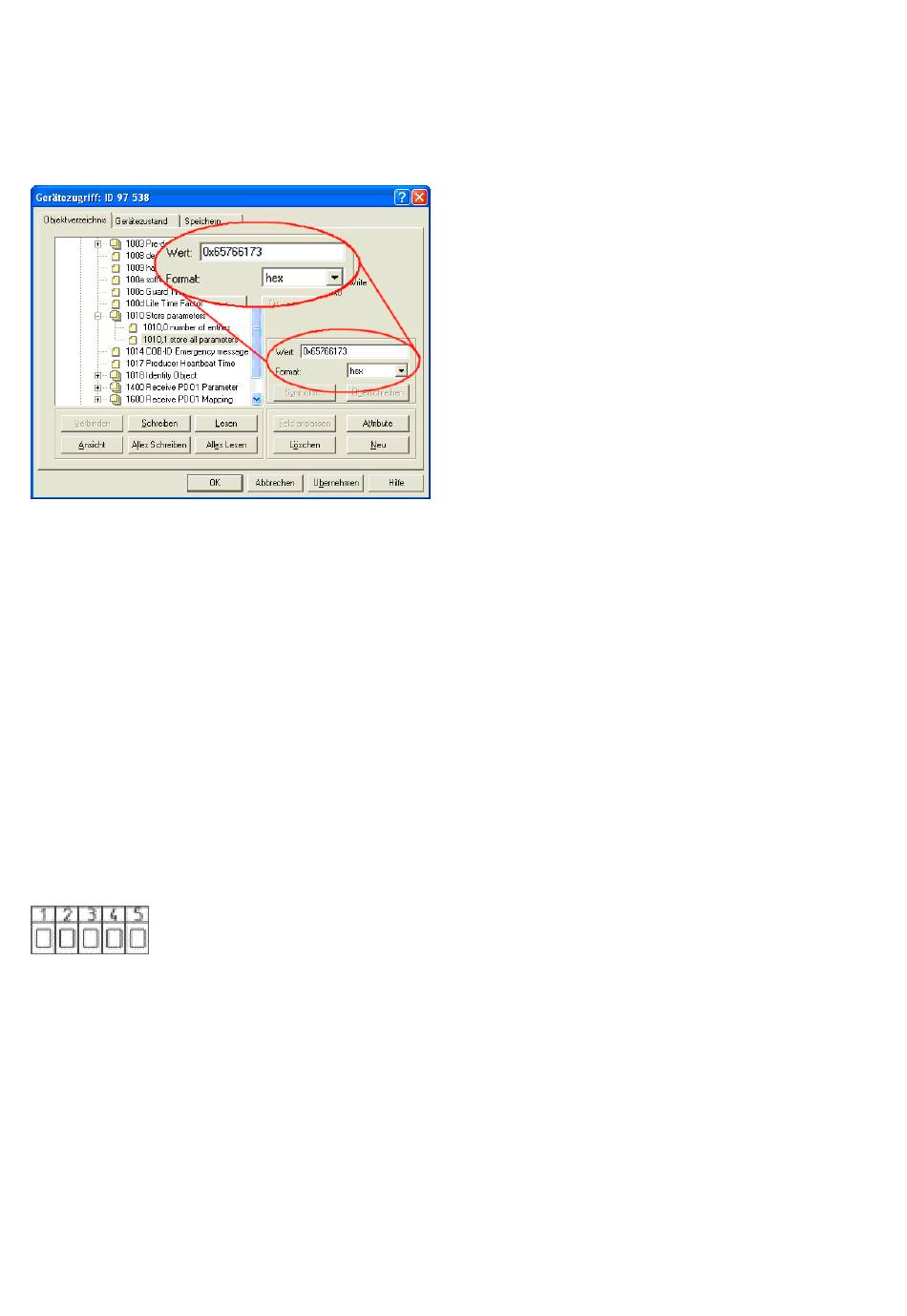

8 Saving the parameters Object
1010h in Preoperational Mode
The instruction "save" under sub index 1h (save
all Parameters) allows saving the parameters in
the nonvolatile memory (EEPROM).
All communication objects, application objects
and manufacturer-specific objects are saved
under this item. In order to avoid any saving by
mistake, the instruction is only carried out if the
string ''save'' is input as code word in this sub
index.
A read-only access to sub index 1h gives
information about the functionality of the memory.
Byte 0: 73h (ASCII Code for "s")
Byte 1: 61h (ASCII Code for "a")
Byte 2: 76h (ASCII Code for "v")
Byte 3: 65h (ASCII Code for "e")
Value = 0 x 65 76 61 73 hex
9

Connection

1 10 ... 30 V DC
2 0 V GND
3 CAN A
4 CAN L
5 CAN H

10 Technical data

Supply voltage:
Power consumption:
Display:
www.kuebler.com
10 ... 30 V DC, with
integrated reverse
polarity protection
2 W
red 6-digit 7-segment
LED display, height 8 mm
CAN bus:
Bus termination:
Potential separation: no
Node number:
Data retention:
Housing:
Ambient temperature: 0 ... +50 °C, non-condensing
Storage temperature: –20 ... +70 °C
Connection:
EMC:
Noise emission:
Noise immunity:
Protection:
Weight:

11 Scope of delivery

Digital display
Mounting clip
Seal
CD with EDS file
Multilingual operating instructions

12 Ordering code

6.538.012.3C1
CAN Specification
2.0A/2.0B, CANopen
compliant, transmission rate
up to 1 MBaud,
no bus termination
16 node numbers,
adjustable via rotary
coding selector switch
EEPROM
panel-mount housing
48 x 24 mm
DIN 43 700; RAL 7021,
dark grey
screw terminals
RM 5.08 mm
EN 55 011 Class B
EN 61 000-6-2
IP65 (front)
approx. 50 g
