Description

The Codix 538 display is a process display used to
show a CANopen process value.
It uses a 8 mm high 6-digit 7-segment red LED
display. The integrated CAN controller supports the
transmission according to the CAN specification
2.0A / 2.0B up to 1 MBaud max. The protocol is
CANopen compliant. Addressing 16 different
addresses is possible using the rotary coding
selector switch on the back side of the device.
Parameterizing is carried out via the CANopen bus.
The display receives an instruction telling it which
information out of a CAN message is to be
displayed, and in which format. This allows the
display to filter independently the relevant data out
of the whole CAN information flow, without
requiring direct instructions. Display range: -99999
to 999999. The decimal point can be freely
selected.
4

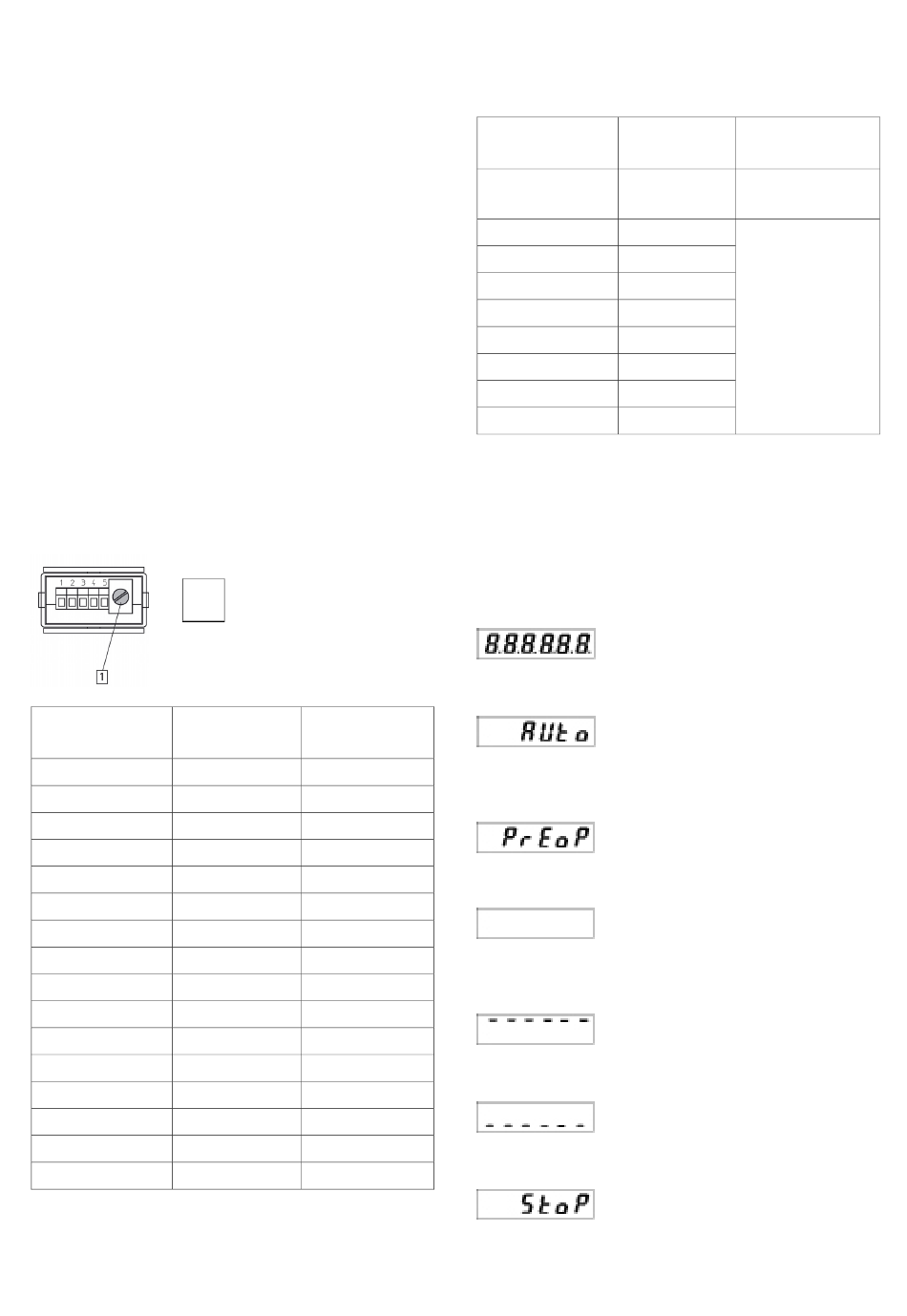

Node number

The node number of the CAN display is
set on the back side of the device, using
the rotary coding selector switch:
1
Selector switch Node number
setting decimal
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
www.kuebler.com
Rotary coding
selector switch
Node number
hexadecimal
96 60
97 61
98 62
99 63
100 64
101 65
102 66
103 67
104 68
105 69
106 6A
107 6B
108 6C
109 6D
110 6E
111 6F
5

Boot-up behavior

The behavior of the device when powering it
depends on the value of Index 0x5200/Sub index 1.
Index 0x5200/ Baud rate
Sub index 1
0 Automatic
recognition
1 20 kbit/s
2 50 kbit/s
3 100 kbit/s
4 125 kbit/s
5 250 kbit/s
6 500 kbit/s
7 800 kbit/s
8 1 Mbit/s
The automatic baud rate recognition recognizes
automatically all baud rates stated in the table. The
recognition requires receiving valid CAN telegrams.
For this operation, two other devices must be
connected to the bus.
5.1

Display description

5.1.1 Display start

Display start

5.1.2 Auto

Automatic baud rate recognition.
The baud rate is displayed as
soon as it is recognized.

5.1.3 PrEoP

Display in the "Preoperational"
CANopen status

5.1.4 Empty display

"Empty display": the display is
Operational, but did not receive
any value yet

5.1.5 OverFlow

Value too large for the display

5.1.6 Under Flow

Value too small for the display

5.1.7 Stopped

Display in the "Stopped"
CANopen status
Boot-up status
Preoperational
Operational
