6

Display operation

6.1

Data types, value ranges

The Codix 538 CAN display only displays the
transmitted figures when it is in the "Operational"
status. The display supports a reception PDO,
which allows reading all supported data types also
via PDO.
6.2

Decimal point display

The number of decimal places must be set between
0 and 5. The display rounds the figure to the set
number of decimal places.
The displayed figure is calculated using the
following formula:
Displayed figure = received figure * Factor + Offset
Description
Number of
decimal places
Offset
Factor
6.3 Displayable integer types in
function of the parameters set
Type
INT8 -128...127
INT16 -32768...32768 0x64101 / 0x01
-2147483648...
INT32
2147483647
UINT8
UINT16 0...65535
UINT32 0...4294967295
6.4

Floating point figures

IEE 754: sign 1 bit, mantissa 23 bits, exponent
8 bits
6.5

Non displayable figures

If the display cannot show a figure with the
available 6 digits, all A segments are switched on
for positive figures and all D segments for negative
figures.
www.kuebler.com
Index/ Sub
Type
index
Uint8 0x5000 / 0x1
Float 0x5000 / 0x02
Float 0x5000 / 0x03
Index/Sub-
Range
index via SDO
0x6410 / 0x01
0x6412 / 0x01
0...255 0x6410 / 0x02
0x6411 / 0x02
0x6412 / 0x02
6.6

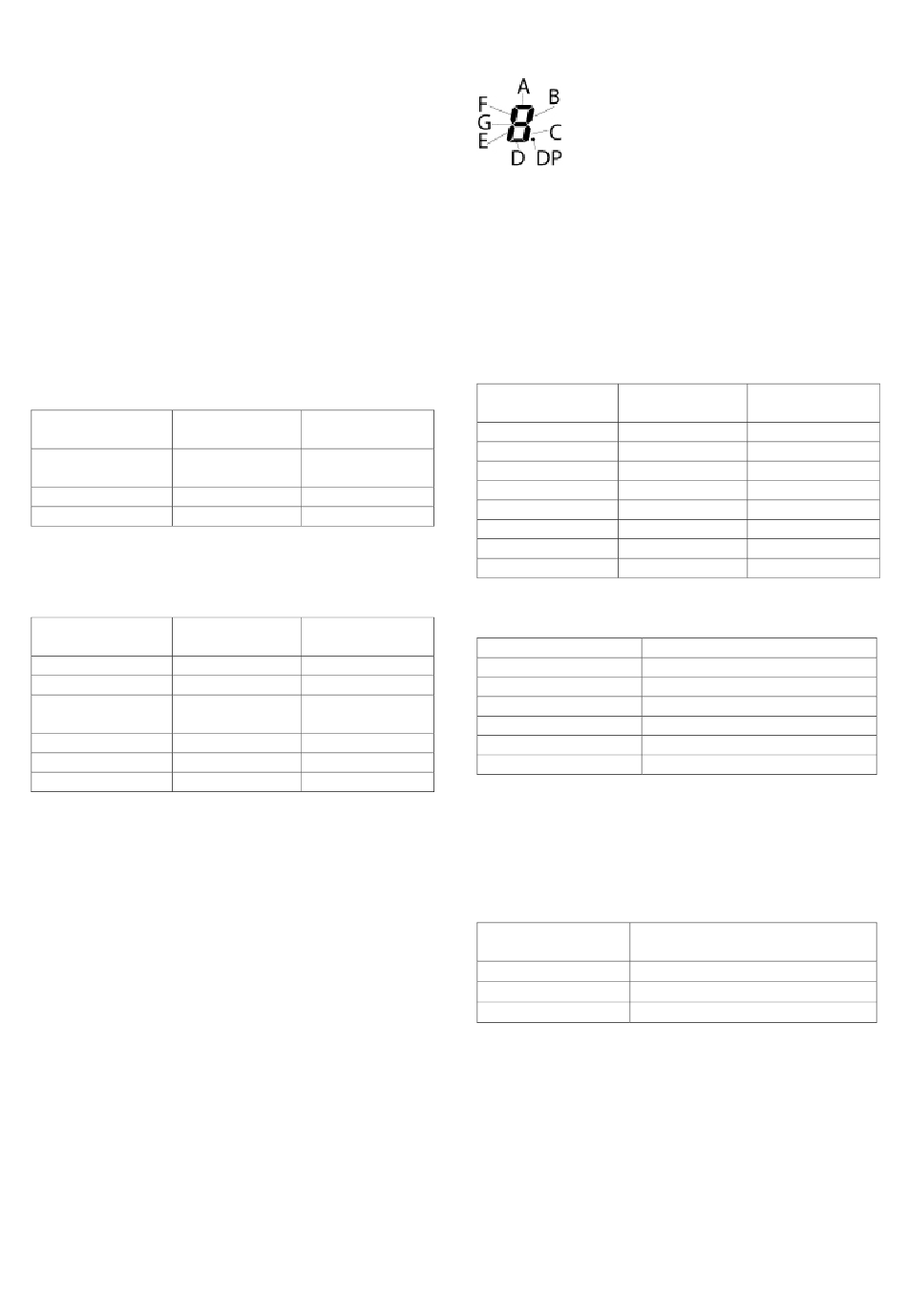

Display element

Each of the 7 segments can be controlled
individually.
6.7 Direct segment control using
Object 5100
Each of the 8 segments of the 6-digit display can
be controlled directly. The status of the 8 segments
(A..F, DP) can be described using a byte (UINT8,
value range 0 to 255) as the sum of the values.
See an example on page 9
Segment
DP
A
B
C
D
E
F
G
The individual digits can be controlled directly via
SDO
Digit
1
2
3
4
5
6 (left side)
7

PDO Mapping

A reception PDO is supported (0x1400/0x1600).
Dummy objects are available for 8, 16 and 32 bits.
See an example on page 9
Memory size
8 bits
16 bits
32 bits
Decimal Hexadecimal
value value
1 0x01
8 0x08
4 0x04
2 0x02
128 0x80
64 0x40
16 0x10
32 0x20
Index/Sub index
0x5100/0x01
0x5100/0x02
0x5100/0x03
0x5100/0x04
0x5100/0x05
0x5100/0x06
Index/Sub index
Dummy object
0x0002 / 0x00
0x0003 / 0x00
0x0004 / 0x00
Page 5
