Pressure Calibrator
LPC 200

1.4 Electrical connections to the LPC 200 DigitalConsole

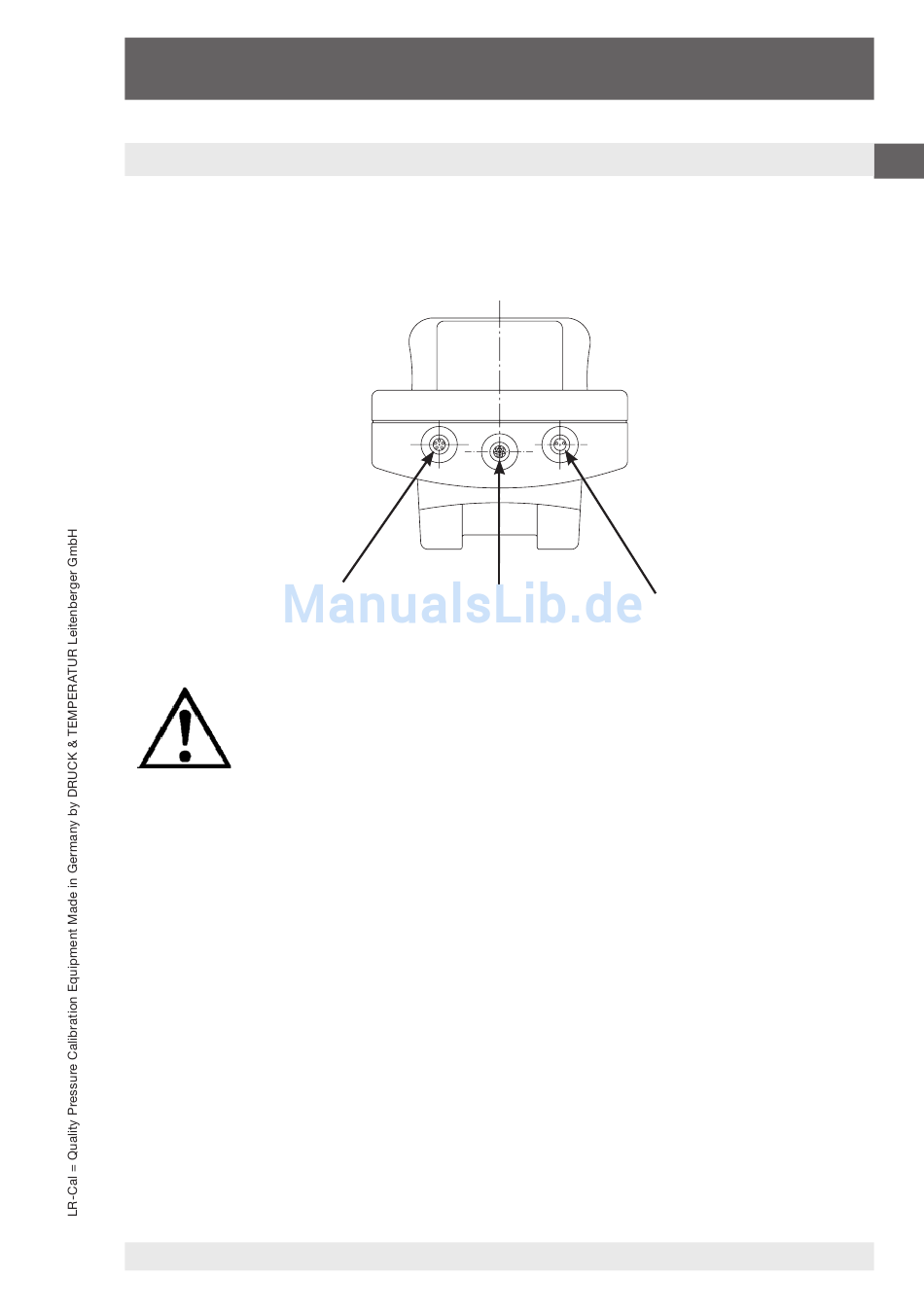

All electrical connections for the LPC 200 are located along the top edge of the
instrument (see the picture below).
Connection for
interface adapter
Only the appropriate, original LR-Cal components should be
connected to these electrical ports. (Only the LR-Cal battery
charger to the Mains Input/Charger socket and only a LR-Cal
USB interface cable, as appropriate, to the interface port).
The LPC 200 must be switched off before either connecting
or disconnecting any of the electrical cables. In addition, the
supply voltage marked on the power supply unit must match
the local mains voltage.
LR-Cal Operating Instructions
Power connection
Sensor connection
Pressure Calibrator LPC 200
GB
9
