6.2.3 Measuring mode with pressure rate display

Different functions can be added to the display via the MODE key, e.g. the pressure
rate function (RATE).
Activating the pressure rate function by:
Pressing the MODE key twice* (directly in the standard measuring mode)
* If you are not in the standard measuring mode, press the MODE key until the measuring mode with the
pressure rate function appears on the display).

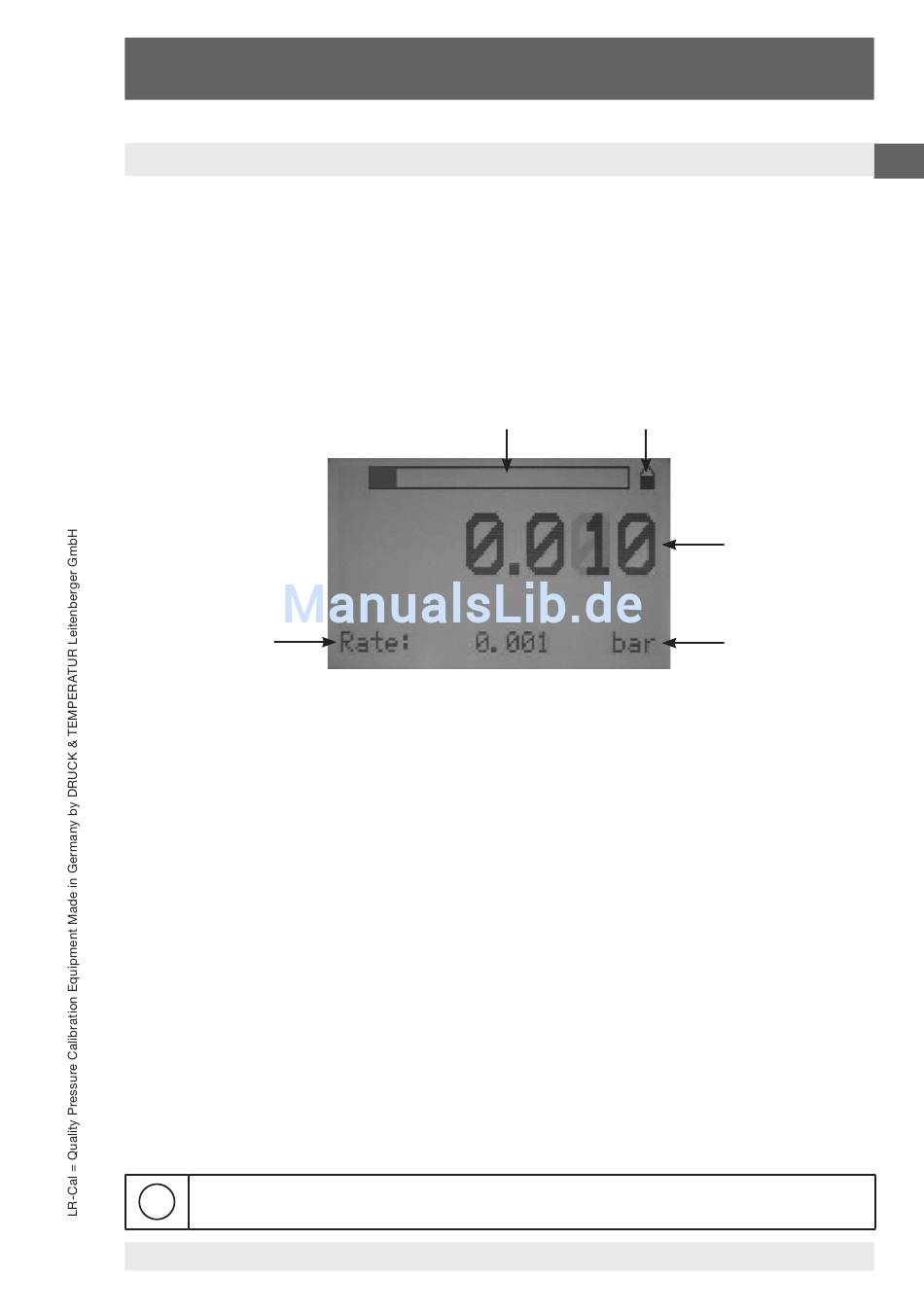

c
a) Current pressure measuring value
b) Current unit and pressure type
- Overpressure: without identification;
- Absolute pressure: is marked by an additional "a"
c) Current pressure rate (RATE):
The pressure rate displays all current pressure changes/sec.
I) Bar graph
The bar graph displays from 0 ... 100 % of the measuring range of the currently
connected sensor. Corresponding to the current pressure value it is filled by x %
and gives information about the current utilisation of the connected pressure
sensor.
II) Rechargeable battery capacity status display
The rechargeable battery capacity status display displays from 0 ... 100 % of the
charging state. It is filled by x % corresponding to the current charging state and
gives information about the current charging state of the rechargeable battery.
Return to the standard measuring mode by pressing this key several times.
MODE
