4. Display and keyboard explications

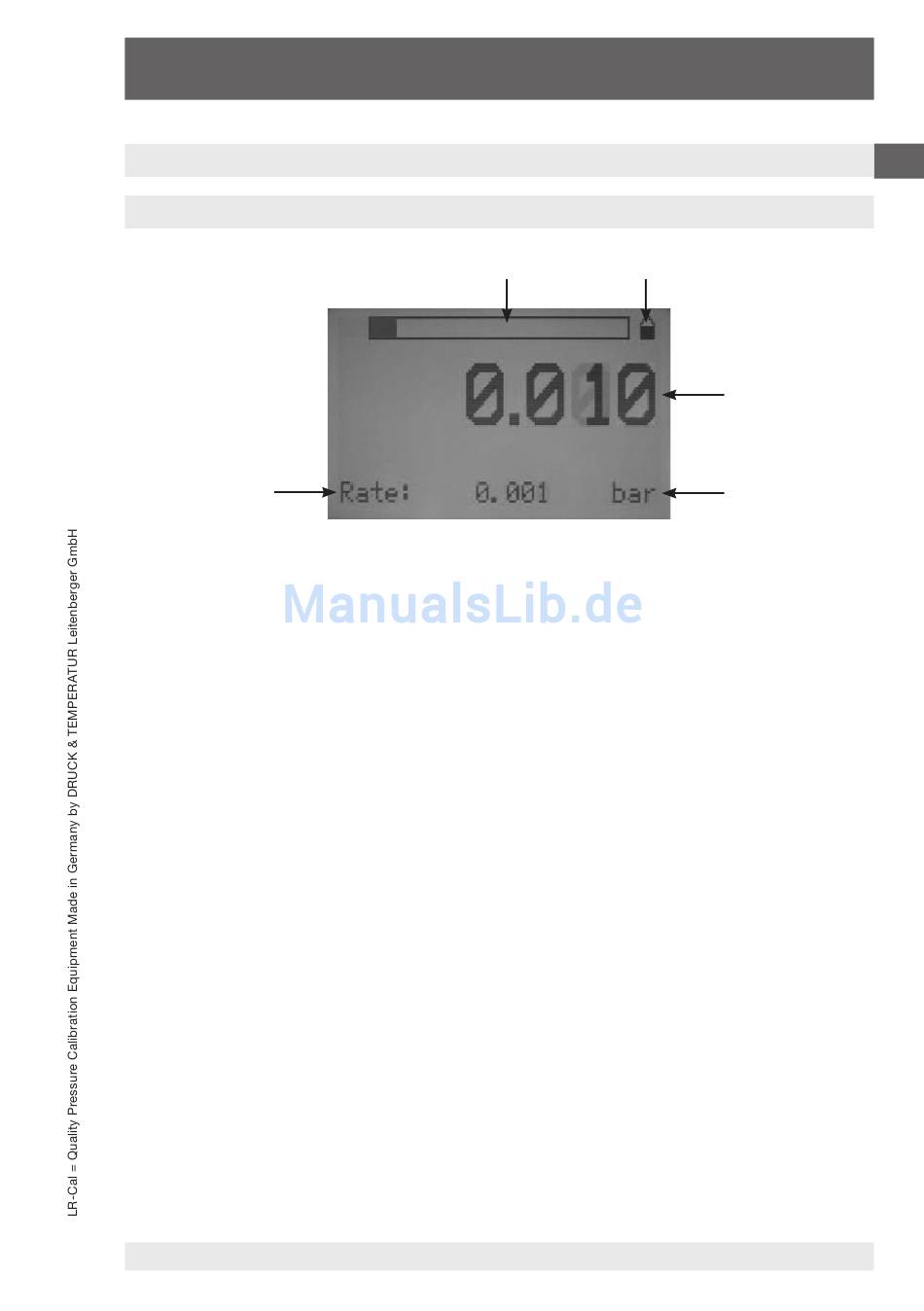

4.1 Display in measuring mode

c
a) Current pressure measuring value
b) Current unit and pressure type
- Overpressure: without identification;
- Absolute pressure: is marked by an additional "a"
c) Functions that can be shown optionally
I) Bar graph
The bar graph displays from 0 ... 100 % of the measuring range of the currently
connected sensor. Corresponding to the current pressure value it is filled by x %
and gives information about the current utilisation of the connected pressure
sensor.
II) Rechargeable battery capacity status display
The rechargeable battery capacity status display displays from 0 ... 100 % of the
charging state. It is filled by x % corresponding to the current charging state and
gives information about the current charging state of the rechargeable battery.
