Pressure Calibrator
LPC 200
The LPC 200 and the pressure transmitter are connected using a discrete connect-
GB
ing cable. For the sensor change may always be used the 8 poles plug-in contact of
the sensor.

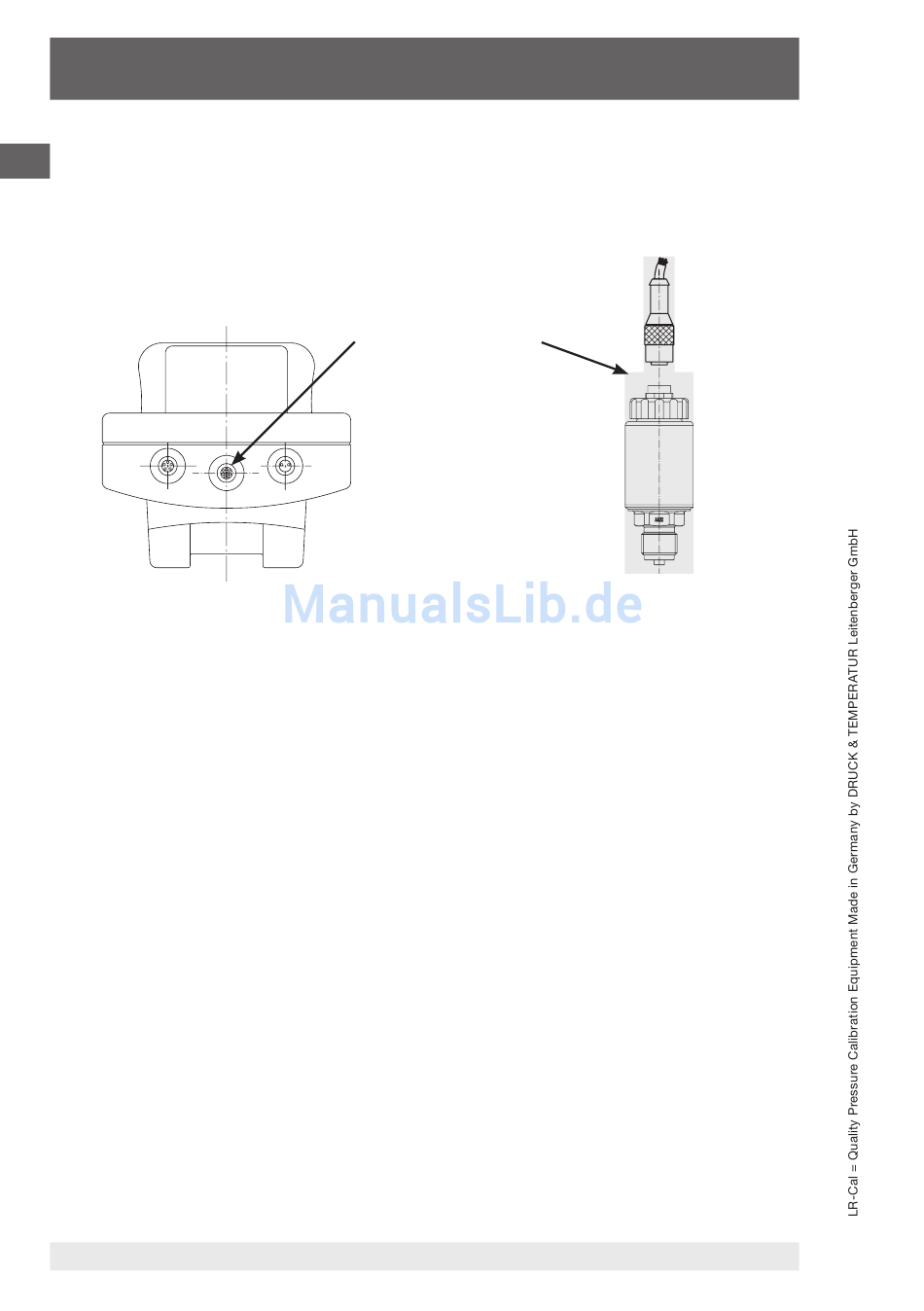

Top view (indicator)
A LPC-2 reference pressure sensor is electrically connected to the LPC 200 by
connecting the corresponding plug connector of the cable on the sensor accord-
ing to the orientation guide and secured by means of a coupling ring (screw in the
coupling ring clockwise without exercising too much force). To disconnect, the
screw collar must be turned anti-clockwise and the sensor pulled away using the
connector body, not the cable.
For the connection to the display unit, the other cable end must also be connected
according to the orientation guide and secured by means of the coupling ring
(screw in the coupling ring without exercising too much force). Unscrew the
coupling ring counter-clockwise to loosen the connection and do not pull the cable
but only the plug socket when disconnecting the display unit.
1
Connection:
Indicator - Sensor
via connecting
cable
LR-Cal Operating Instructions
Side view: sensor
