Pressure Calibrator
LPC 200

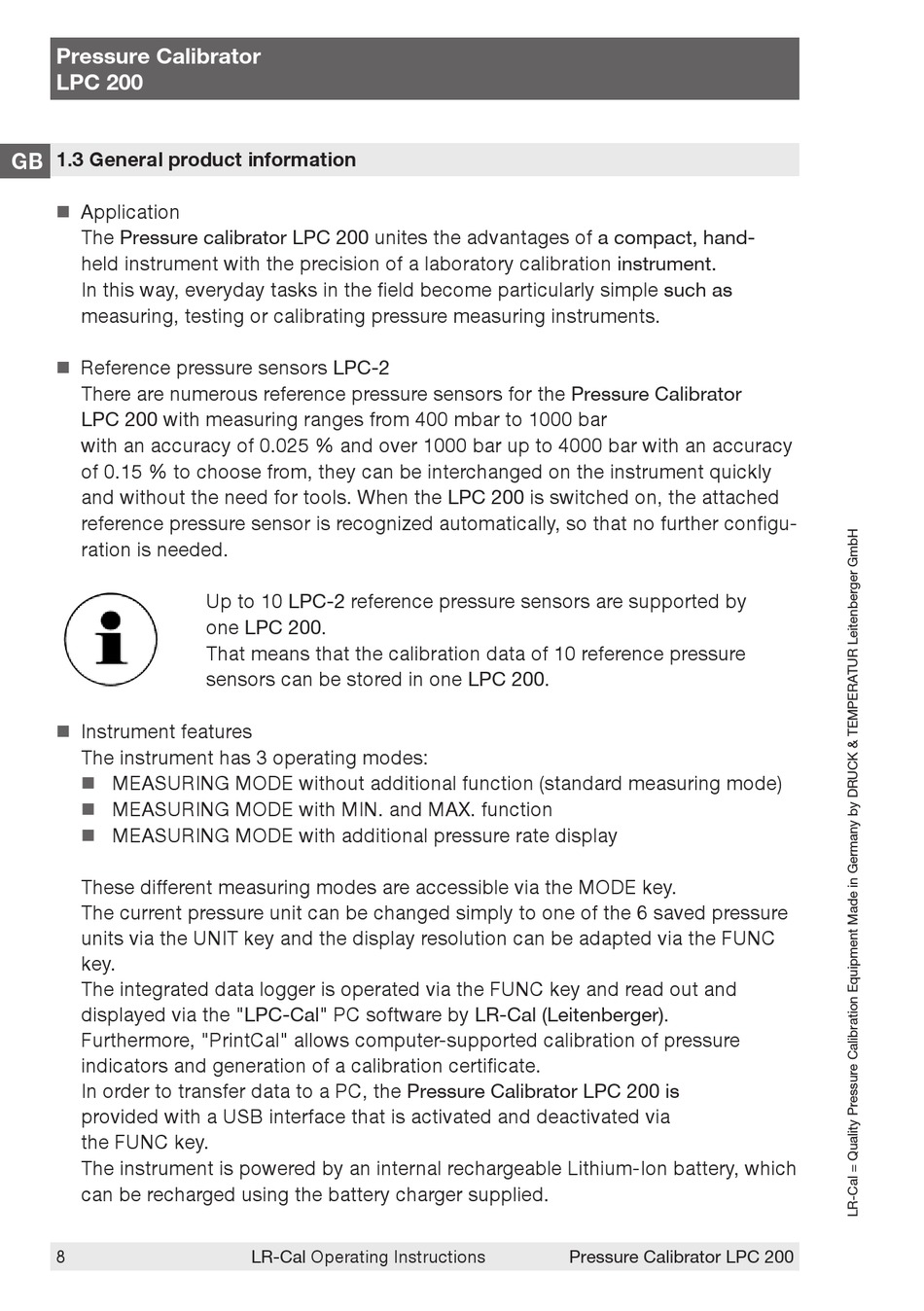

1.3 General product information

GB
Application

The Pressure calibrator LPC 200 unites the advantages of a compact, hand-
held instrument with the precision of a laboratory calibration instrument.
In this way, everyday tasks in the field become particularly simple such as
measuring, testing or calibrating pressure measuring instruments.
Reference pressure sensors LPC-2

There are numerous reference pressure sensors for the Pressure Calibrator
LPC 200 with measuring ranges from 400 mbar to 1000 bar
with an accuracy of 0.05 % and over 1000 bar up to 4000 bar with an accuracy
of 0.15 % to choose from, they can be interchanged on the instrument quickly
and without the need for tools. When the LPC 200 is switched on, the attached
reference pressure sensor is recognized automatically, so that no further configu-
ration is needed.
Instrument features

The instrument has 3 operating modes:
MEASURING MODE without additional function (standard measuring mode)

MEASURING MODE with MIN. and MAX. function

MEASURING MODE with additional pressure rate display

These different measuring modes are accessible via the MODE key.
The current pressure unit can be changed simply to one of the 6 saved pressure
units via the UNIT key and the display resolution can be adapted via the FUNC
key.
The integrated data logger is operated via the FUNC key and read out and
displayed via the "LPC-Cal" PC software by LR-Cal (Leitenberger).
Furthermore, "PrintCal" allows computer-supported calibration of pressure
indicators and generation of a calibration certificate.
In order to transfer data to a PC, the Pressure Calibrator LPC 200 is
provided with a USB interface that is activated and deactivated via
the FUNC key.
The instrument is powered by an internal rechargeable Lithium-Ion battery, which
can be recharged using the battery charger supplied.
8
Up to 10 LPC-2 reference pressure sensors are supported by
one LPC 200.
That means that the calibration data of 10 reference pressure
sensors can be stored in one LPC 200.
LR-Cal Operating Instructions Pressure Calibrator LPC 200
