6.2.2 Measuring mode with MIN/MAX function

GB
Different functions can be added to the display via the MODE key, e.g. MIN and
MAX function.
Activating the MIN/MAX function by:
pressing the MODE key once* (directly in the standard working mode).
* If you are not in the standard measuring mode, press the MODE key until the measuring mode with the
MIN/MAX function appears on the display).
c
d

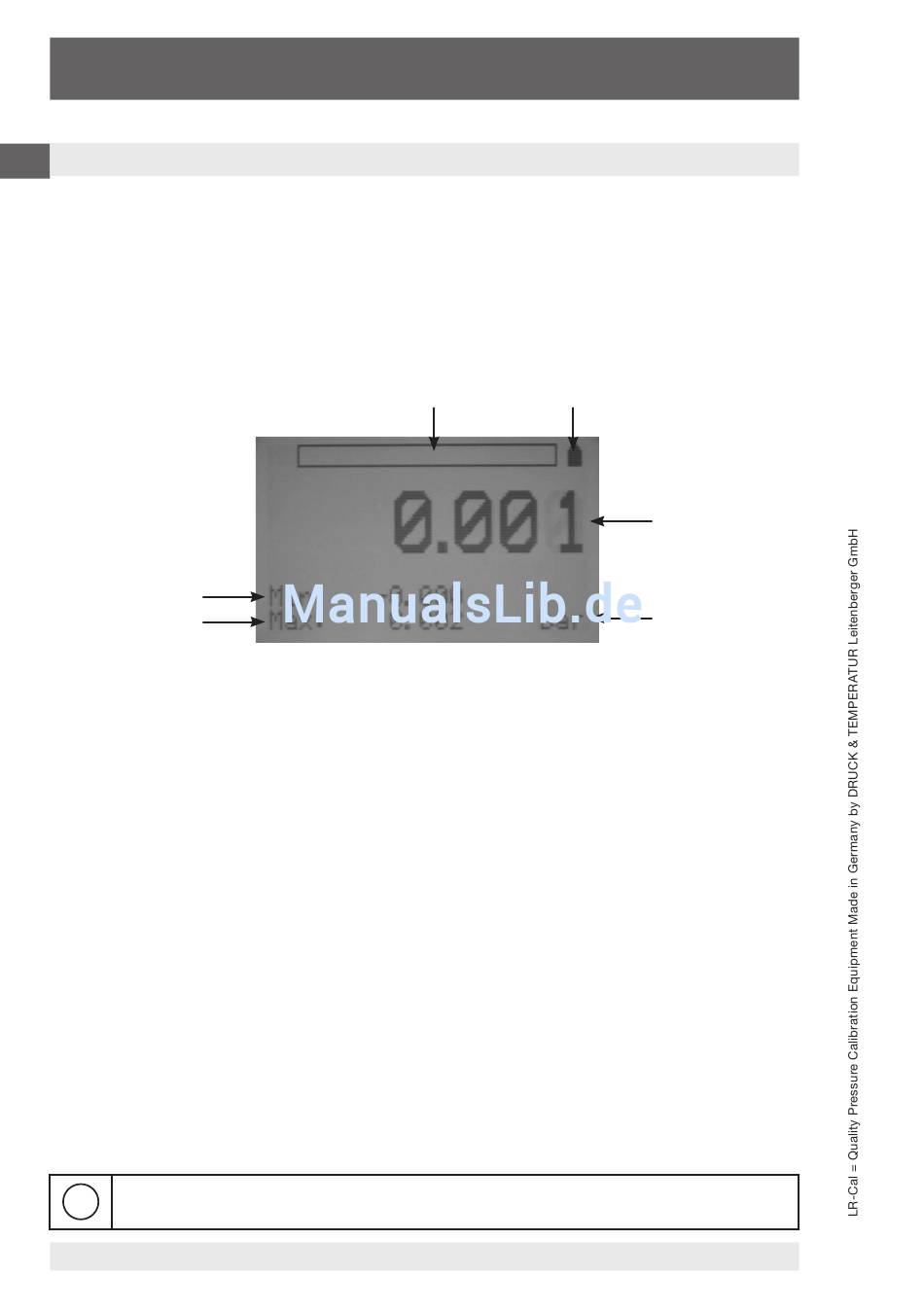

a) Current pressure measuring value
b) Current unit and pressure type
- Overpressure: without identification;
- Absolute pressure: is marked by an additional "a"
c) Minimum function:
The minimum function stores and displays the minimum value since switching on
and is reset by switching off/on the device.
d) Maximum function
The maximum function stores and displays the maximum value since switching
on and is reset by switching off/on the device.
I) Bar graph
The bar graph displays from 0 ... 100 % of the measuring range of the currently
connected sensor. Corresponding to the current pressure value it is filled by x %
and gives information about the current utilisation of the connected pressure
sensor.
II) Rechargeable battery capacity status display
The rechargeable battery capacity status display displays from 0 ... 100 % of the
charging state. It is filled by x % corresponding to the current charging state and
gives information about the current charging state of the rechargeable battery.
Return to the standard measuring mode by pressing this key several times.
MODE
18
Measuring mode with MIN/MAX function
