6.2 Measuring modes

6.2.1 Standard-measuring mode (standard display after switching on)

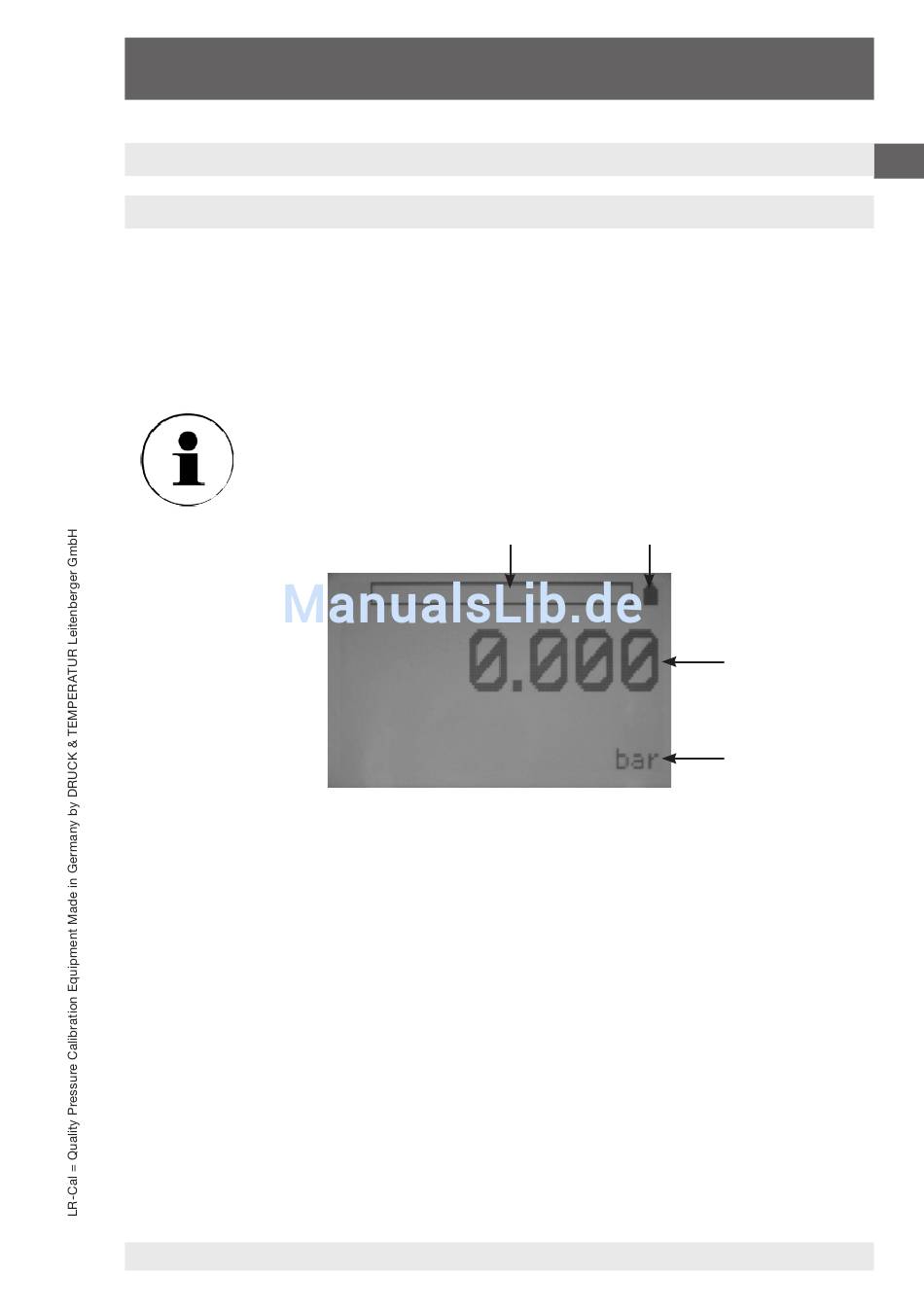

Approx. 3 seconds after switching on the LPC 200 with the LPC-2 reference
pressure sensor connected correctly, the "Standard measuring mode" display
appears (see figure below). It displays the current measuring value, the unit and
pressure type of the currently connected pressure sensor and additionally a bar
graph and a rechargeable battery charging state.
If the sensor has not been calibrated with the display unit, the
message "uncalibrated sensor" will appear on the display. In this
case, it is not allowed to use this sensor.
a) Current pressure measuring value
b) Current unit and pressure type
- Overpressure: without identification;
- Absolute pressure: is marked by an additional "a"
I) Bar graph
The bar graph displays from 0 ... 100 % of the measuring range of the currently
connected sensor. Corresponding to the current pressure value it is filled by x %
and gives information about the current utilisation of the connected pressure
sensor.
II) Rechargeable battery capacity status display
The rechargeable battery capacity status display displays from 0 ... 100 % of the
charging state. It is filled by x % corresponding to the current charging state and
gives information about the current charging state of the rechargeable battery.
