5.1

Filling electrolyte

Open the electrolyte bottle and screw on the nozzle.
1.

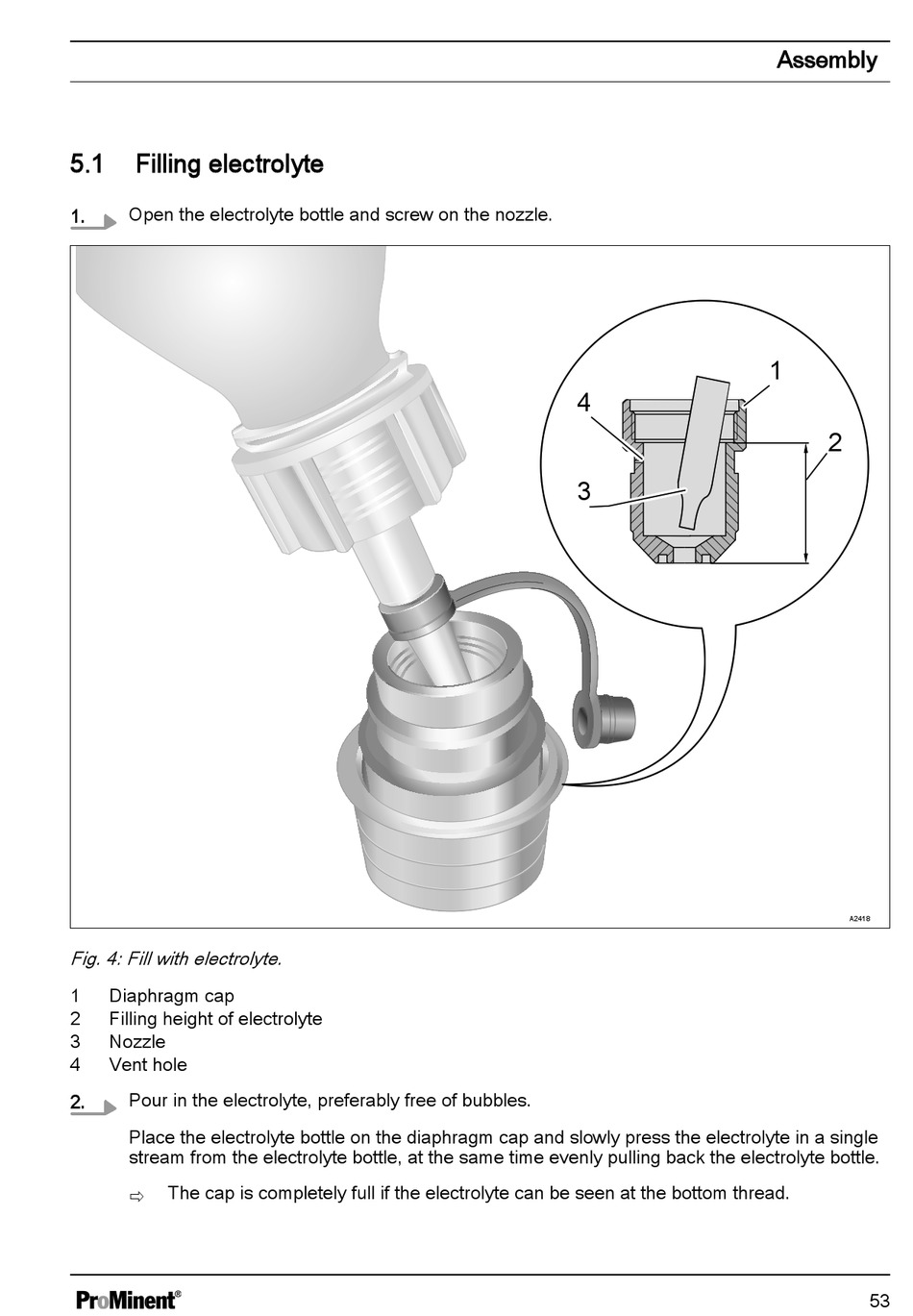

Fig. 4: Fill with electrolyte.
1 Diaphragm cap
2 Filling height of electrolyte
3 Nozzle
4 Vent hole
Pour in the electrolyte, preferably free of bubbles.
2.
Place the electrolyte bottle on the diaphragm cap and slowly press the electrolyte in a single
stream from the electrolyte bottle, at the same time evenly pulling back the electrolyte bottle.
The cap is completely full if the electrolyte can be seen at the bottom thread.
ð
4
3
Assembly
1
2
A2418
53
