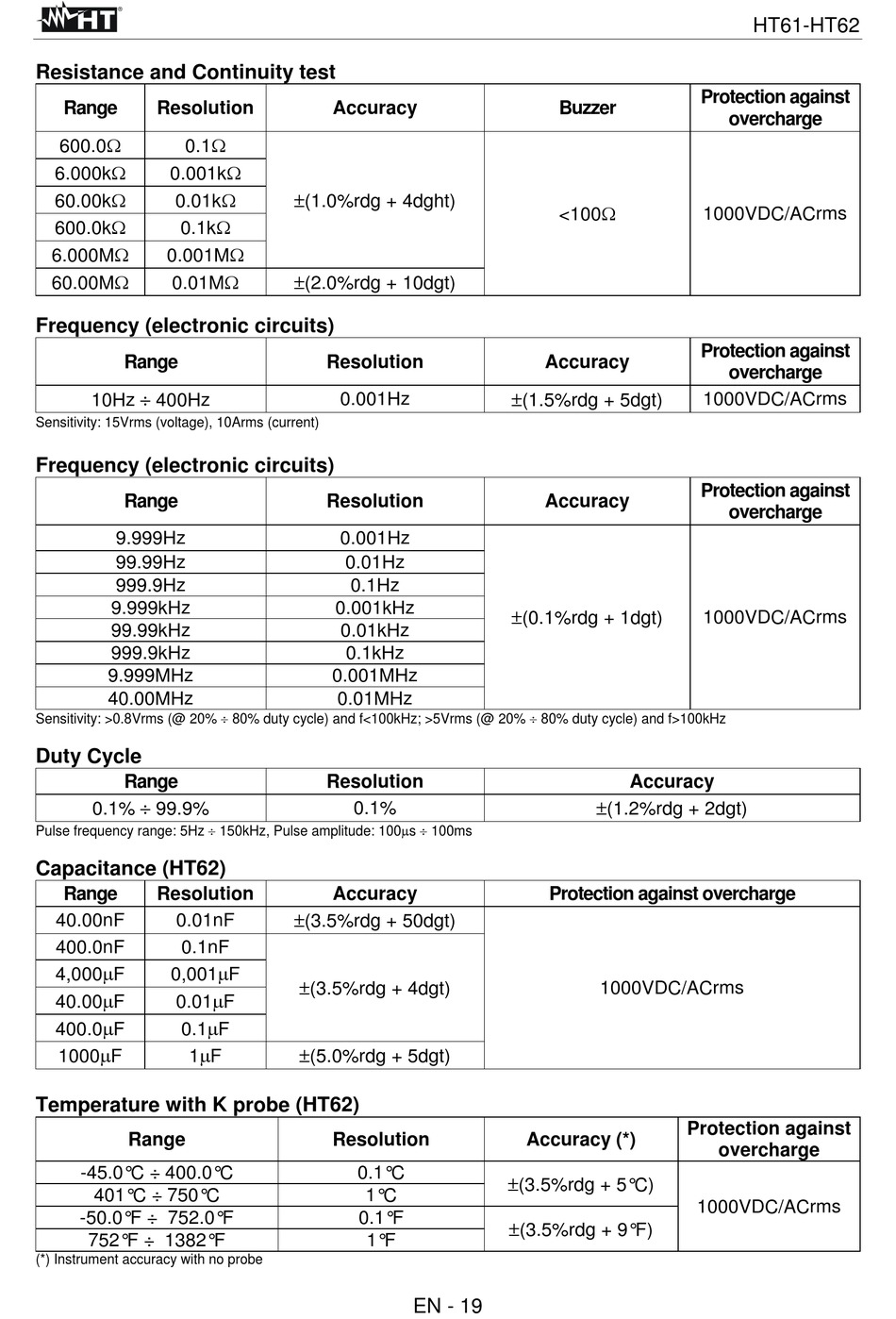

Resistance and Continuity test
Range Resolution
600.0 0.1
6.000k 0.001k
60.00k 0.01k
600.0k 0.1k
6.000M 0.001M
60.00M 0.01M
Frequency (electronic circuits)
Range
10Hz  400Hz
Sensitivity: 15Vrms (voltage), 10Arms (current)
Frequency (electronic circuits)
Range
9.999Hz
99.99Hz
999.9Hz
9.999kHz
99.99kHz
999.9kHz
9.999MHz
40.00MHz
Sensitivity: >0.8Vrms (@ 20%  80% duty cycle) and f<100kHz; >5Vrms (@ 20%  80% duty cycle) and f>100kHz
Duty Cycle
Range
0.1%  99.9%
Pulse frequency range: 5Hz  150kHz, Pulse amplitude: 100s  100ms
Capacitance (HT62)
Range Resolution
40.00nF 0.01nF
400.0nF 0.1nF
4,000F 0,001F
40.00F 0.01F
400.0F 0.1F
1000F 1F
Temperature with K probe (HT62)
Range
-45.0°C ÷ 400.0°C
401°C ÷ 750°C
-50.0°F ÷ 752.0°F
752°F ÷ 1382°F
(*) Instrument accuracy with no probe
Accuracy
(1.0%rdg + 4dght)
(2.0%rdg + 10dgt)
Resolution
0.001Hz
Resolution
0.001Hz
0.01Hz
0.1Hz
0.001kHz
0.01kHz
0.1kHz
0.001MHz
0.01MHz
Resolution
0.1%
Accuracy
(3.5%rdg + 50dgt)
(3.5%rdg + 4dgt)
(5.0%rdg + 5dgt)
Resolution
0.1°C
1°C
0.1°F
1°F
EN - 19
Buzzer
<100
Accuracy
(1.5%rdg + 5dgt)
Accuracy
(0.1%rdg + 1dgt)
Accuracy
(1.2%rdg + 2dgt)
Protection against overcharge
1000VDC/ACrms
Accuracy (*)
(3.5%rdg + 5°C)
(3.5%rdg + 9°F)
HT61-HT62
Protection against
overcharge
1000VDC/ACrms
Protection against
overcharge
1000VDC/ACrms
Protection against
overcharge
1000VDC/ACrms
Protection against
overcharge
1000VDC/ACrms
