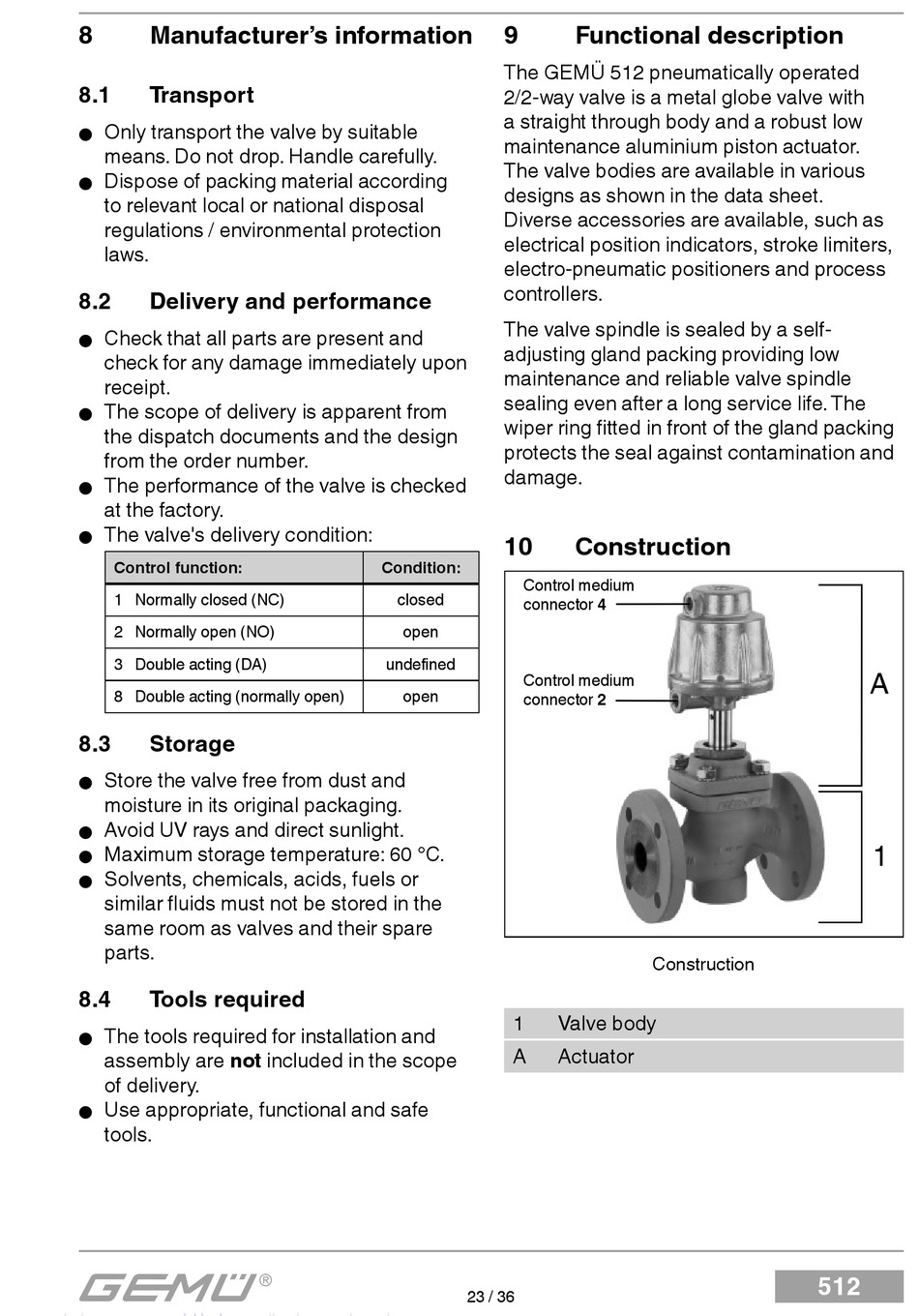

Manufacturer's Information; Transport; Delivery And Performance; Storage - Gemü 512 Original Einbau- Und Montageanleitung

8

Manufacturer's information

8.1

Transport

Only transport the valve by suitable
G
means. Do not drop. Handle carefully.
Dispose of packing material according
G
to relevant local or national disposal
regulations / environmental protection
laws.
8.2

Delivery and performance

Check that all parts are present and
G
check for any damage immediately upon
receipt.
The scope of delivery is apparent from
G
the dispatch documents and the design
from the order number.
The performance of the valve is checked
G
at the factory.
The valve's delivery condition:
G
Control function:
1 Normally closed (NC)
2 Normally open (NO)
3 Double acting (DA)
8 Double acting (normally open)
8.3

Storage

Store the valve free from dust and
G
moisture in its original packaging.
Avoid UV rays and direct sunlight.
G
Maximum storage temperature: 60 °C.
G
Solvents, chemicals, acids, fuels or
G
similar fl uids must not be stored in the
same room as valves and their spare
parts.
8.4

Tools required

The tools required for installation and
G
assembly are not included in the scope
of delivery.
Use appropriate, functional and safe
G
tools.
9
The GEMÜ 512 pneumatically operated
2/2-way valve is a metal globe valve with
a straight through body and a robust low
maintenance aluminium piston actuator.
The valve bodies are available in various
designs as shown in the data sheet.
Diverse accessories are available, such as
electrical position indicators, stroke limiters,
electro-pneumatic positioners and process
controllers.
The valve spindle is sealed by a self-
adjusting gland packing providing low
maintenance and reliable valve spindle
sealing even after a long service life. The
wiper ring fitted in front of the gland packing
protects the seal against contamination and
damage.
10
Condition:
Control medium
closed
connector 4
open
undefined
Control medium
open
connector 2
1
A
23 / 36

Functional description

Construction

Construction
Valve body
Actuator
A
1
512
