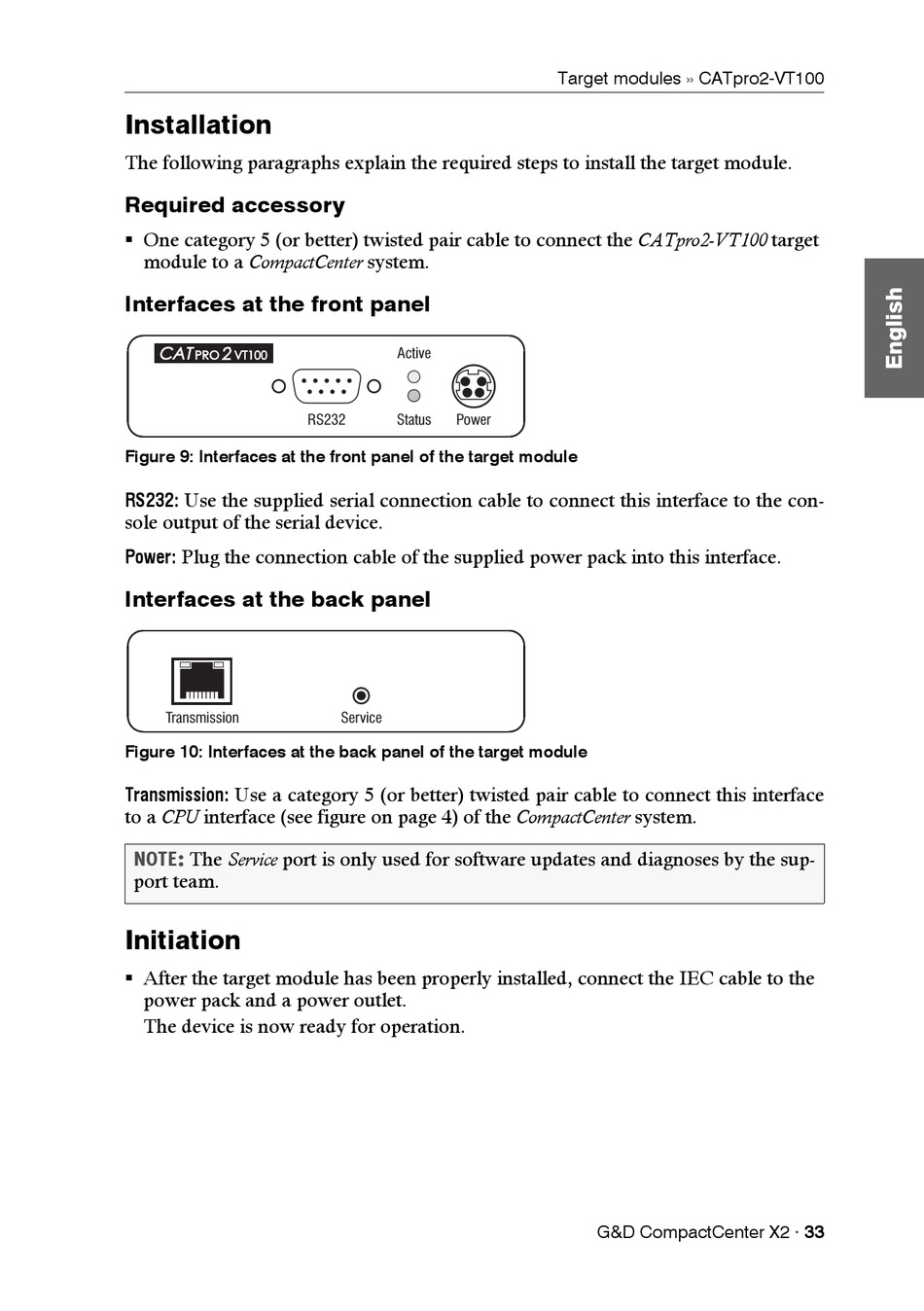

Installation

The following paragraphs explain the required steps to install the target module.

Required accessory

 One category 5 (or better) twisted pair cable to connect the CATpro2-VT100 target
module to a CompactCenter system.

Interfaces at the front panel

Figure 9: Interfaces at the front panel of the target module
RS232: Use the supplied serial connection cable to connect this interface to the con-
sole output of the serial device.
Plug the connection cable of the supplied power pack into this interface.
Power:

Interfaces at the back panel

Transmission
Figure 10: Interfaces at the back panel of the target module
Use a category 5 (or better) twisted pair cable to connect this interface
Transmission:
to a CPU interface (see figure on page 4) of the CompactCenter system.
NOTE: The Service port is only used for software updates and diagnoses by the sup-
port team.

Initiation

 After the target module has been properly installed, connect the IEC cable to the
power pack and a power outlet.
The device is now ready for operation.
Active
Power
RS232 Status
Service
Target modules » CATpro2-VT100
G&D CompactCenter X2 · 33
