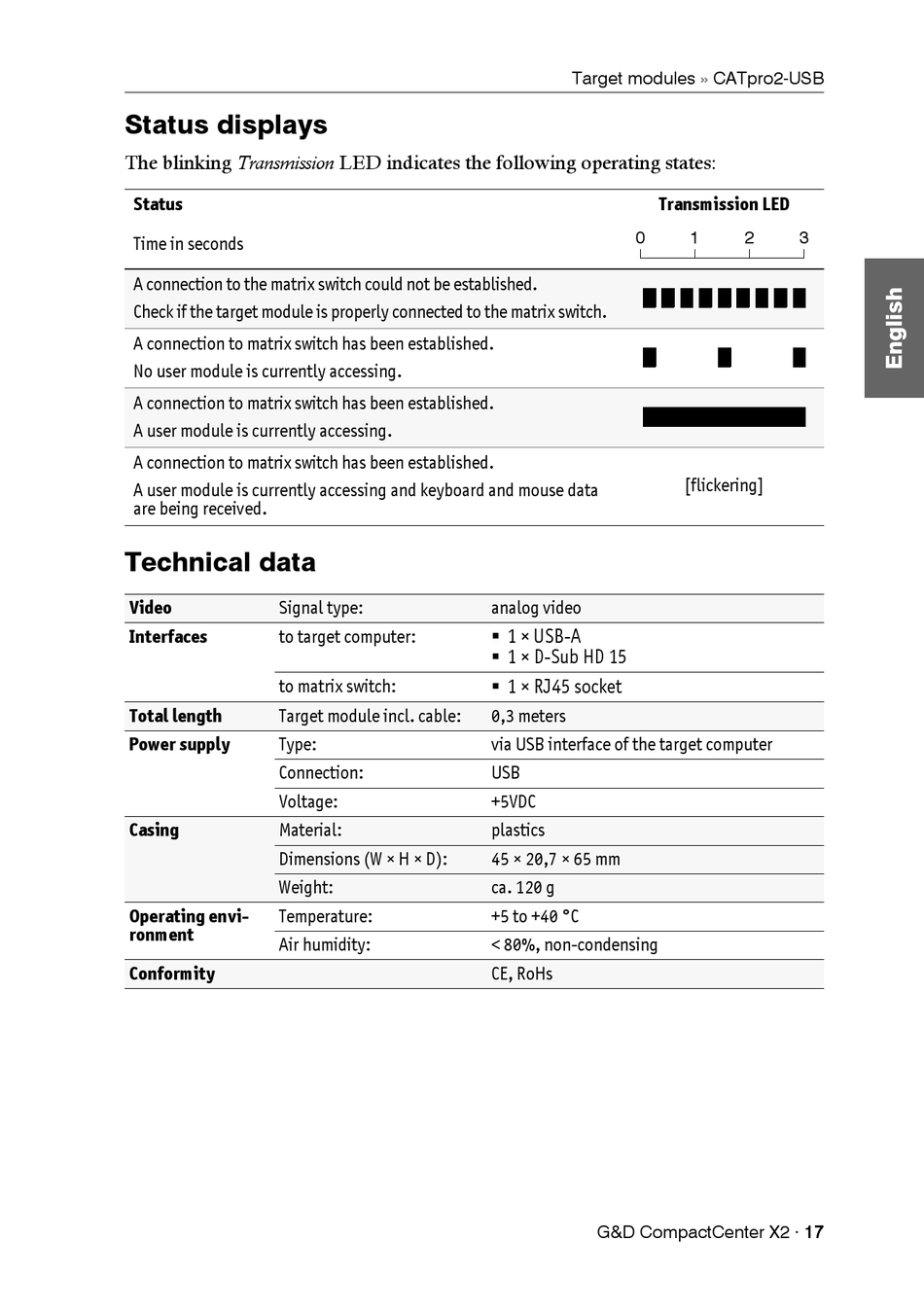

Status displays

The blinking Transmission LED indicates the following operating states:
Status
Time in seconds
A connection to the matrix switch could not be established.
Check if the target module is properly connected to the matrix switch.
A connection to matrix switch has been established.
No user module is currently accessing.
A connection to matrix switch has been established.
A user module is currently accessing.
A connection to matrix switch has been established.
A user module is currently accessing and keyboard and mouse data
are being received.

Technical data

Video Signal type:
Interfaces to target computer:
to matrix switch:
Total length Target module incl. cable:
Power supply Type:
Connection:
Voltage:
Casing Material:
Dimensions (W × H × D):
Weight:
Operating envi- Temperature:
ronment
Air humidity:
Conformity
Target modules
Transmission LED
0
analog video
 1 × USB-A
 1 × D-Sub HD 15
 1 × RJ45 socket
0,3 meters
via USB interface of the target computer
USB
+5VDC
plastics
45 × 20,7 × 65 mm
ca. 120 g
+5 to +40 °C
< 80%, non-condensing
CE, RoHs
G&D CompactCenter X2 · 17
» CATpro2-USB
1 2 3
[flickering]
