CATpro2-PS/2 « Target modules

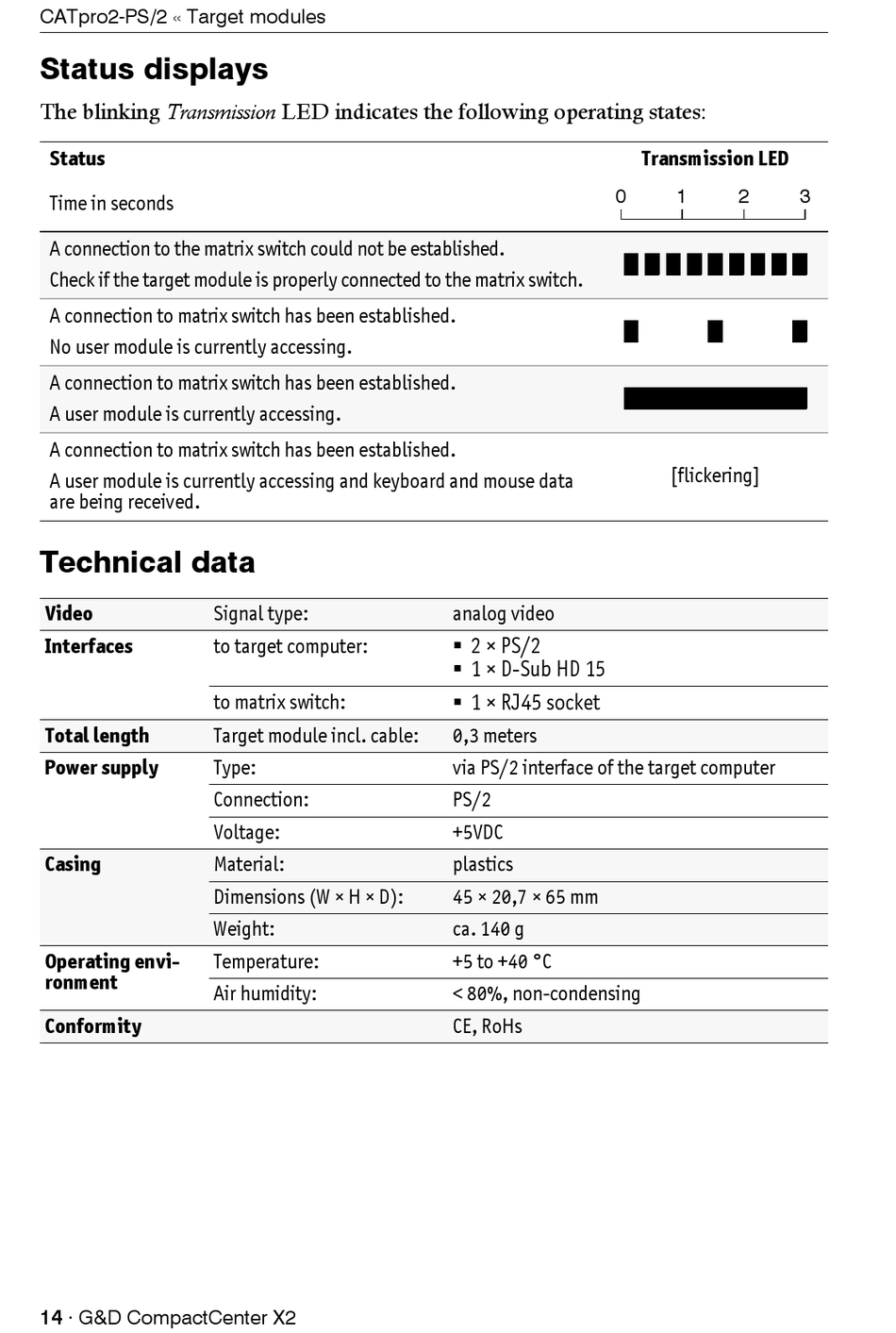

Status displays

The blinking Transmission LED indicates the following operating states:
Status
Time in seconds
A connection to the matrix switch could not be established.
Check if the target module is properly connected to the matrix switch.
A connection to matrix switch has been established.
No user module is currently accessing.
A connection to matrix switch has been established.
A user module is currently accessing.
A connection to matrix switch has been established.
A user module is currently accessing and keyboard and mouse data
are being received.

Technical data

Video
Interfaces
Total length
Power supply
Casing
Operating envi-
ronment
Conformity
14 · G&D CompactCenter X2
Signal type:
to target computer:
to matrix switch:
Target module incl. cable:
Type:
Connection:
Voltage:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
0
analog video
 2 × PS/2
 1 × D-Sub HD 15
 1 × RJ45 socket
0,3 meters
via PS/2 interface of the target computer
PS/2
+5VDC
plastics
45 × 20,7 × 65 mm
ca. 140 g
+5 to +40 °C
< 80%, non-condensing
CE, RoHs
Transmission LED
1 2 3
[flickering]
