Status Displays

LEDs at the front panel

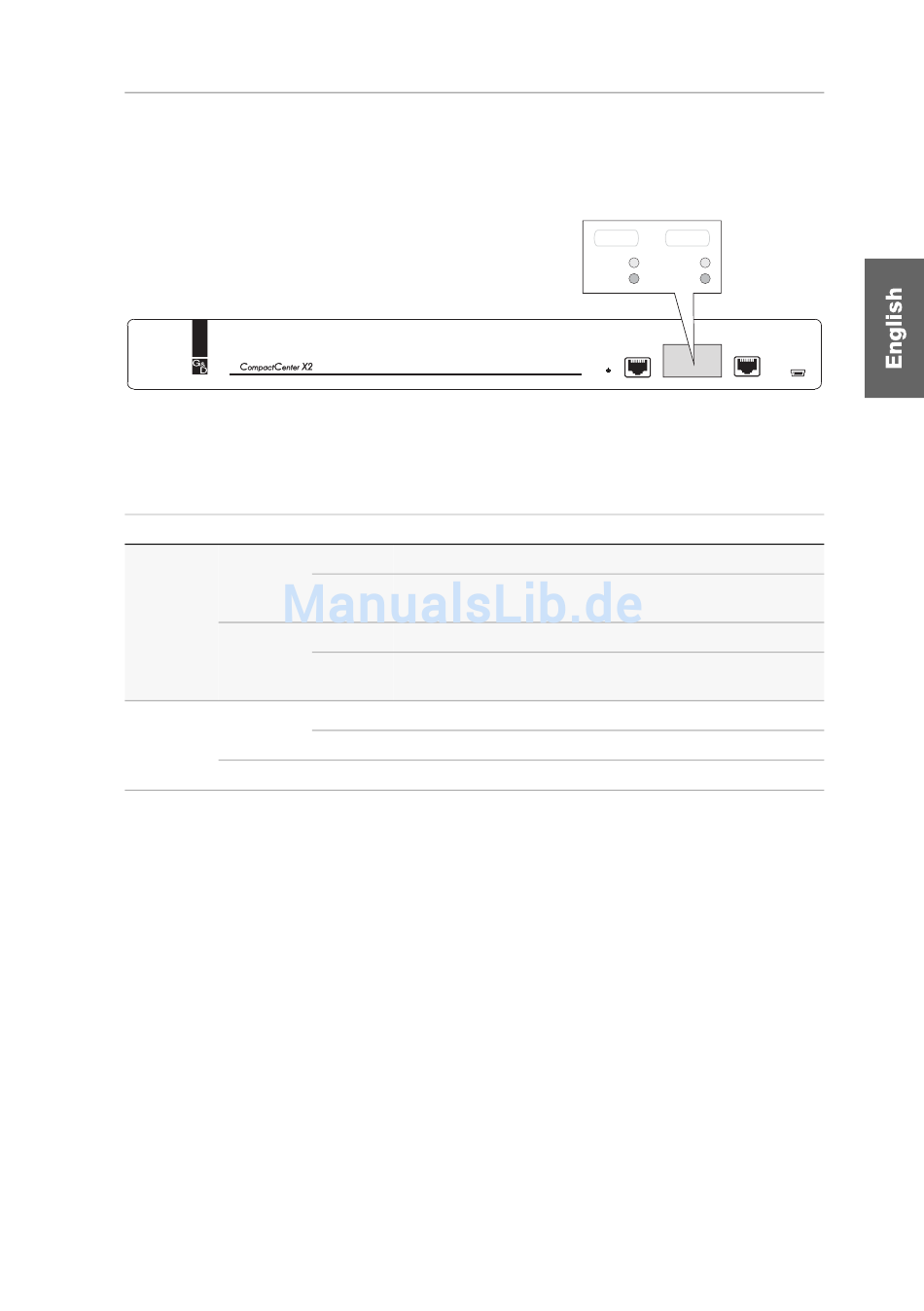

Figure 3: Status displays at the front panel of the matrix switch
The LEDs at the front panel of the matrix switch enable you to control the system's
operating status at all times:
Section LED
Power Red.
Main
Status Ready
Switch
Table 1: Status displays at the front panel of the matrix switch
Status Meaning
on The power pack is turned on and supplies the required voltage.
off The power pack is turned off or the connection to the mains
could not be established.
on The power pack is turned on and supplies the required voltage.
off The power pack is turned off or the connection to the mains
could not be established.
blinking The network subsystem works perfectly.
off No network function is being supported.
blinking Matrix switch ready for operation.
Matrix switch » Status Displays
Power Status
Red. Ready
Main Switch
RS485 RS232
G&D CompactCenter X2 · 9
