CATpro2-VT100 « Target modules

Status displays

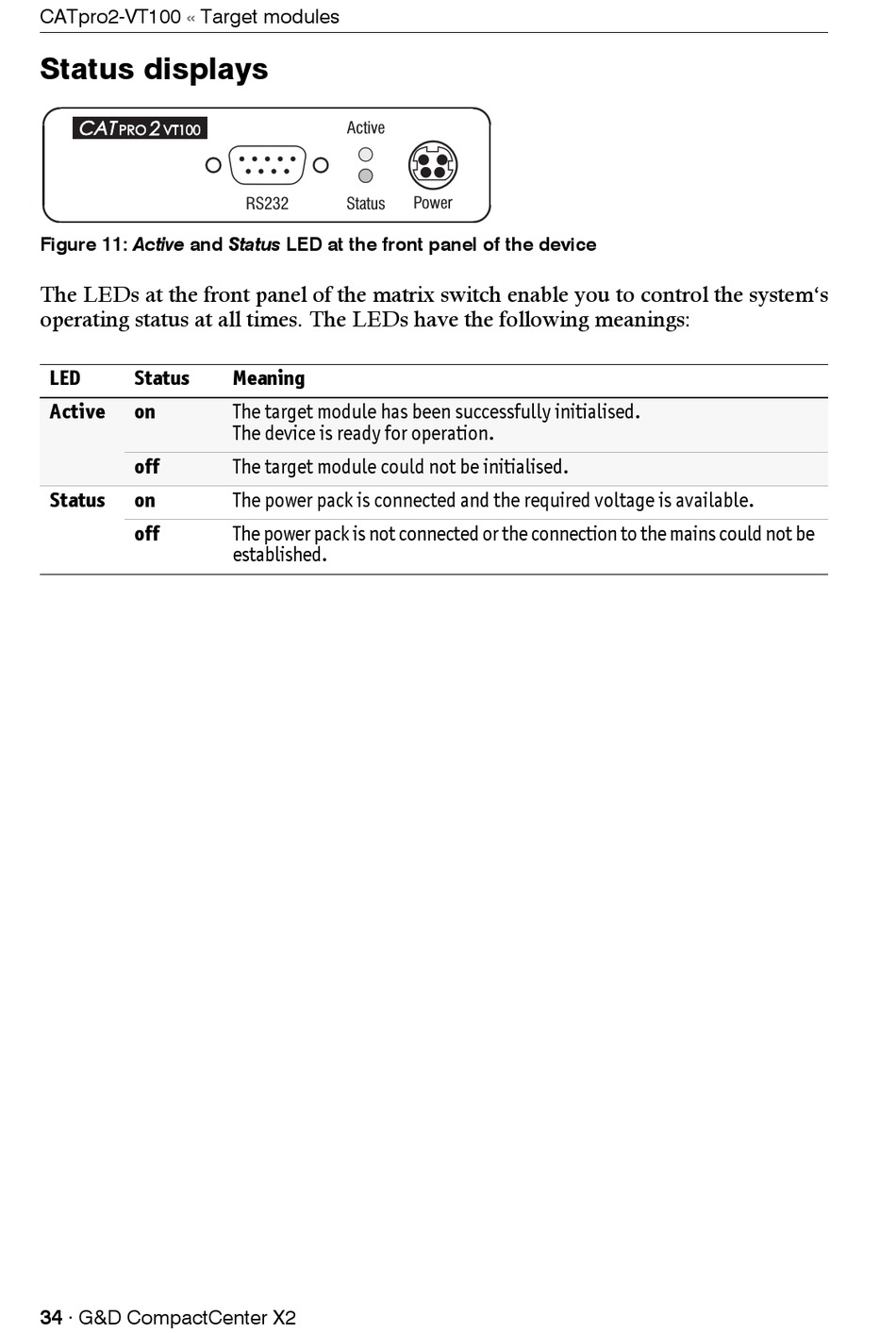

Figure 11: Active and Status LED at the front panel of the device
The LEDs at the front panel of the matrix switch enable you to control the system's
operating status at all times. The LEDs have the following meanings:
LED Status
Active on
off
Status on
off
34 · G&D CompactCenter X2
Active
RS232 Status
Meaning
The target module has been successfully initialised. 
The device is ready for operation.
The target module could not be initialised.
The power pack is connected and the required voltage is available.
The power pack is not connected or the connection to the mains could not be
established.
Power
