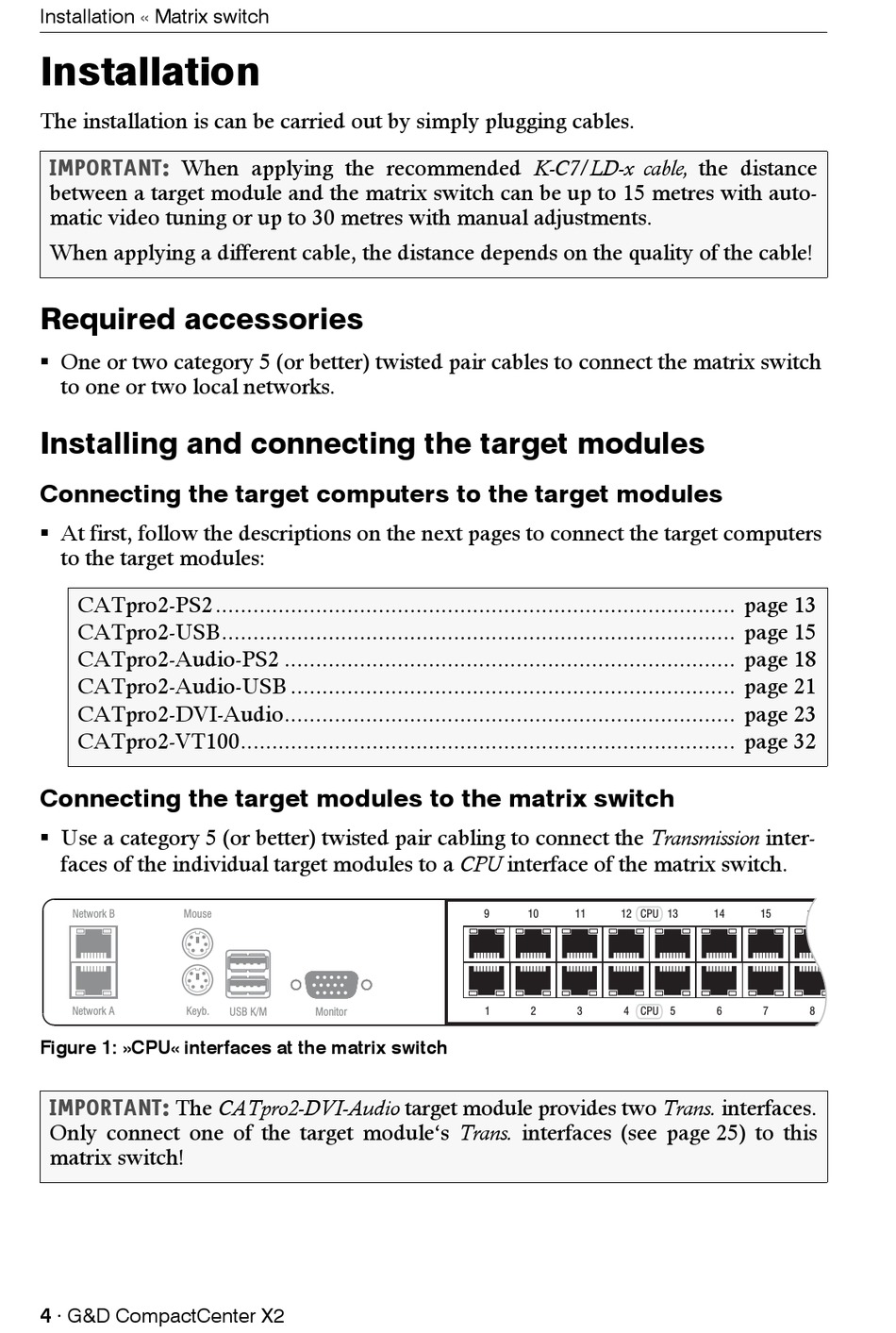

Installation
«
Matrix switch
Installation
The installation is can be carried out by simply plugging cables.
IMPORTANT:
When applying the recommended K-C7/LD-x cable, the distance
between a target module and the matrix switch can be up to 15 metres with auto-
matic video tuning or up to 30 metres with manual adjustments.
When applying a different cable, the distance depends on the quality of the cable!
Required accessories
One or two category 5 (or better) twisted pair cables to connect the matrix switch
to one or two local networks.
Installing and connecting the target modules
Connecting the target computers to the target modules
At first, follow the descriptions on the next pages to connect the target computers
to the target modules:
CATpro2-PS2 ................................................................................... page 13
CATpro2-USB.................................................................................. page 15
CATpro2-Audio-PS2 ........................................................................ page 18
CATpro2-Audio-USB ....................................................................... page 21
CATpro2-DVI-Audio........................................................................ page 23
CATpro2-VT100............................................................................... page 32
Connecting the target modules to the matrix switch
Use a category 5 (or better) twisted pair cabling to connect the Transmission inter-
faces of the individual target modules to a CPU interface of the matrix switch.
Network B
Mouse
Network A
Keyb.
Figure 1: »CPU« interfaces at the matrix switch
IMPORTANT:
The CATpro2-DVI-Audio target module provides two Trans. interfaces.
Only connect one of the target module's Trans. interfaces (see page 25) to this
matrix switch!
4 · G&D CompactCenter X2
USB K/M
Monitor
9
10
11
12
CPU
1
2
3
4
CPU
13
14
15
16
5
6
7
8
