CATpro2-USB « Target modules

Installation

The following paragraphs explain the required steps to install the target module.

Required accessory

 One category 5 (or better) twisted pair cable to connect the CATpro2-USB target
module to a CompactCenter system.

Connecting the target computer




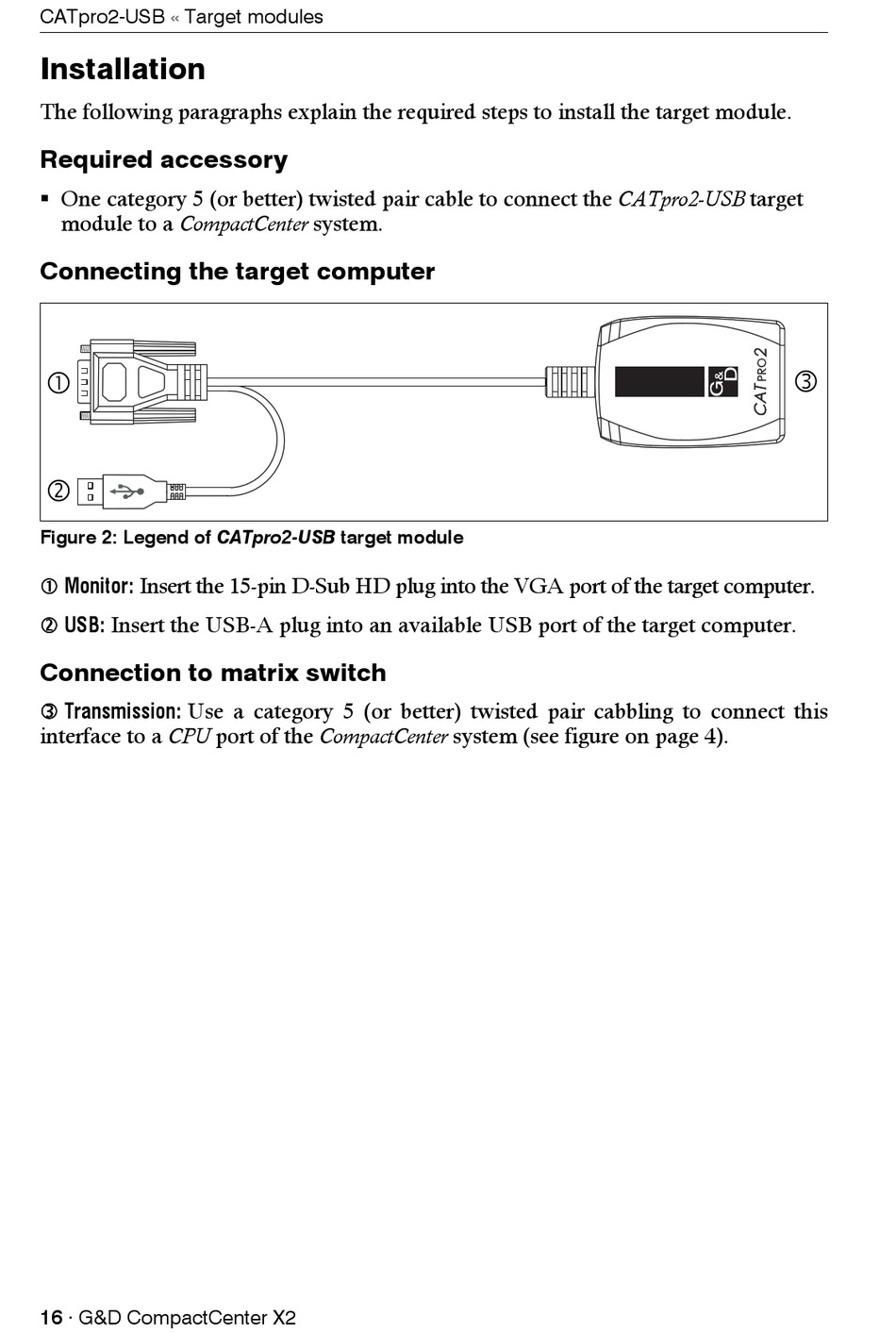

Figure 2: Legend of CATpro2-USB target module
Insert the 15-pin D-Sub HD plug into the VGA port of the target computer.
 Monitor:
 USB: Insert the USB-A plug into an available USB port of the target computer.

Connection to matrix switch

 Transmission: Use a category 5 (or better) twisted pair cabbling to connect this
interface to a CPU port of the CompactCenter system (see figure on page 4).
16 · G&D CompactCenter X2

