Status Displays « Matrix switch
LEDs at the back panel
Network B Mouse
Network A Keyb. USB K/M

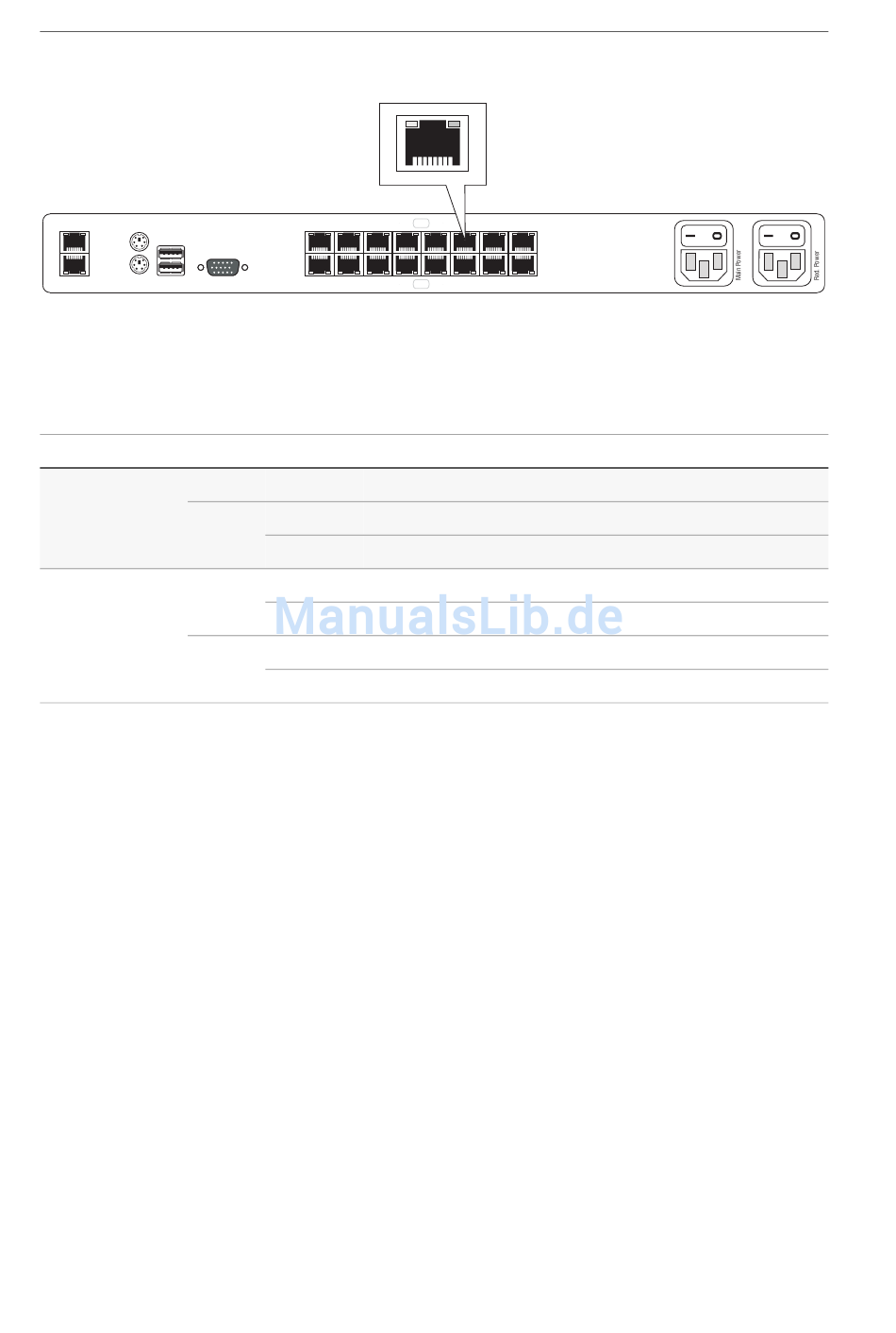

Figure 4: Status displays at the RJ45 interfaces of the matrix switch
Each RJ45 interface at the back panel of the matrix switch provides additional status
LEDs. Those LEDs have the following meanings:
Interface LED
Network left
right
CPU yellow on
green
Table 2: Status displays at the RJ45 interfaces of the matrix switch
10 · G&D CompactCenter X2
9 10 11
Monitor 1 2 3
Status Meaning
green Activity at the network interface.
green Active 1 GBit/s connection.
yellow Active 10 or 100 Mbit/s connection.
Port is currently occupied by a user.
off Port is available.
on Connection to the target module has been established.
off The target module is currently not accessing the system.
12 CPU 13 15 16
4 CPU 5 6 7 8
