»CATpro2-Audio-USB« target module
The CATpro2-Audio-USB target module enables you to integrate a computer with
analog video output into a CompactCenter system.

Scope of delivery

 1 × CATpro2-Audio-USB target module

Installation

Required accessory

 One category 5 (or better) twisted pair cable to connect the CATpro2-Audio-USB
target module to a CompactCenter system.

Connecting the target computer





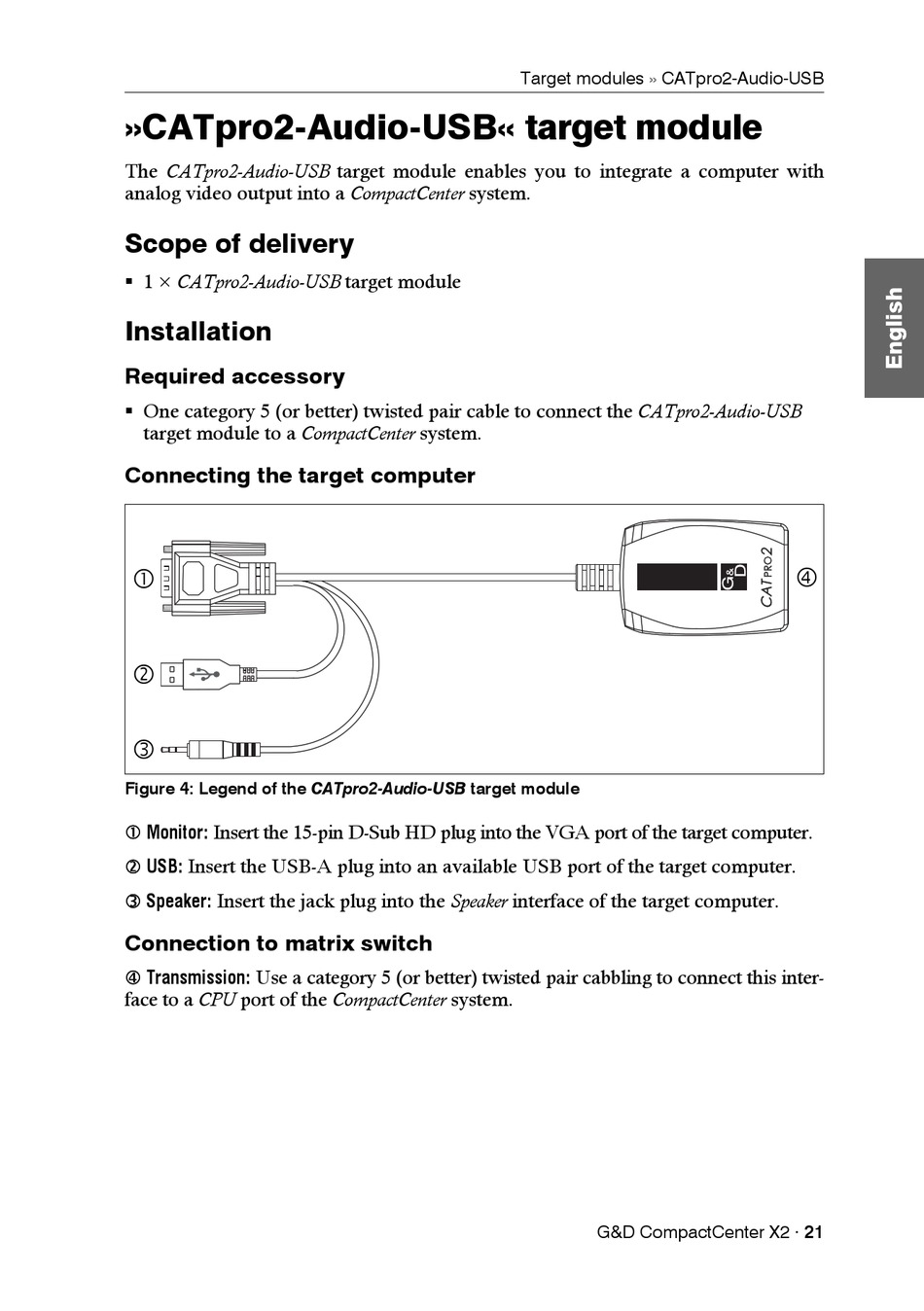

Figure 4: Legend of the CATpro2-Audio-USB target module
Insert the 15-pin D-Sub HD plug into the VGA port of the target computer.
 Monitor:
 USB: Insert the USB-A plug into an available USB port of the target computer.
Insert the jack plug into the Speaker interface of the target computer.
 Speaker:

Connection to matrix switch

 Transmission: Use a category 5 (or better) twisted pair cabbling to connect this inter-
face to a CPU port of the CompactCenter system.
Target modules » CATpro2-Audio-USB
G&D CompactCenter X2 · 21

