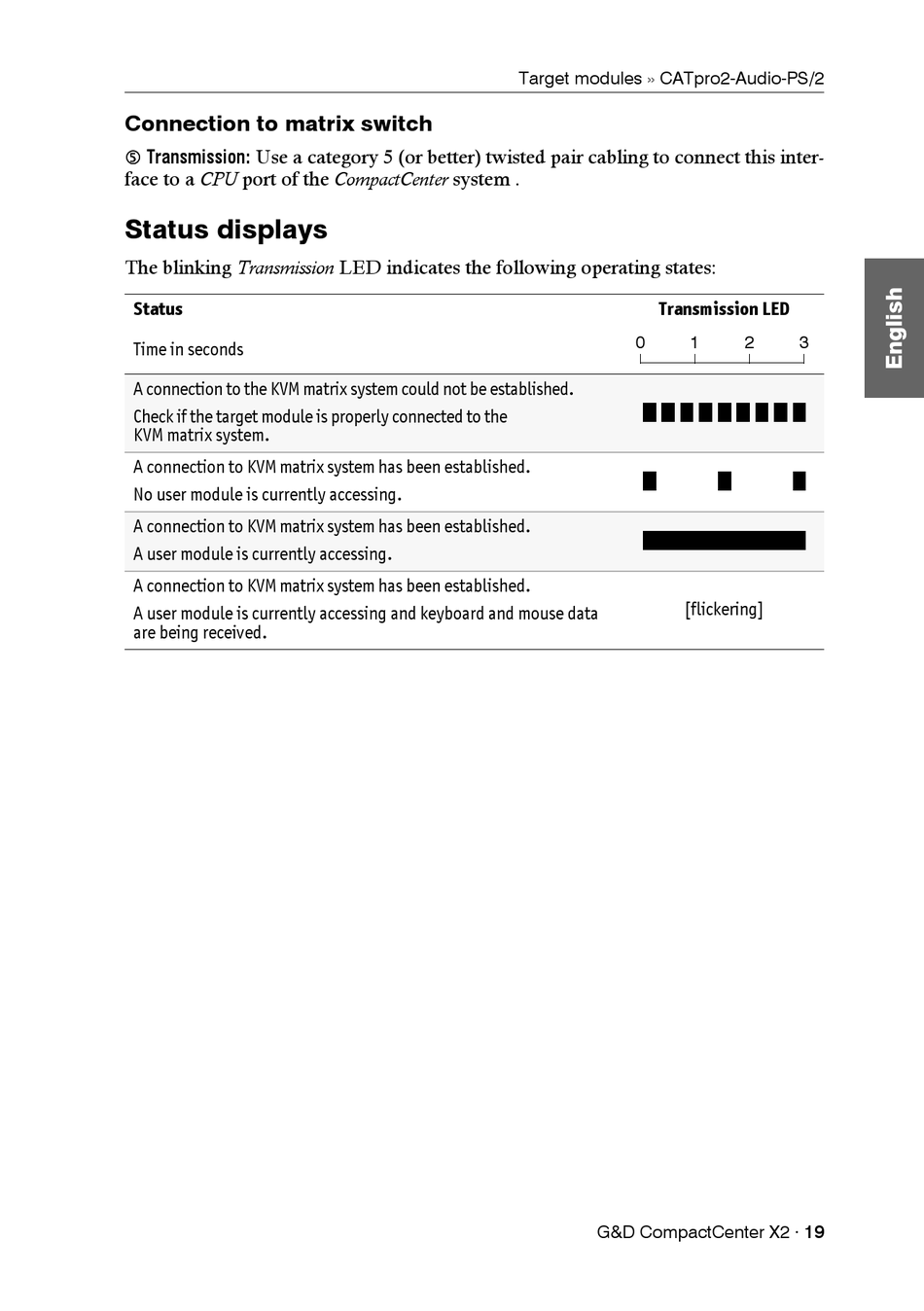

Connection to matrix switch

Use a category 5 (or better) twisted pair cabling to connect this inter-
 Transmission:
face to a CPU port of the CompactCenter system .

Status displays

The blinking Transmission LED indicates the following operating states:
Status
Time in seconds
A connection to the KVM matrix system could not be established.
Check if the target module is properly connected to the 
KVM matrix system.
A connection to KVM matrix system has been established.
No user module is currently accessing.
A connection to KVM matrix system has been established.
A user module is currently accessing.
A connection to KVM matrix system has been established.
A user module is currently accessing and keyboard and mouse data
are being received.
Target modules » CATpro2-Audio-PS/2
Transmission LED
0 1
[flickering]
G&D CompactCenter X2 · 19
2 3
