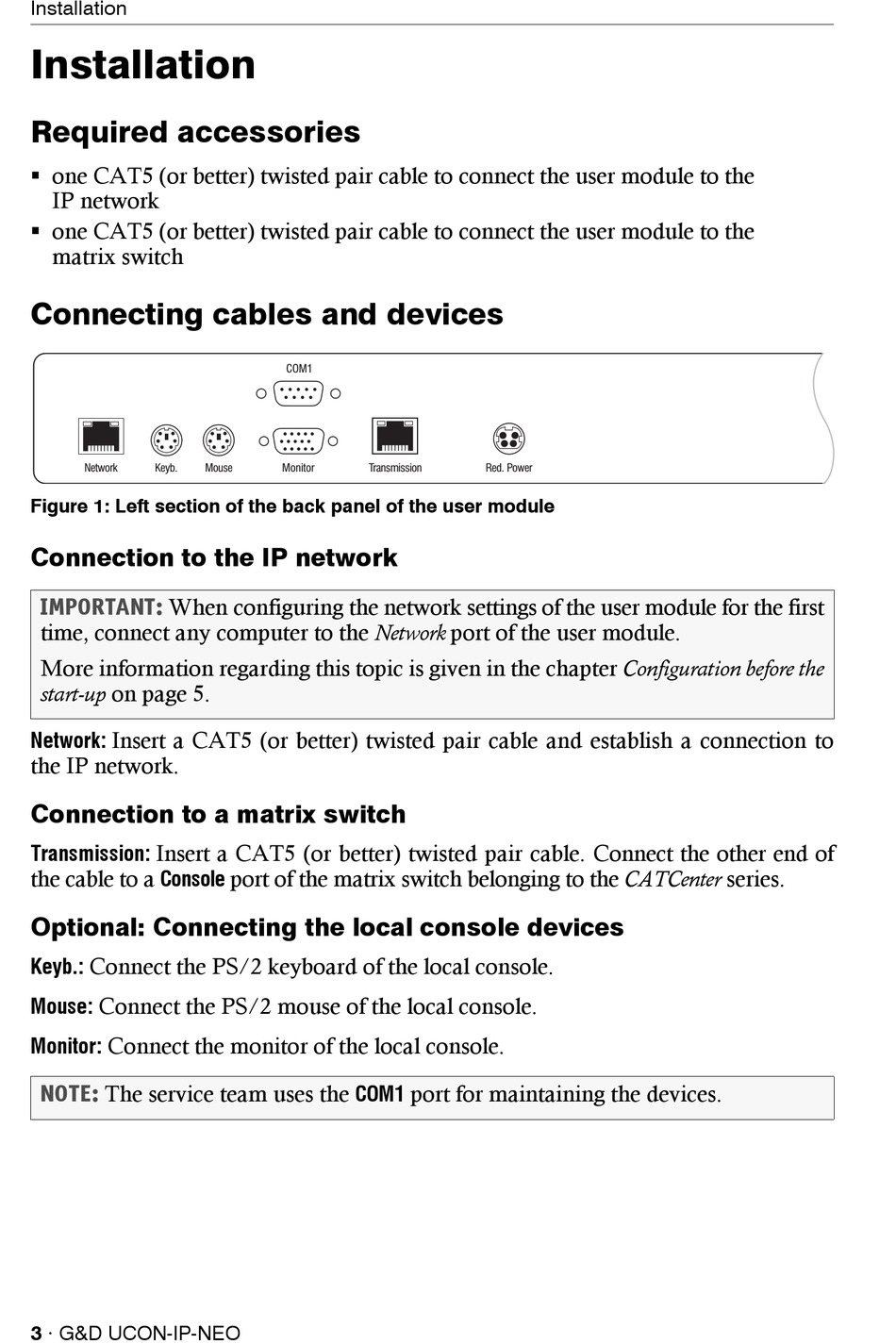

Installation

Installation

Required accessories

 one CAT5 (or better) twisted pair cable to connect the user module to the 
IP network
 one CAT5 (or better) twisted pair cable to connect the user module to the 
matrix switch

Connecting cables and devices

Network Keyb.
Figure 1: Left section of the back panel of the user module

Connection to the IP network

IMPORTANT: When configuring the network settings of the user module for the first
time, connect any computer to the Network port of the user module.
More information regarding this topic is given in the chapter Configuration before the
start-up on page 5.
Network: Insert a CAT5 (or better) twisted pair cable and establish a connection to
the IP network.

Connection to a matrix switch

Insert a CAT5 (or better) twisted pair cable. Connect the other end of
Transmission:
the cable to a
Console

Optional: Connecting the local console devices

Keyb.: Connect the PS/2 keyboard of the local console.
Mouse: Connect the PS/2 mouse of the local console.
Connect the monitor of the local console.
Monitor:
NOTE:
The service team uses the
3 · G&D UCON-IP-NEO
COM1
Mouse Monitor Transmission
port of the matrix switch belonging to the CATCenter series.
COM1
Red. Power
port for maintaining the devices.
