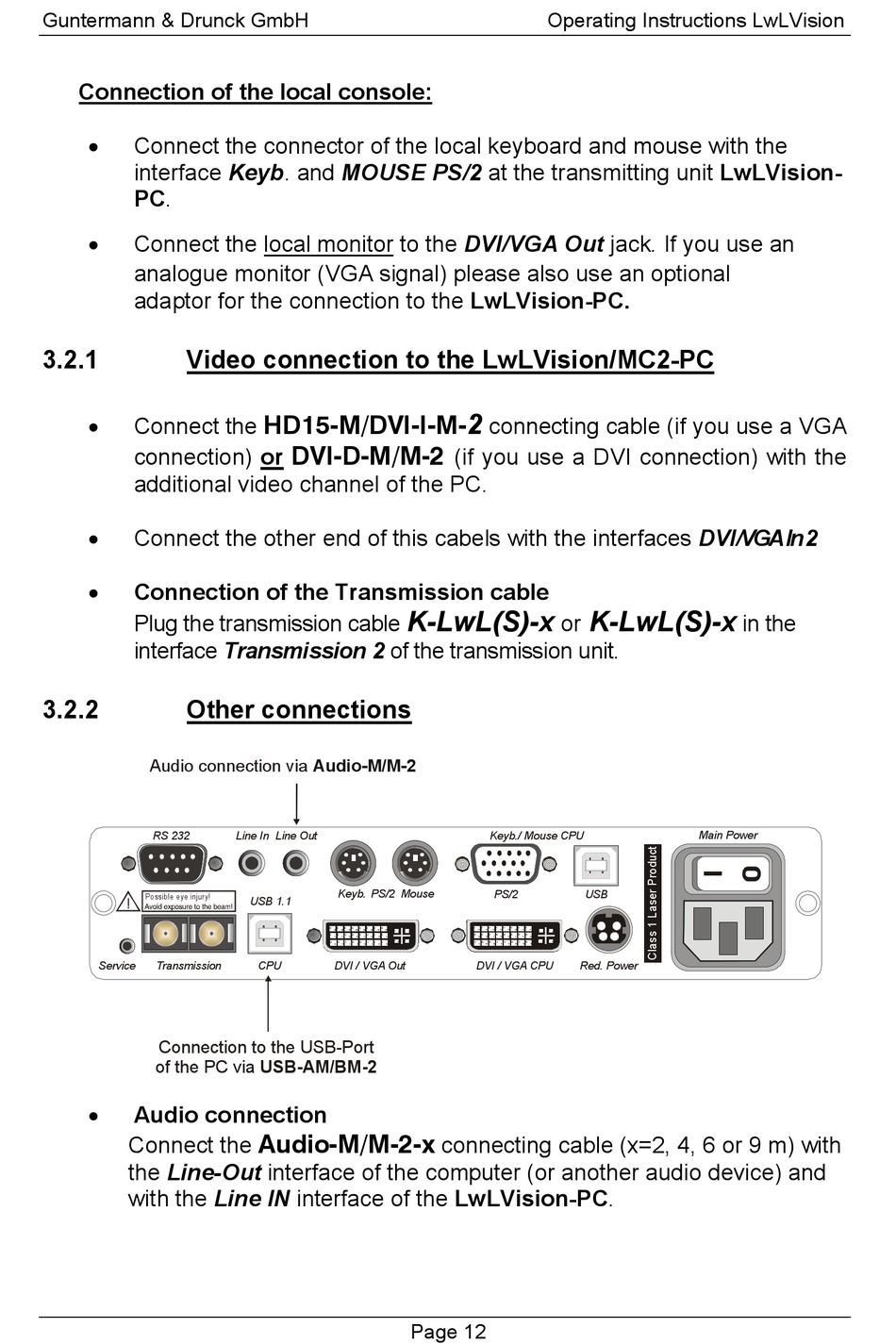

Video Connection To The Lwlvision/Mc2-Pc; Other Connections - Guntermann & Drunck LwLVision-Rem Installation Und Bedienung

Guntermann & Drunck GmbH
Connection of the local console:

Connect the connector of the local keyboard and mouse with the
interface Keyb. and MOUSE PS/2 at the transmitting unit LwLVision-
PC.

Connect the local monitor to the DVI/VGA Out jack. If you use an
analogue monitor (VGA signal) please also use an optional
adaptor for the connection to the LwLVision-PC.
3.2.1

Video connection to the LwLVision/MC2-PC


Connect the
connection) or
additional video channel of the PC.

Connect the other end of this cabels with the interfaces DVI/VGA In 2

Connection of the Transmission cable
Plug the transmission cable
interface Transmission 2 of the transmission unit.
3.2.2

Other connections

Audio connection via
RS 232
Possible eye injury!
!
Service Transmission
Connection to the USB-Port
of the PC via USB-AM/BM-2

Audio connection
Connect the
the Line-Out interface of the computer (or another audio device) and
with the Line IN interface of the LwLVision-PC.
HD15-M/DVI-I-M-
DVI-D-M/M-2
Audio-M/M-2
Line In Line Out
Keyb. PS/2 Mouse
USB 1.1
CPU DVI / VGA Out
Audio-M/M-2-x
Operating Instructions LwLVision
2
connecting cable (if you use a VGA
(if you use a DVI connection) with the
K-LwL(S)-x
or
Keyb./ Mouse CPU
PS/2
DVI / VGA CPU
connecting cable (x=2, 4, 6 or 9 m) with
Page 12
K-LwL(S)-x
in the
Main Power
USB
Red. Power
