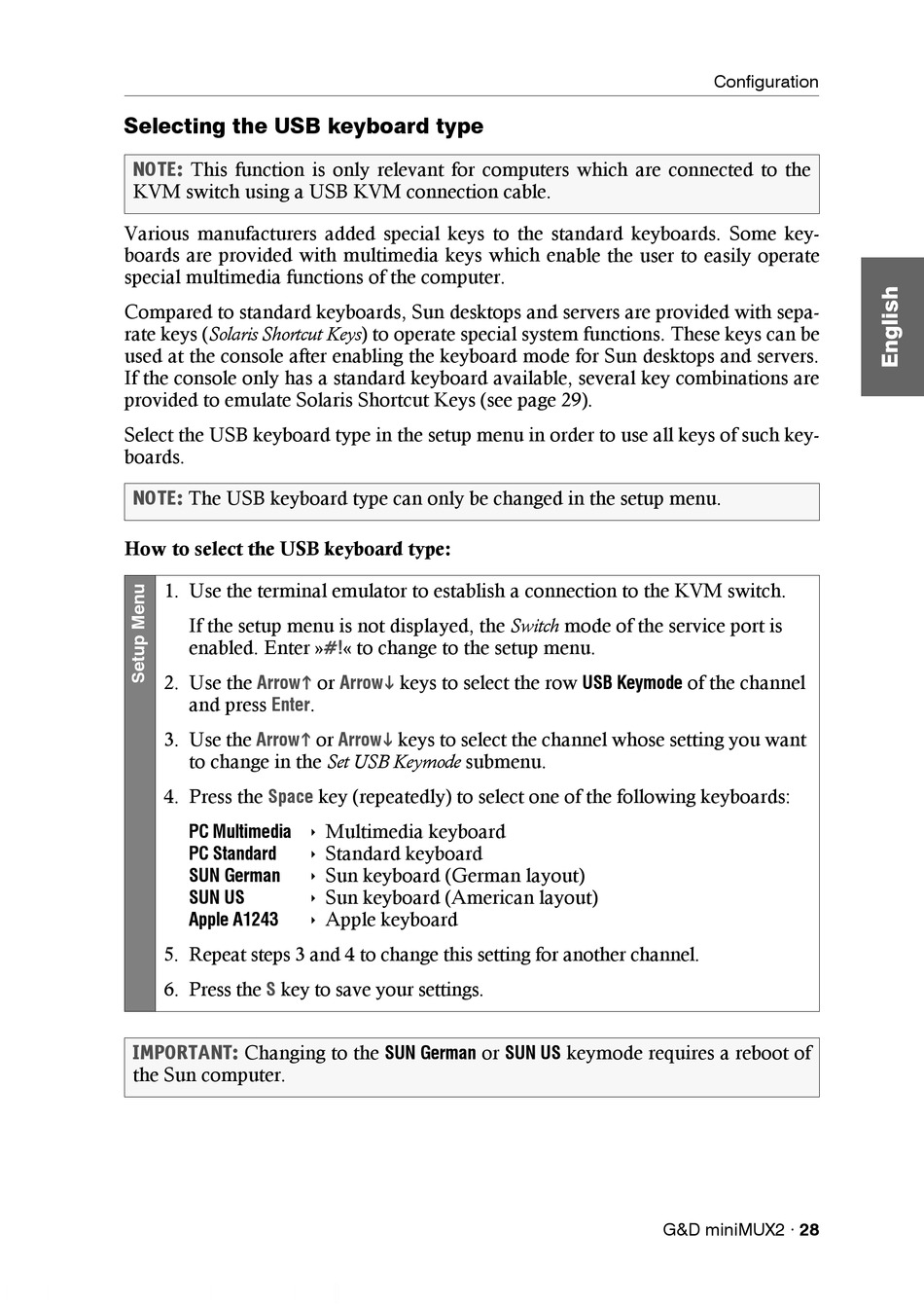

Selecting the USB keyboard type

NOTE:
This function is only relevant for computers which are connected to the
KVM switch using a USB KVM connection cable.
Various manufacturers added special keys to the standard keyboards. Some key-
boards are provided with multimedia keys which enable the user to easily operate
special multimedia functions of the computer.
Compared to standard keyboards, Sun desktops and servers are provided with sepa-
rate keys (Solaris Shortcut Keys) to operate special system functions. These keys can be
used at the console after enabling the keyboard mode for Sun desktops and servers.
If the console only has a standard keyboard available, several key combinations are
provided to emulate Solaris Shortcut Keys (see page 29).
Select the USB keyboard type in the setup menu in order to use all keys of such key-
boards.
NOTE: The USB keyboard type can only be changed in the setup menu.
How to select the USB keyboard type:
1. Use the terminal emulator to establish a connection to the KVM switch.
If the setup menu is not displayed, the Switch mode of the service port is
enabled. Enter »
2. Use the Arrow
and press
Enter
3. Use the
Arrow
to change in the Set USB Keymode submenu.
4. Press the
Space
PC Multimedia
PC Standard
SUN German
SUN US
Apple A1243
5. Repeat steps 3 and 4 to change this setting for another channel.
6. Press the S key to save your settings.
IMPORTANT: Changing to the
the Sun computer.
« to change to the setup menu.
#!
or Arrow keys to select the row
.
or keys to select the channel whose setting you want
Arrow
key (repeatedly) to select one of the following keyboards:
 Multimedia keyboard
 Standard keyboard
 Sun keyboard (German layout)
 Sun keyboard (American layout)
 Apple keyboard
or
SUN German
USB Keymode
keymode requires a reboot of
SUN US
G&D miniMUX2 · 28
Configuration
of the channel
