Installation Instructions CP-5412/Windows NT
Layout of the
CP 5412 (A2)
Setting the DIP
Switch
72

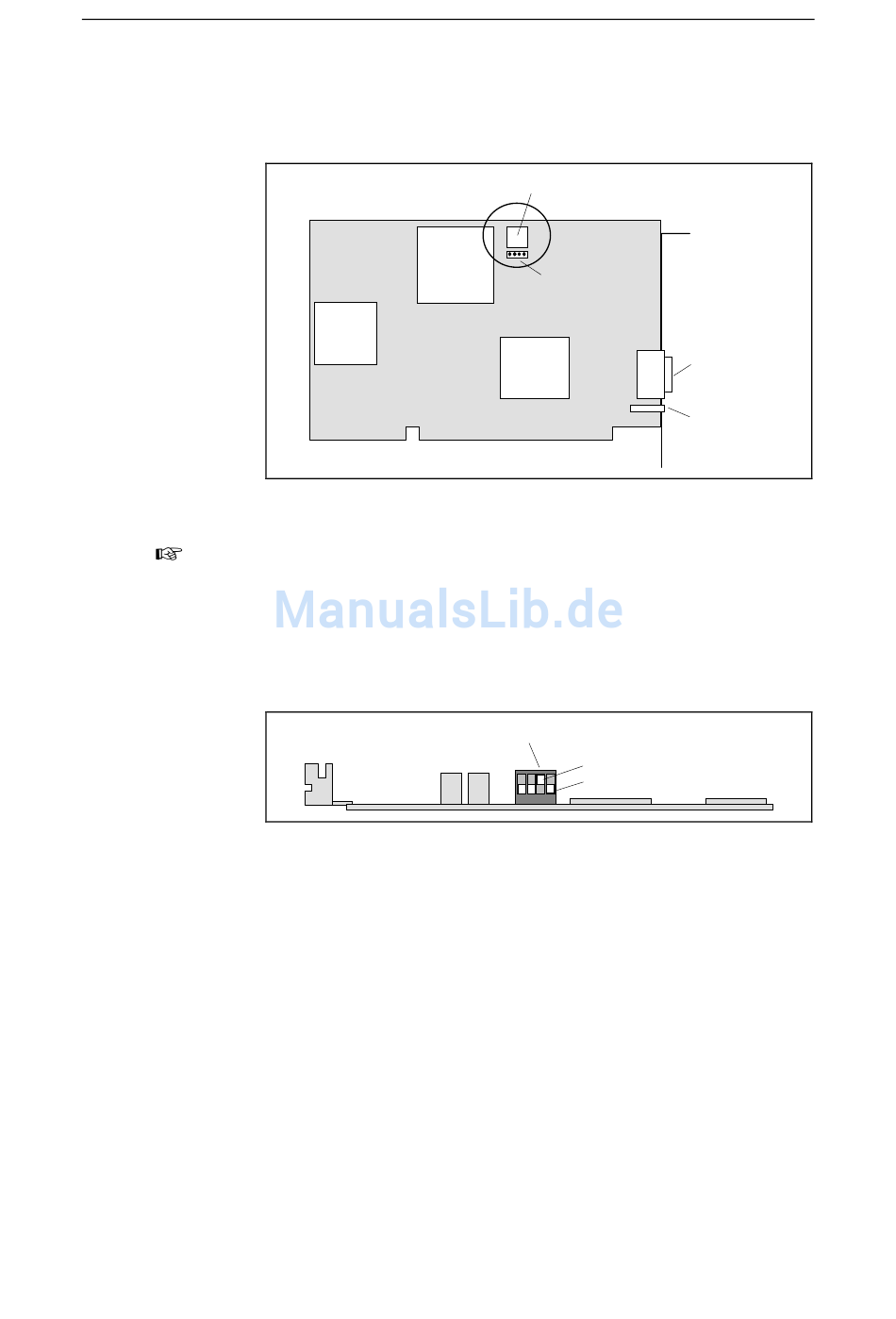

The following diagram shows the layout of the CP 5412 (A2) and the
location of the jumpers for setting the I/O range.
Fig. 6.1 Layout of the CP 5412 (A2)
The connector shown in Fig. 6.1 is for test purposes and must not
be used under any circumstances.
Fig. 6.2 shows the DIP switch on the CP 5412 (A2). The standard
setting for the DIP switch is "0000".
Fig. 6.2 DIP Switch Setting
DIP switch
Test connector
Do not use !!!
DIP switch
Switch up = "1"
Switch down = "0"
1 2 3 4
Installationsanleitung CP-5412/Windows NT
PROFIBUS-
connection
LED for bus
activity
C79000-B8274-C375-02
