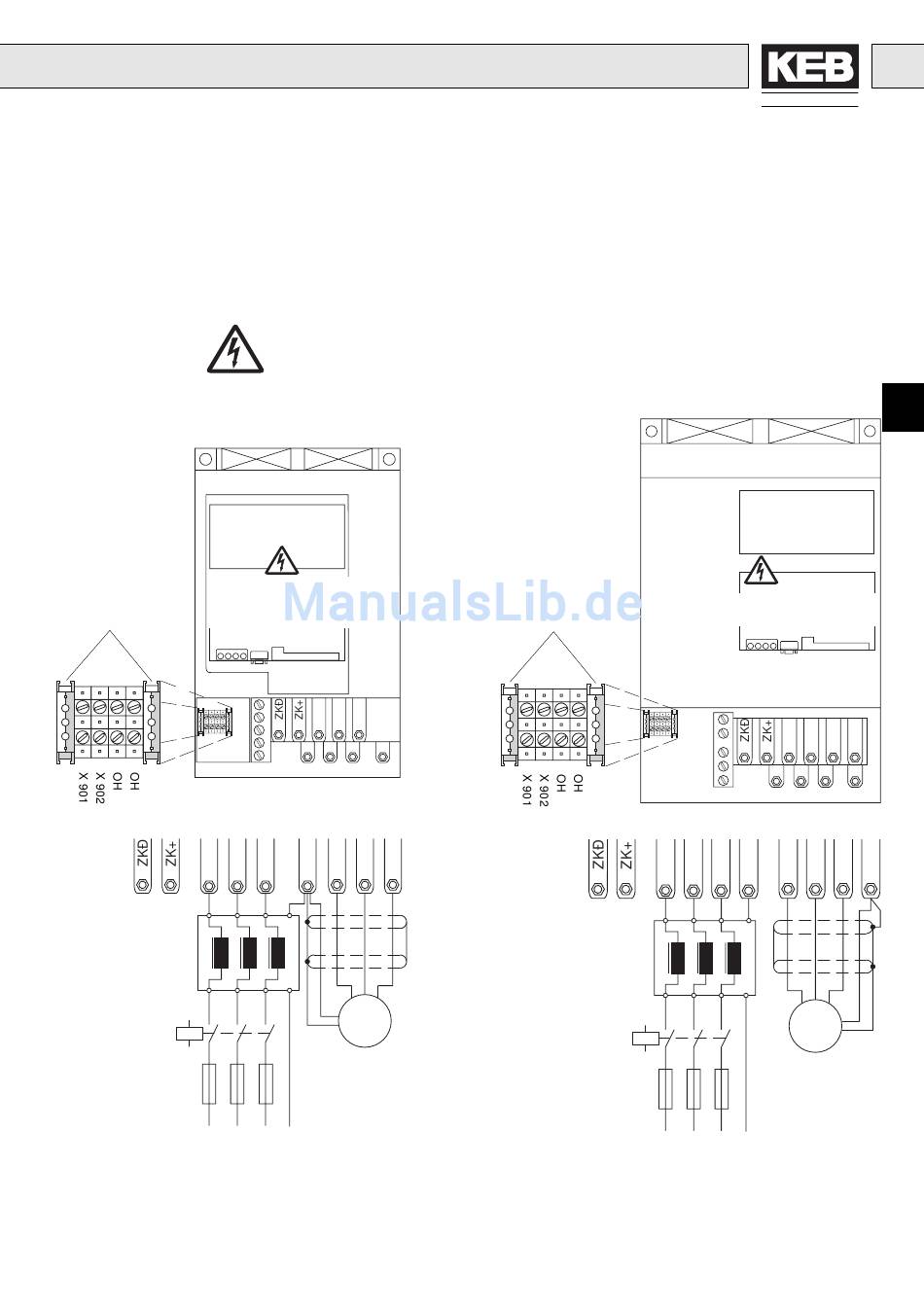

Power Circuit
Prior to working on the unit
disonnect it from the mains
and wait for ca. 15 min!
only for shielding
PE PE
L1 L2 L3
L1
L1, L2, L3 Mains supply (3 phasea)
ZK+,ZK- DC voltage intermediate circuit
Connection external braking option
U, V, W Motor
PE Protective earth conductor
OH, OH External temperature surveillance (see page E28 for connection and function)
X901, X902 ! mains voltage potential !
Do not assign – Terminals reserved for optional application
U V W
PE
L1 L2 L3
U V W
PE
M
3 ~
Connect extensive
shield to the motor
housing!
PE
L2 L3
Connection Size 23...28
Prior to working on the unit disonnect it
from the mains and wait for ca. 15 min!
only for shielding
PE PE
L1 L2 L3
L1
ANTRIEBSTECHNIK
U V W PE
L1 L2 L3 PE
PE U V W
M
3 ~
Connect extensive
shield to the motor
housing!
L2 L3 PE
E 25
